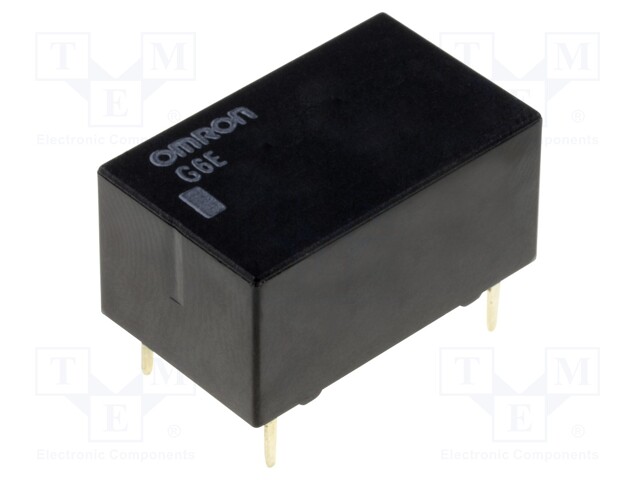

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 0.4A/125VAC; 2A/30VDC

Kordarv: 1.0
Minimum quantity: 1.0
Tootekood: G6E-134PL-ST-US 24VDC
Tootja: OMRON OCB
Tootja tootekood: G6E-134PL-ST-US 24VDC
  • Mounting
  • Operating temperature
  • Terminal pitch
  • Body dimensions
  • Switched voltage
  • Switched voltage
  • Coil resistance
  • Rated coil voltage
  • Contacts configuration
  • DC contacts rating @R
  • Contact resistance
  • AC contacts rating @R
  • Contact current max.
  • Relay variant
  • Type of relay
  • Coil power consumption
  • Relay series
  • Operate time
  • Release time
  • Coil current

6,77 € 6,77 € (KM-TA) 6.7700000000000005 EUR

6,77 €

Seda kombinatsiooni ei eksisteeri.

Lisa ostukorvi

Product downloads

Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 0.4A/125VAC; 2A/30VDC

Mounting PCB
Operating temperature -40...70°C
Terminal pitch 5.08mm
Body dimensions 16x10x8mm
Switched voltage ≤ 220V DC, ≤ 250V AC
Coil resistance 1.44kΩ
Rated coil voltage 24V DC
Contacts configuration SPDT
DC contacts rating @R 2A / 30V DC
Contact resistance 50mΩ
AC contacts rating @R 400mA / 125V AC
Contact current max. 3A
Relay variant miniature
Type of relay electromagnetic
Coil power consumption 400mW
Relay series G6E
Operate time 5ms
Release time 5ms
Coil current 16.7mA
