Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 5A/250VAC; 5A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: G6B-1114P-FD-US 24VDC
    Tootja: OMRON
    Tootja tootekood: G6B-1114P-FD-US 24VDC
    • Mounting
    • Operating temperature
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Relay series
    • Coil current

    14,49 € 14,49 € (KM-TA) 14.49 EUR

    14,49 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 5A/250VAC; 5A/30VDC

    Mounting PCB
    Operating temperature -25...70°C

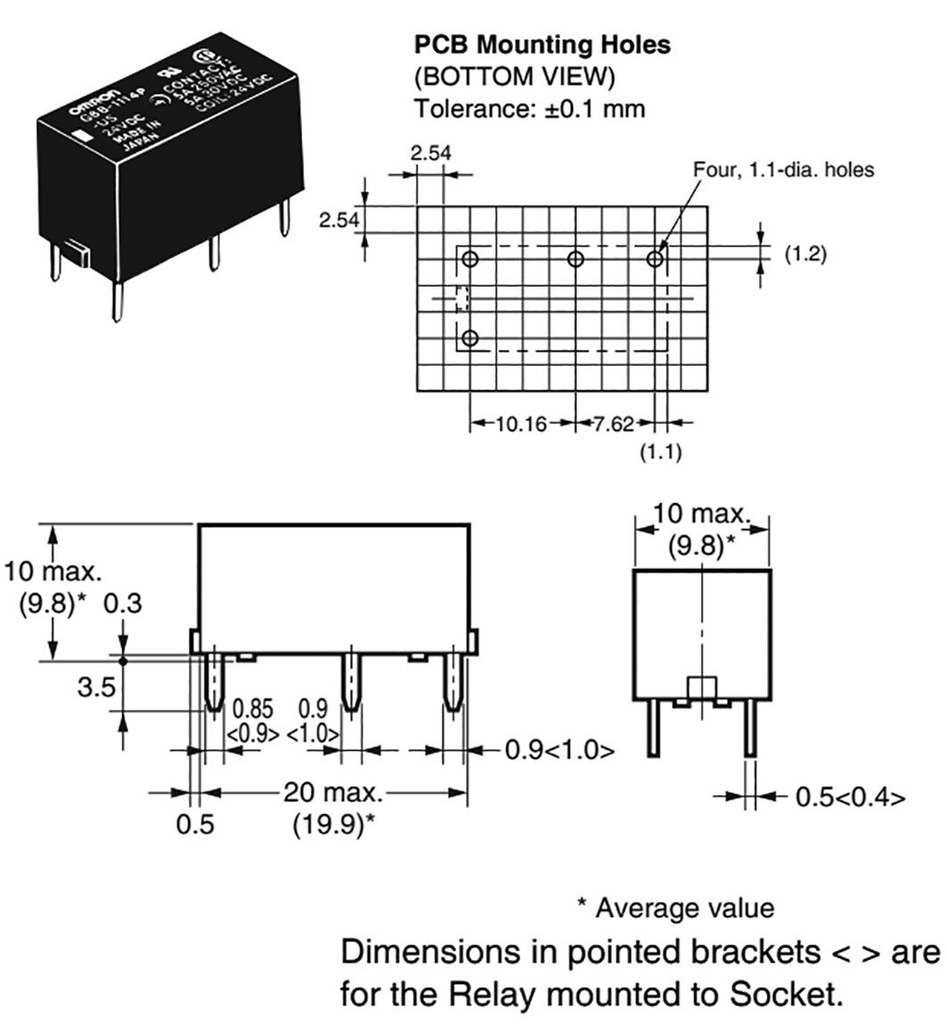

    Body dimensions 19.9x9.8x9.8mm
    Switched voltage ≤ 125V DC, ≤ 380V AC
    Coil resistance 2.88kΩ
    Rated coil voltage 24V DC

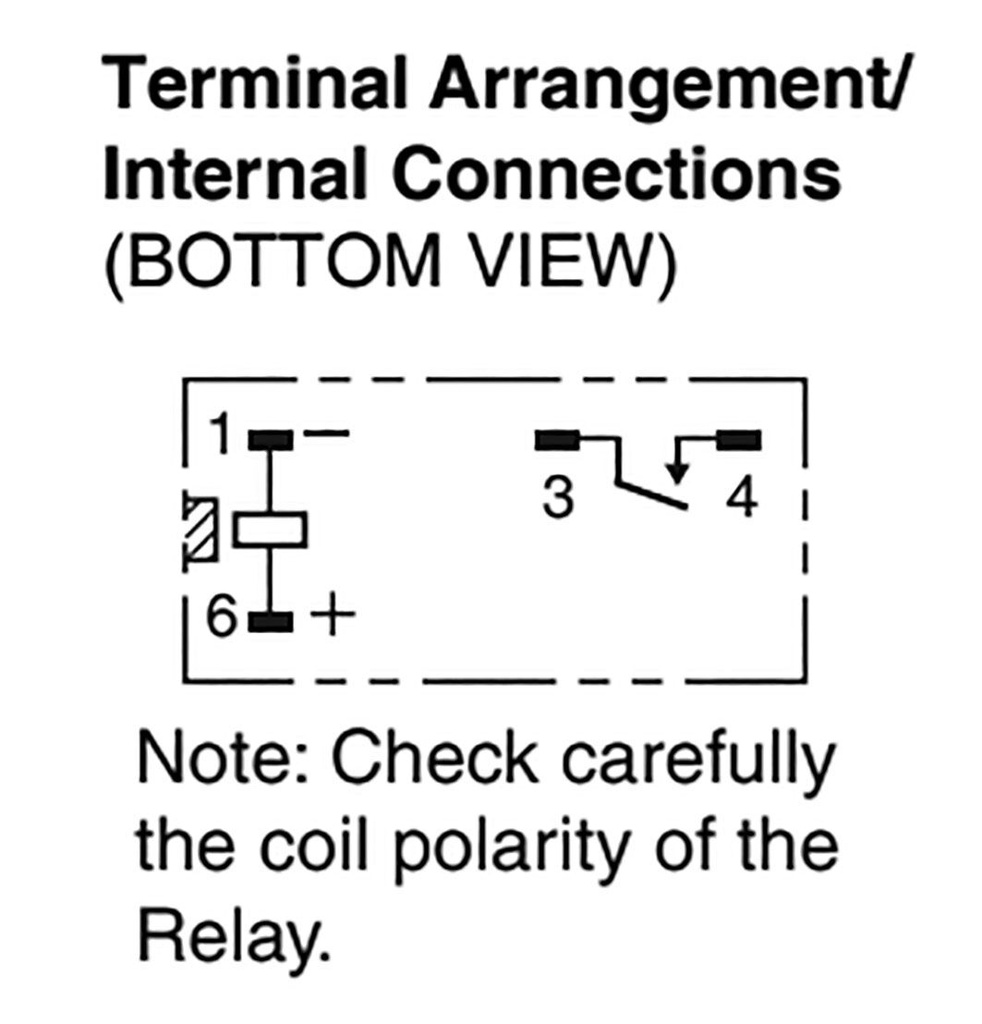

    Contacts configuration SPST-NO
    DC contacts rating @R 5A / 30V DC
    Contact resistance 30mΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Relay series G6B
    Coil current 8.3mA
