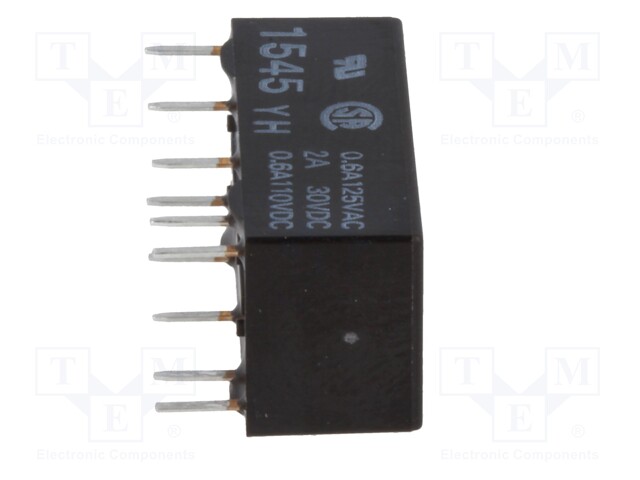

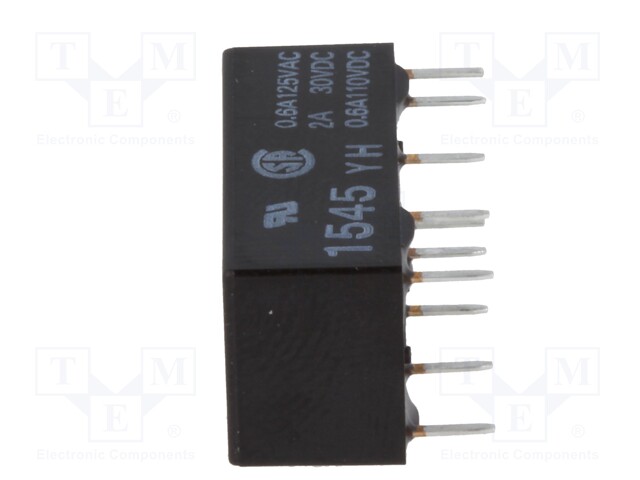

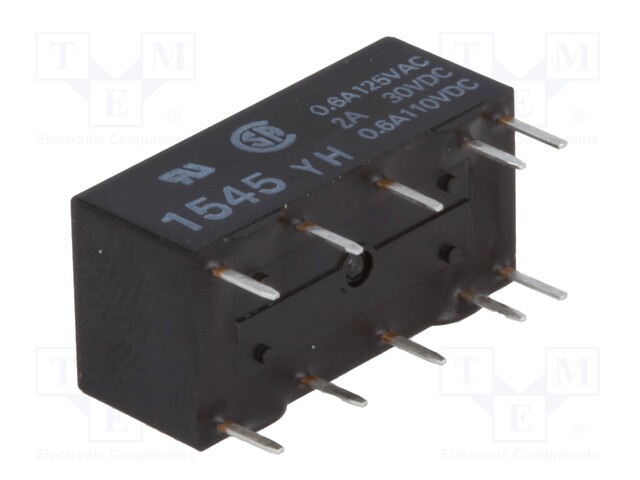

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 0.5A/125VAC; 2A/30VDC

Kordarv: 1.0
Minimum quantity: 1.0
Tootekood: G6AK-274P-ST-US 24VDC
Tootja: OMRON OCB
Tootja tootekood: G6AK-274P-ST-US 24VDC
  • Mounting
  • Operating temperature
  • Contact material
  • Terminal pitch
  • Body dimensions
  • Switched voltage
  • Switched voltage
  • Coil resistance
  • Rated coil voltage
  • Contacts configuration
  • DC contacts rating @R
  • Contact resistance
  • AC contacts rating @R
  • Contact current max.
  • Relay variant
  • Relay variant
  • Type of relay
  • Relay series
  • Operate time
  • Release time
  • Coil current

10,17 € 10,17 € (KM-TA) 10.17 EUR

10,17 €

Seda kombinatsiooni ei eksisteeri.

Lisa ostukorvi

Product downloads

Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 24VDC; 0.5A/125VAC; 2A/30VDC

Mounting PCB
Operating temperature -40...70°C
Contact material Ag
Terminal pitch 5mm
Body dimensions 20.2x10.1x8.4mm
Switched voltage ≤ 220V DC, ≤ 250V AC
Coil resistance 3.2kΩ
Rated coil voltage 24V DC
Contacts configuration DPDT
DC contacts rating @R 2A / 30V DC
Contact resistance 50mΩ
AC contacts rating @R 500mA / 125V AC
Contact current max. 2A
Relay variant bistable, miniature
Type of relay electromagnetic
Relay series G6A
Operate time 5ms
Release time 5ms
Coil current 7.5mA
