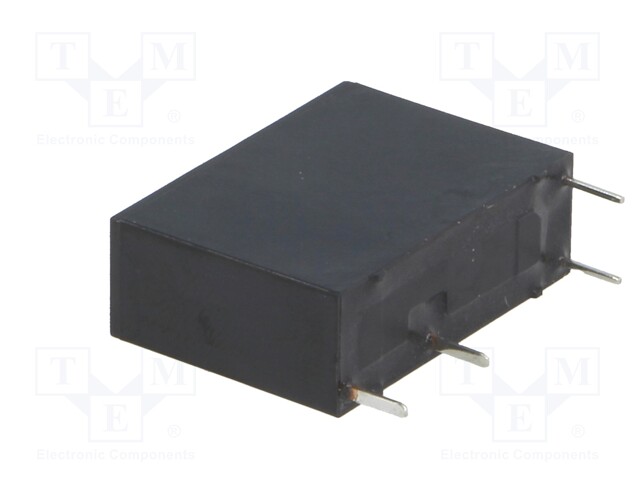

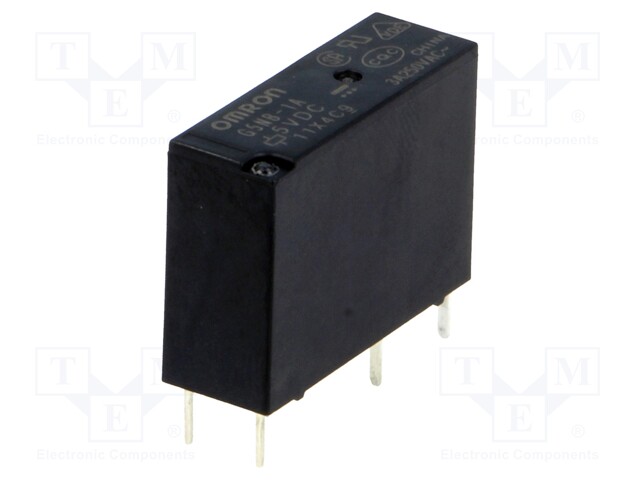

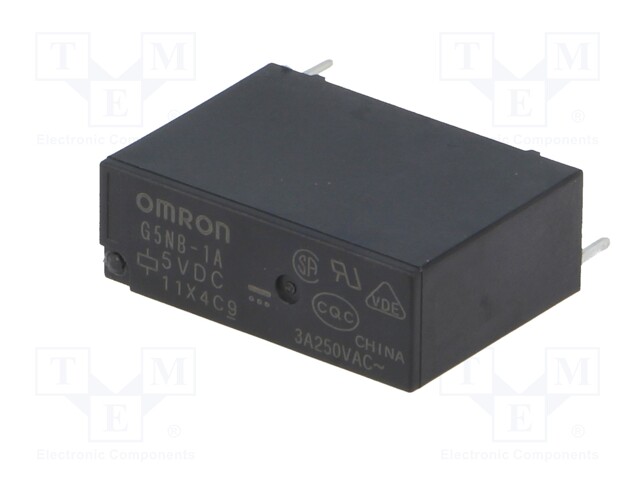

Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 3A/125VAC; 3A/30VDC

Kordarv: 1.0
Minimum quantity: 1.0
Tootekood: G5NB-1A 5VDC
Tootja: OMRON OCB
Tootja tootekood: G5NB-1A 5VDC
  • Mounting
  • Operating temperature
  • Terminal pitch
  • Body dimensions
  • Switched voltage
  • Switched voltage
  • Coil resistance
  • Rated coil voltage
  • Contacts configuration
  • DC contacts rating @R
  • Contact resistance
  • AC contacts rating @R
  • Enclosure description
  • Contact current max.
  • Relay variant
  • Type of relay
  • Coil power consumption
  • Relay series
  • Operate time
  • Release time
  • Coil current

2,51 € 2,51 € (KM-TA) 2.5100000000000002 EUR

2,51 €

Seda kombinatsiooni ei eksisteeri.

Lisa ostukorvi

Product downloads

Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 3A/125VAC; 3A/30VDC

Mounting PCB
Operating temperature -40...70°C
Terminal pitch 7mm
Body dimensions 20.5x7.2x15.3mm
Switched voltage ≤ 30V DC, ≤ 250V AC
Coil resistance 125Ω
Rated coil voltage 5V DC
Contacts configuration SPST-NO
DC contacts rating @R 3A / 30V DC
Contact resistance 100MΩ
AC contacts rating @R 3A / 125V AC
Enclosure description standard seal
Contact current max. 3A
Relay variant miniature
Type of relay electromagnetic
Coil power consumption 200mW
Relay series G5NB
Operate time 10ms
Release time 10ms
Coil current 40mA
