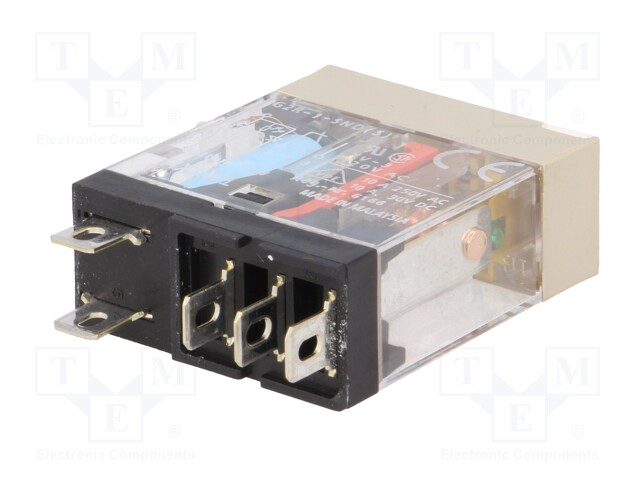

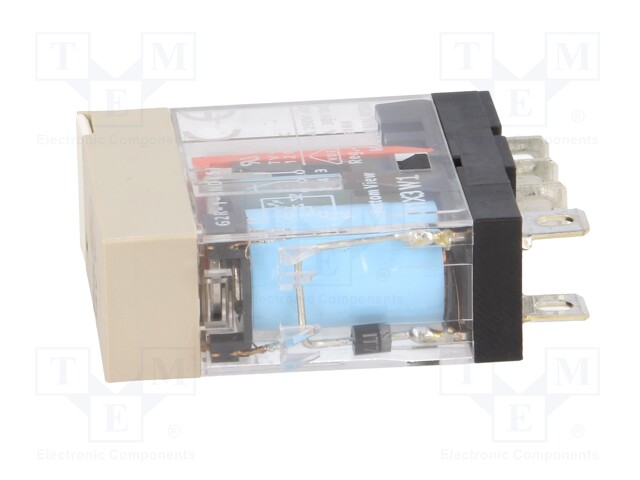

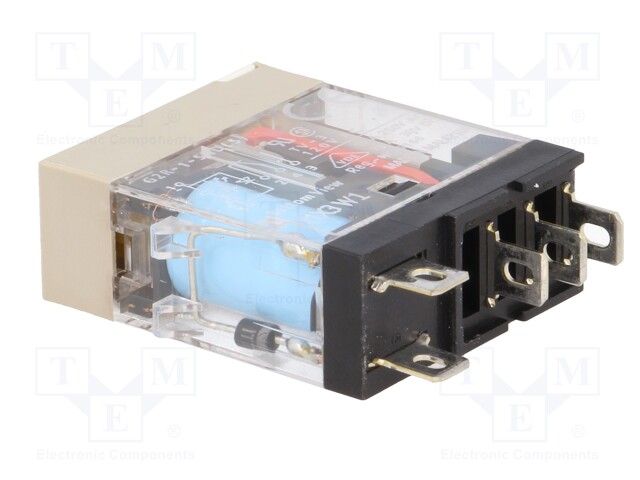

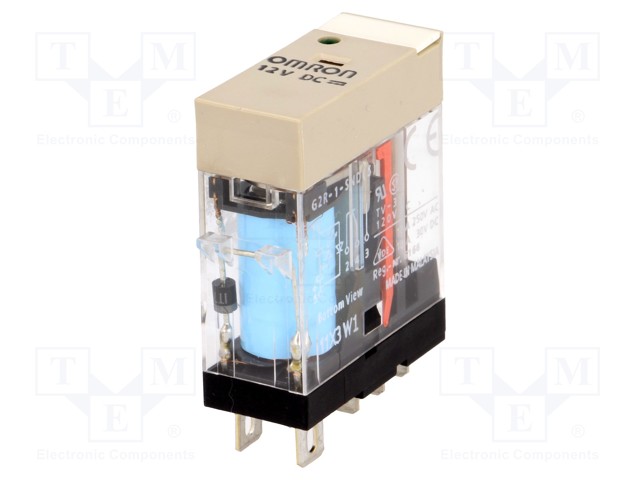

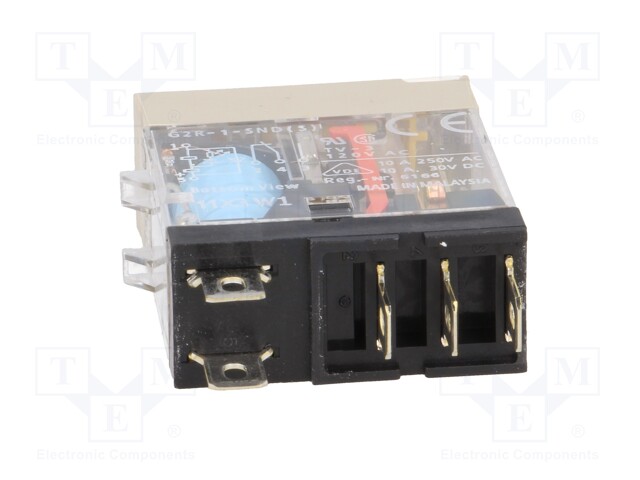

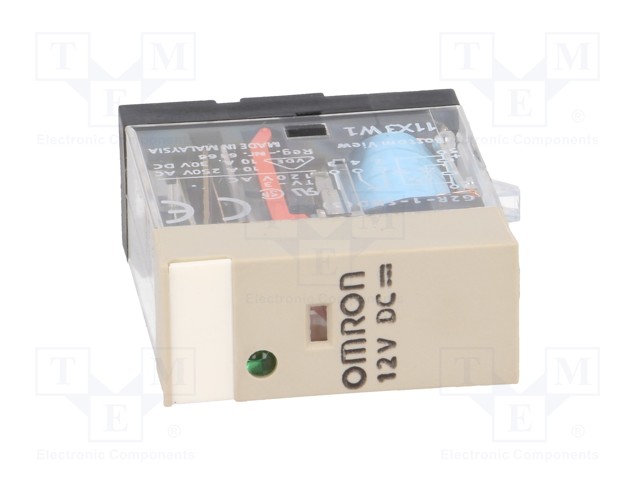

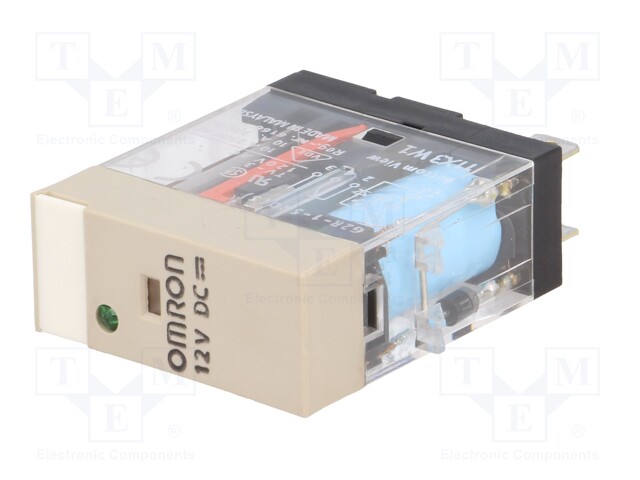

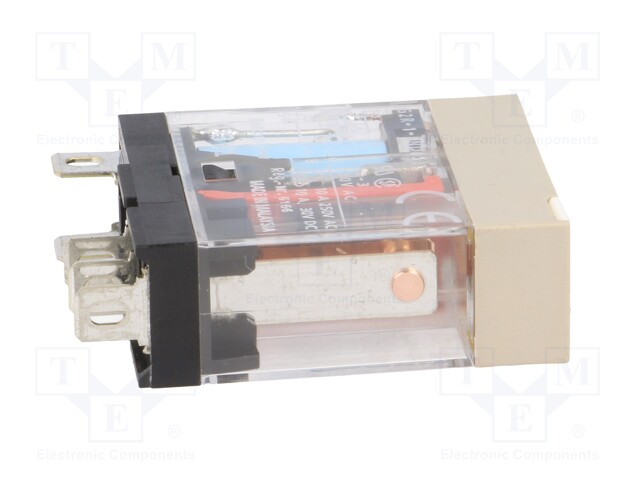

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 10A/250VAC; 10A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: G2R-1-SND 12VDC (S)
    Tootja: OMRON
    Tootja tootekood: G2R-1-SND 12VDC (S)
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Indication
    • Switching capacity
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time
    • Coil current
    • Optional equipment
    • Optional equipment

    11,45 € 11,45 € (KM-TA) 11.450000000000001 EUR

    11,45 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 12VDC; 10A/250VAC; 10A/30VDC

    Mounting socket
    Operating temperature -40...70°C
    Terminal pitch 5.2mm
    Body dimensions 29x13x35.5mm
    Switched voltage ≤ 125V DC, ≤ 380V AC
    Indication LED
    Switching capacity 300W, 2.5kVA
    Coil resistance 275Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 10A / 30V DC
    Contact resistance 30mΩ
    AC contacts rating @R 10A / 250V AC
    Contact current max. 10A
    Relay variant industrial, miniature
    Type of relay electromagnetic
    Coil power consumption 530mW
    Relay series G2R-1-S
    Operate time 15ms
    Release time 20ms
    Coil current 43.6mA
    Optional equipment LED indicator, overvoltage damping diode
