Relay: electromagnetic; DPDT; Ucoil: 5VDC; 0.3A/125VAC; 1A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: FTR-C1CA005G
    Tootja: FUJITSU
    Tootja tootekood: FTR-C1CA005G
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 5VDC; 0.3A/125VAC; 1A/30VDC

    Mounting THT
    Operating temperature -40...85°C
    Contact material AgPd/Au 0,2μm
    Terminal pitch 2.54mm

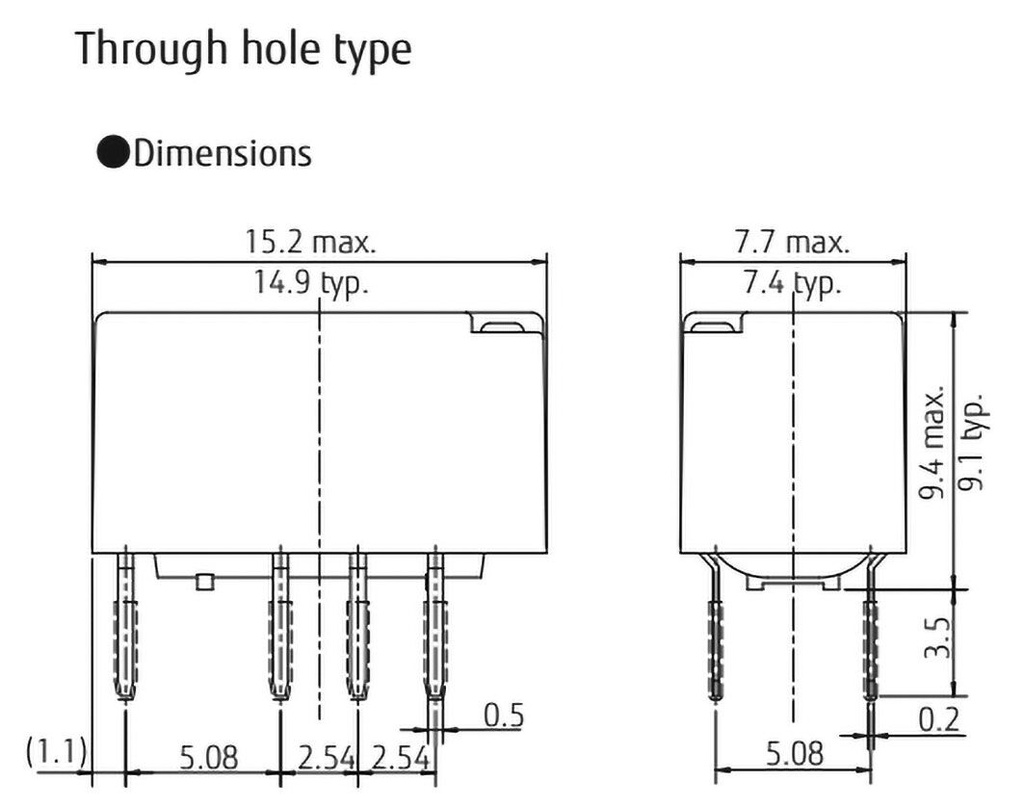

    Body dimensions 15.2x7.7x9.4mm
    Switched voltage ≤ 220V DC, ≤ 250V AC
    Coil resistance 89.3Ω
    Rated coil voltage 5V DC
    Contacts configuration DPDT
    DC contacts rating @R 1A / 30V DC
    Contact resistance 150mΩ
    AC contacts rating @R 300mA / 125V AC
    Contact current max. 2A
    Relay variant signal, subminiature
    Type of relay electromagnetic
    Coil power consumption 280mW
    Relay series FTR-C1
