Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 5A/125VAC; 5A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: FRS16NHA-S05-1 DC24V
    Tootja: FORWARD INDUSTRIAL CO.
    Tootja tootekood: FRS16NHA-S05-1 DC24V
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Relay series

    2,30 € 2,30 € (KM-TA) 2.3000000000000003 EUR

    2,30 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 5A/125VAC; 5A/30VDC

    Mounting PCB
    Operating temperature -40...85°C
    Contact material silver alloy
    Terminal pitch 2.5mm

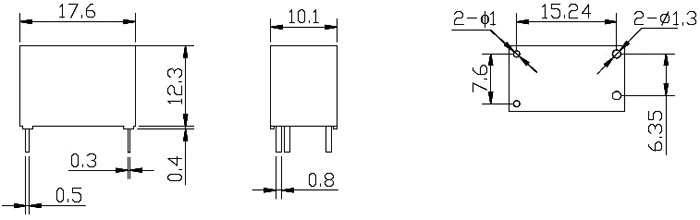

    Body dimensions 17.6x10.1x12.3mm
    Switched voltage ≤ 60V DC, ≤ 220V AC
    Coil resistance 2.8kΩ
    Rated coil voltage 24V DC

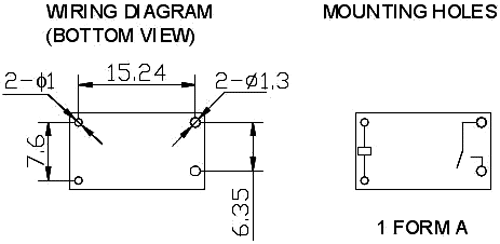

    Contacts configuration SPST-NO
    DC contacts rating @R 5A / 30V DC
    Contact resistance 50mΩ
    AC contacts rating @R 5A / 125V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 200mW
    Relay series FRS1
