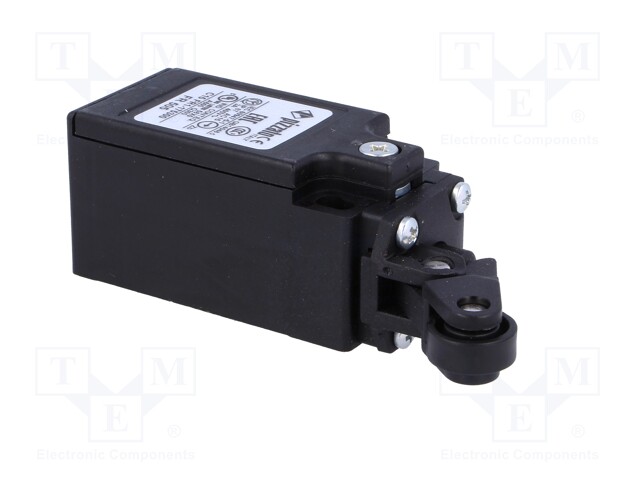

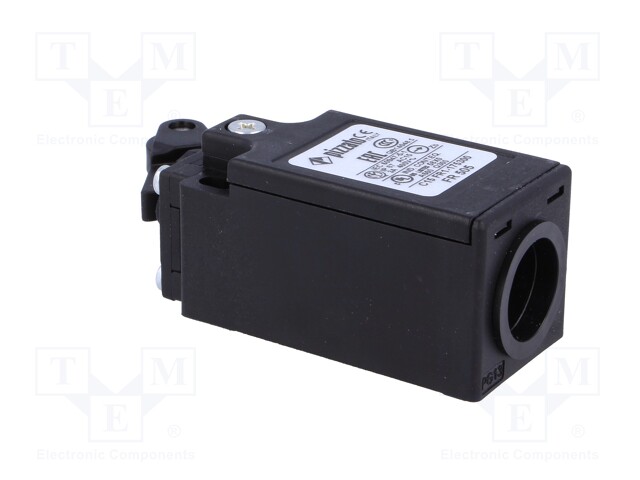

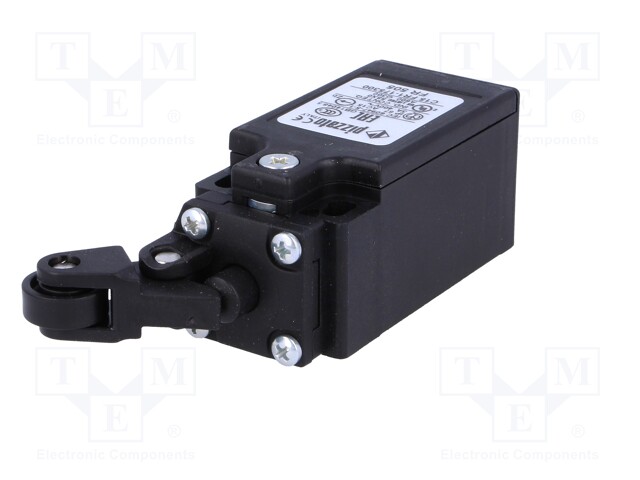

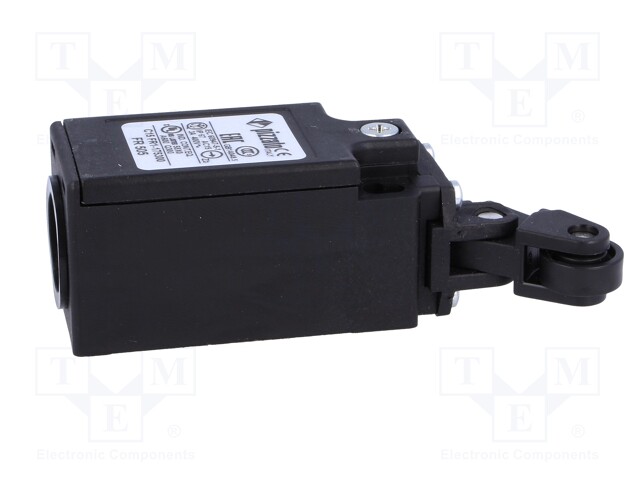

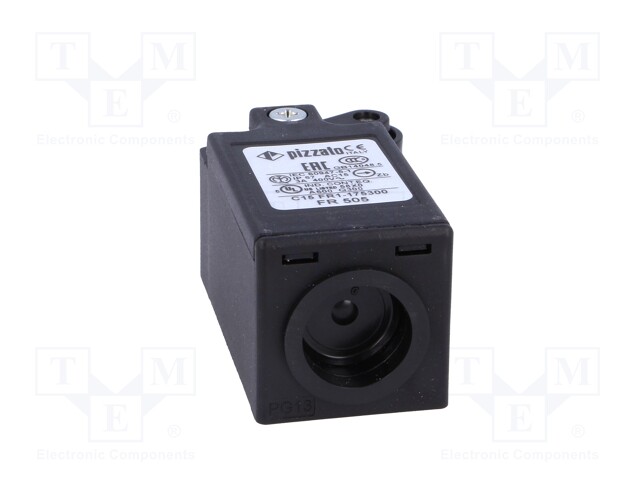

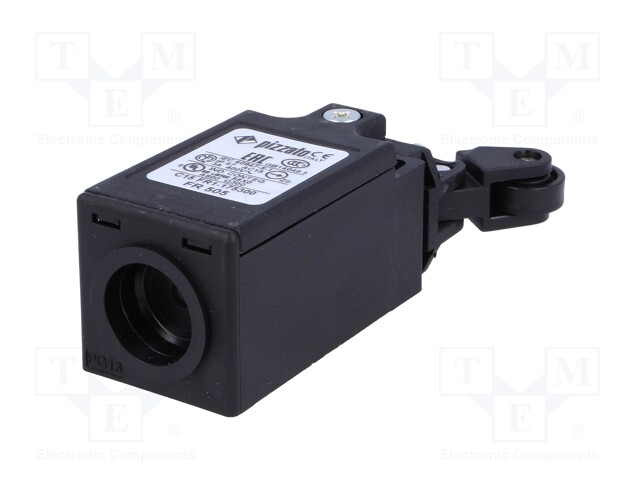

Limit switch; NO + NC; 10A; max.500VAC; max.250VDC; PG13,5; IP67

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: FR 505
    Tootja: PIZZATO ELETTRICA
    Tootja tootekood: FR 505
    • Operating temperature
    • IP rating
    • Switches features
    • Series
    • Body material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Output configuration
    • Type of sensor
    • Number of mounting holes
    • DC contacts rating @R
    • AC contacts rating @R
    • Connection
    • Contact current max.
    • Kind of actuator
    • Kind of actuator

    14,87 € 14,87 € (KM-TA) 14.870000000000001 EUR

    14,87 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Limit switch; NO + NC; 10A; max.500VAC; max.250VDC; PG13,5; IP67

    Operating temperature -25...80°C
    IP rating IP67
    Switches features snap action contacts
    Series FR
    Body material plastic
    Body dimensions 51.5x30.8x30.8mm
    Switched voltage ≤ 250V DC, ≤ 500V AC
    Output configuration NO + NC
    Type of sensor limit switch
    Number of mounting holes 2
    DC contacts rating @R 6A / 24V DC
    AC contacts rating @R 6A / 250V AC
    Connection PG13,5
    Contact current max. 10A
    Kind of actuator angled lever with roller, rotary lever with roller
