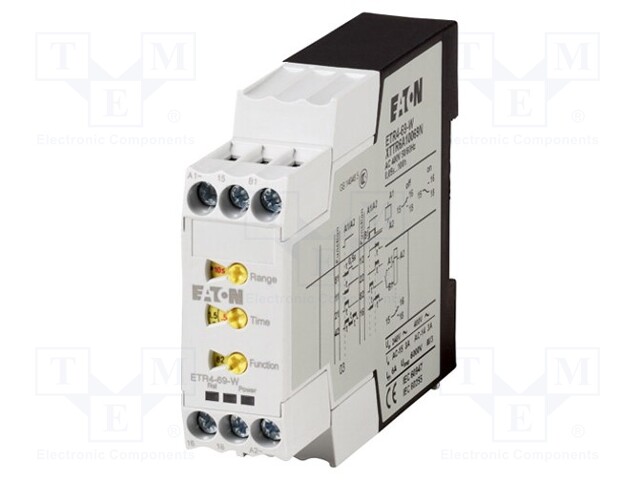

Timer; 0,05s÷100h; SPDT; 250VAC/3A; Usup: 400VAC; -20÷60°C; PIN: 6
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
ETR4-69-W
Tootja: EATON ELECTRIC
Tootja tootekood: ETR4-69-W
Product downloads
Spetsifikatsioon tootele Timer; 0,05s÷100h; SPDT; 250VAC/3A; Usup: 400VAC; -20÷60°C; PIN: 6
| Mounting | for DIN rail mounting |
| Supply voltage | 400V AC |
| Operating temperature | -20...60°C |
| IP rating | IP20 |
| Number of pins | 6 |
| Type of module | timer |
| Body dimensions | 22.5x78x100mm |
| Kind of output | SPDT |
| Indication | LED |
| Electrical connection | screw terminals |
| Counting range | 0,05s...100h |
| Counter operation modes | delayed switching off, delayed switching on, ON and OFF delay, ON for the set interval, symmetrical cyclical operation pause first, symmetrical cyclical operation pulse first, with the control contact S |
| number of operation modes | 8 |
| The additional control inputs | START |
