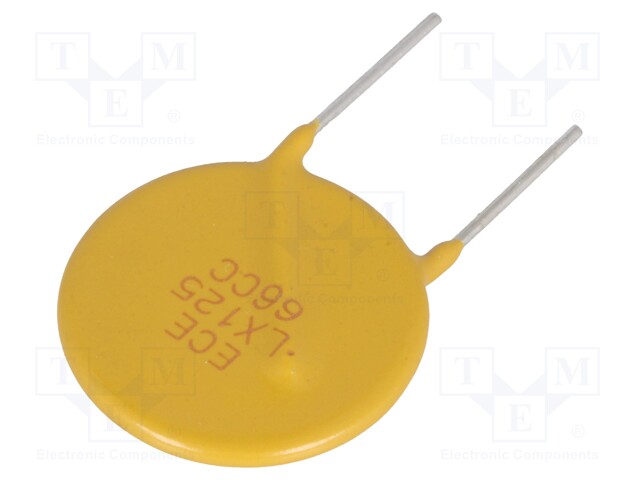

Fuse: PTC polymer; 1.25A; Package: bag; Ø0.81x7.6mm

    Kordarv: 1.0
    Minimum quantity: 5.0
    Tootekood: ERF-LX125V2
    Tootja: ECE
    Tootja tootekood: ERF-LX125V2
    • Power
    • Operating temperature
    • Kind of package
    • D dimension
    • Current rating
    • Leads dimensions
    • Max surge current
    • B dimension
    • A dimension
    • C dimension
    • E dimension
    • Max resistance
    • Type of fuse
    • Switched current
    • Min. resistance

    1,29 € 1,29 € (KM-TA) 1.29 EUR

    1,29 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Fuse: PTC polymer; 1.25A; Package: bag; Ø0.81x7.6mm

    Power 3.3W
    Operating temperature -40...85°C
    Kind of package bag
    D dimension 7.6mm
    Current rating 1.25A
    Leads dimensions Ø0.81x7.6mm
    Max surge current 12.5A

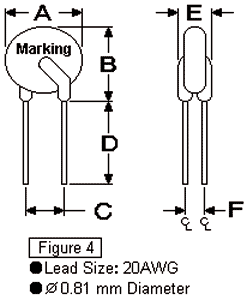

    B dimension 27.4mm
    A dimension 21.2mm
    C dimension 10.2mm
    E dimension 5.3mm
    Max resistance 440mΩ
    Type of fuse PTC polymer
    Switched current 2.5A
    Min. resistance 170mΩ
