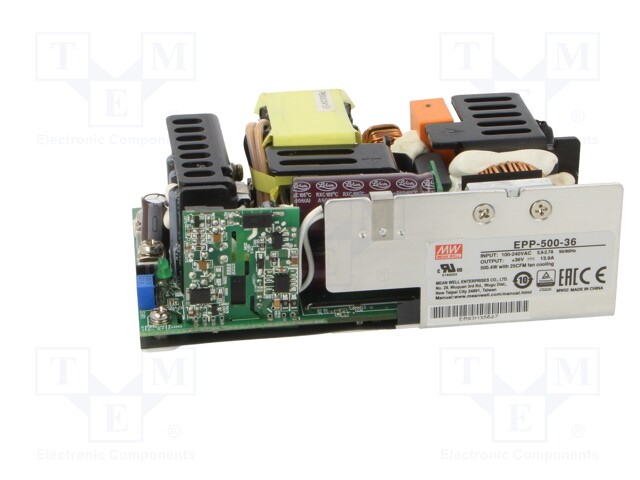

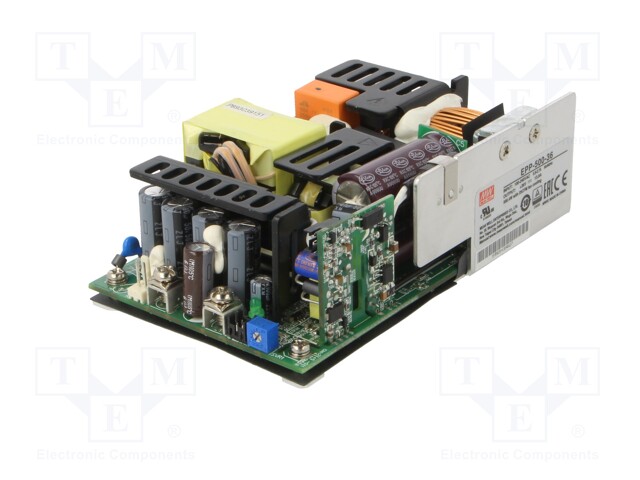

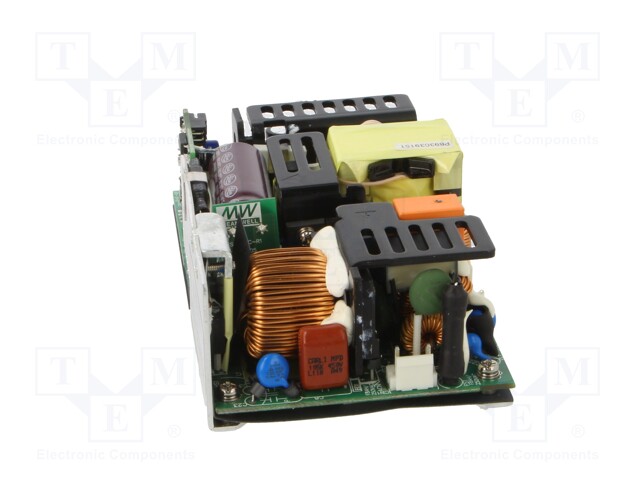

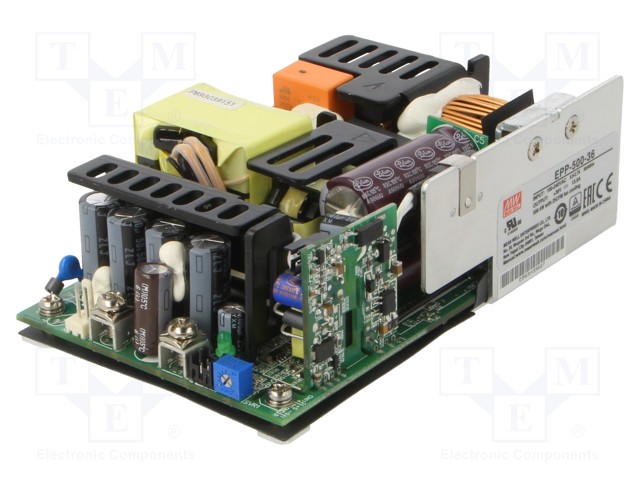

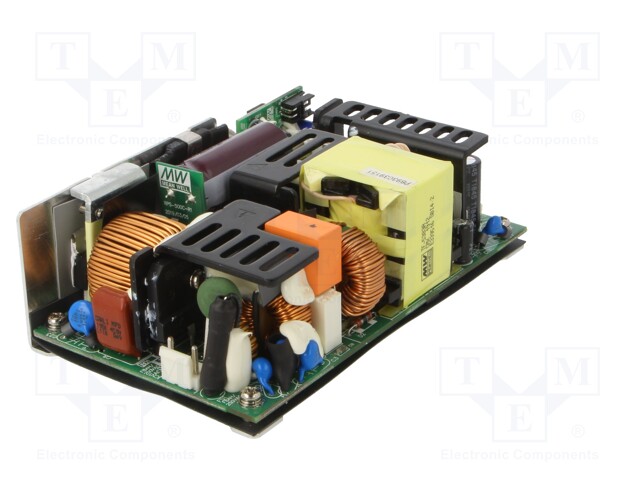

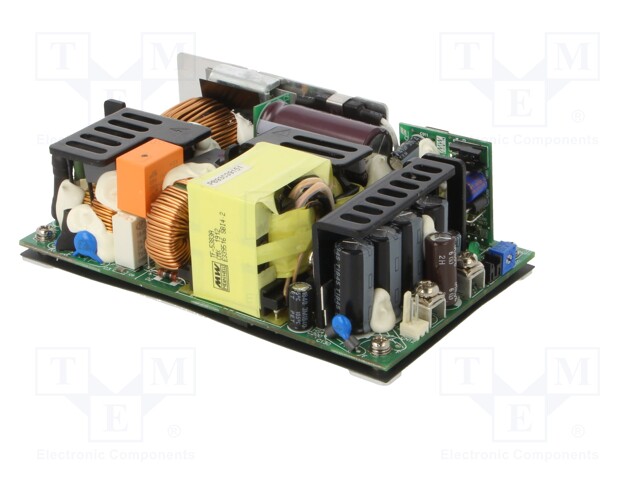

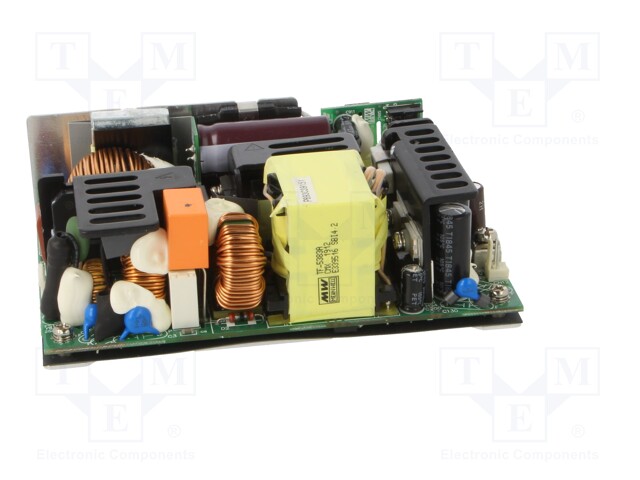

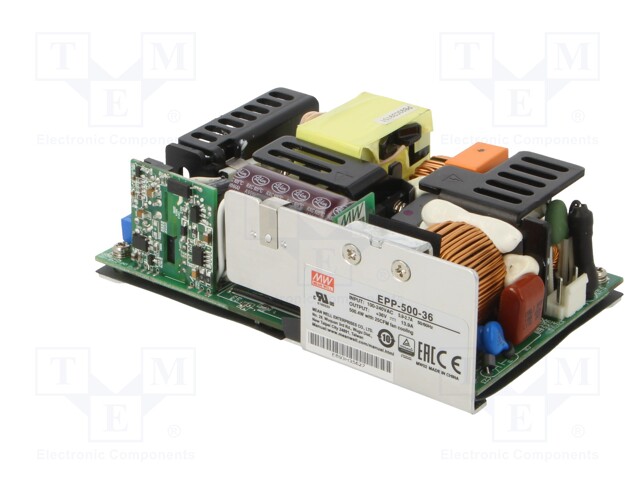

Power supply: switched-mode; 500W; 127÷370VDC; 90÷264VAC; OUT: 1

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: EPP-500-36
    Tootja: MEAN WELL
    Tootja tootekood: EPP-500-36
    • Supply voltage
    • Supply voltage
    • Power
    • Operating temperature
    • Protection
    • Protection
    • Protection
    • Protection
    • Type of power supply
    • Series
    • Maximum current
    • Body dimensions
    • Output voltage
    • Additional functions
    • Additional functions
    • Additional functions
    • Efficiency
    • Number of outputs
    • Electrical connection
    • Electrical connection
    • Kind of power supply

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Power supply: switched-mode; 500W; 127÷370VDC; 90÷264VAC; OUT: 1

    Supply voltage 90...264V AC, 127...370V DC
    Power 500W
    Operating temperature -30...70°C
    Protection overheating, anti-overload, anti-overvoltage, short circuit protection
    Type of power supply switched-mode
    Series EPP-500
    Maximum current 13.9A
    Body dimensions 127x76.2x40mm
    Output voltage 36V DC
    Additional functions active PFC, auxiliary DC output 12V/500mA, auxiliary standby output 5V DC
    Efficiency 94%
    Number of outputs 1
    Electrical connection plug with 3,96mm pitch, screw terminals
    Kind of power supply open
