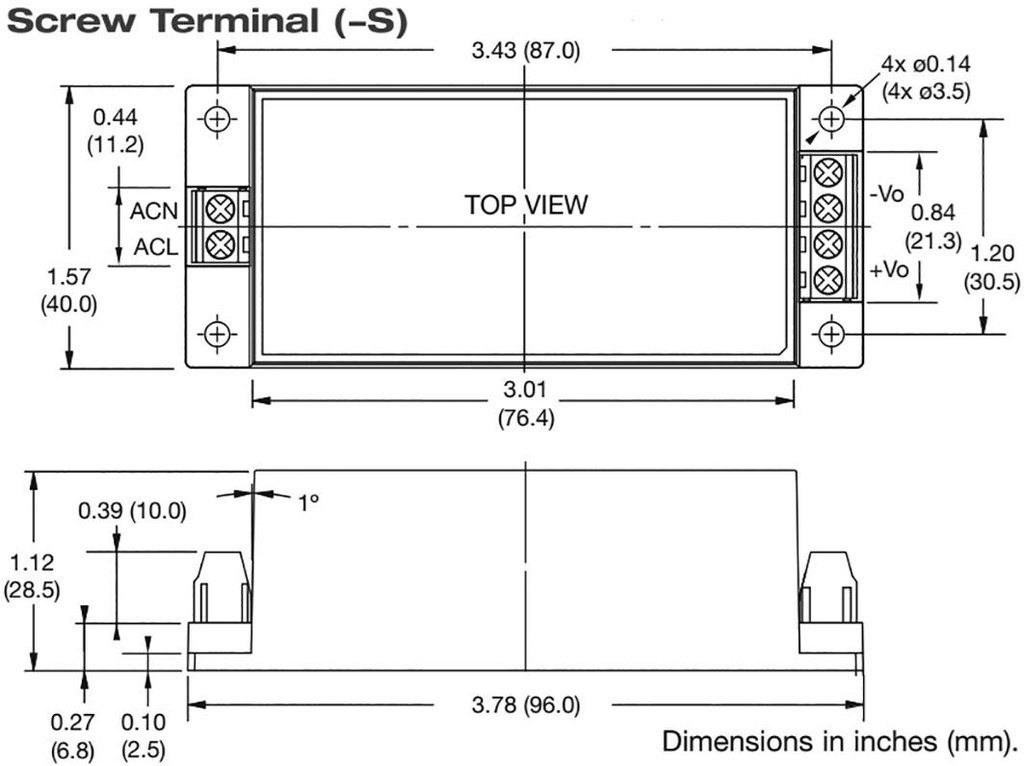

Power supply: switched-mode; 30W; 12VDC; 2.5A; OUT: 1; 87x40x28.5mm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: EML30US12-S
    Tootja: XP POWER
    Tootja tootekood: EML30US12-S
    • Output current
    • Mounting
    • Supply voltage
    • Supply voltage
    • Power
    • Operating temperature
    • Protection
    • Protection
    • Type of power supply
    • Application
    • Output voltage
    • Insulation voltage
    • Efficiency
    • Number of outputs
    • Electrical connection
    • Switching frequency

    65,86 € 65,86 € (KM-TA) 65.86 EUR

    65,86 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Power supply: switched-mode; 30W; 12VDC; 2.5A; OUT: 1; 87x40x28.5mm

    Output current 2.5A
    Mounting mounting holes
    Supply voltage 120...370V DC, 85...264V AC
    Power 30W
    Operating temperature -20...70°C
    Protection anti-overvoltage, short circuit protection
    Type of power supply switched-mode
    Application medical applications
    Output voltage 12V DC
    Insulation voltage 4kV
    Efficiency 79%
    Number of outputs 1
    Electrical connection screw terminals
    Switching frequency 70kHz
