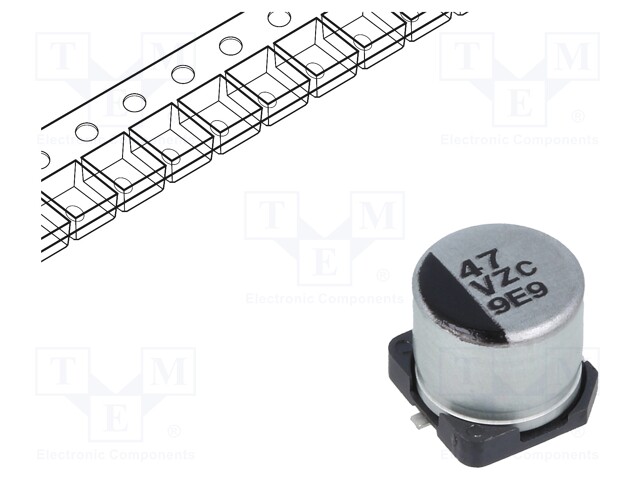

Capacitor: hybrid; 47uF; 35VDC; ESR: 60mΩ; ZC; SMD; ±20%; -55÷125°C

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: EEHZC1V470P
    Tootja: PANASONIC
    Tootja tootekood: EEHZC1V470P
    • Mounting
    • Operating voltage
    • Operating temperature
    • Tolerance
    • Operating current
    • Body dimensions
    • Capacitance
    • Type of capacitor
    • Capacitors series
    • Conform to the norm
    • Capacitors features
    • Capacitors features
    • Service life
    • ESR value

    1,59 € 1,59 € (KM-TA) 1.59 EUR

    1,59 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Capacitor: hybrid; 47uF; 35VDC; ESR: 60mΩ; ZC; SMD; ±20%; -55÷125°C

    Mounting SMD
    Operating voltage 35V DC
    Operating temperature -55...125°C
    Tolerance ±20%
    Operating current 900mA
    Body dimensions Ø6.3x5.8mm
    Capacitance 47µF
    Type of capacitor hybrid
    Capacitors series ZC
    Conform to the norm AEC-Q200
    Capacitors features high temperature reflow, long life
    Service life 4000h
    ESR value 60mΩ
