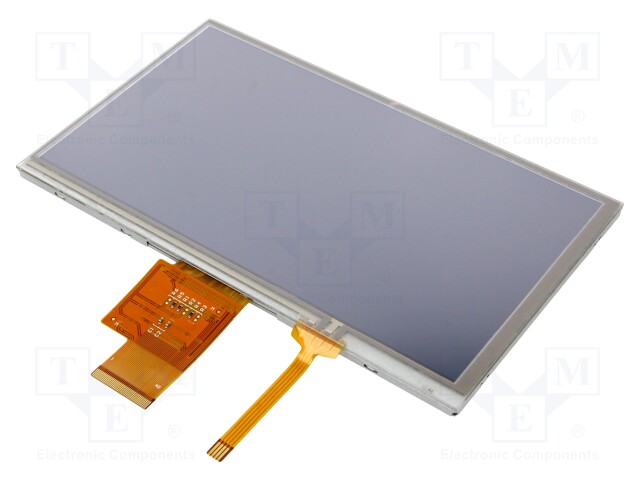

Display: TFT

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: DEM 1024600M3 VMH-PW-N (A-TOUCH)
    Tootja: DISPLAY ELEKTRONIK
    Tootja tootekood: DEM 1024600M3 VMH-PW-N (A-TOUCH)
    • Supply voltage
    • Interface
    • Number of pins
    • Dimensions
    • Type of pin configuration
    • Display resolution
    • Screen size
    • Kind of display
    • Backlight colour
    • Illumination
    • Contrast
    • Window dimensions (H x W)
    • Kind of controller
    • Type of display
    • Ribbon cable pitch

    52,70 € 52,70 € (KM-TA) 52.7 EUR

    52,70 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Display: TFT

    Supply voltage 3...3.6V DC
    Interface RGB
    Number of pins 40
    Dimensions 164.8x99.8x5mm
    Type of pin configuration 1x40
    Display resolution 1024x600
    Screen size 7"
    Kind of display graphical
    Backlight colour white
    Illumination LED
    Contrast 800:1
    Window dimensions (H x W) 154.21x85.92mm
    Kind of controller EK73215 + EK79001H
    Type of display TFT
    Ribbon cable pitch 500µm
