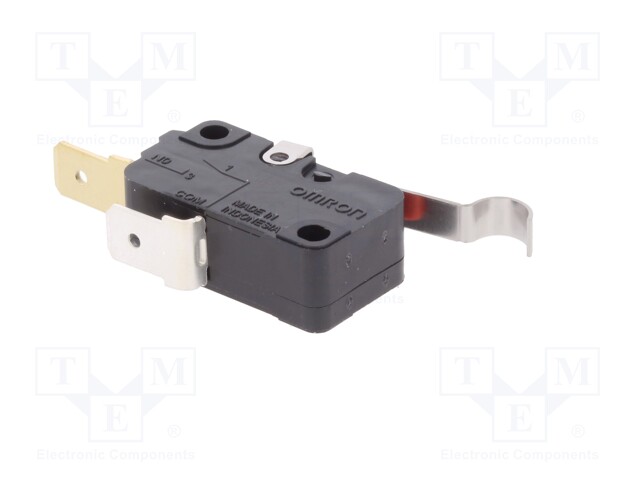

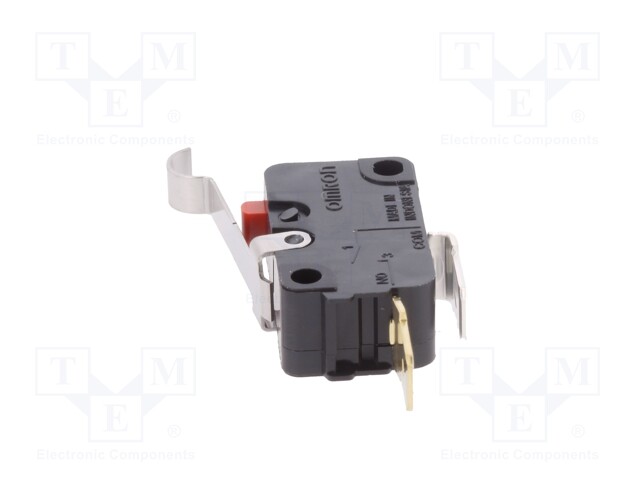

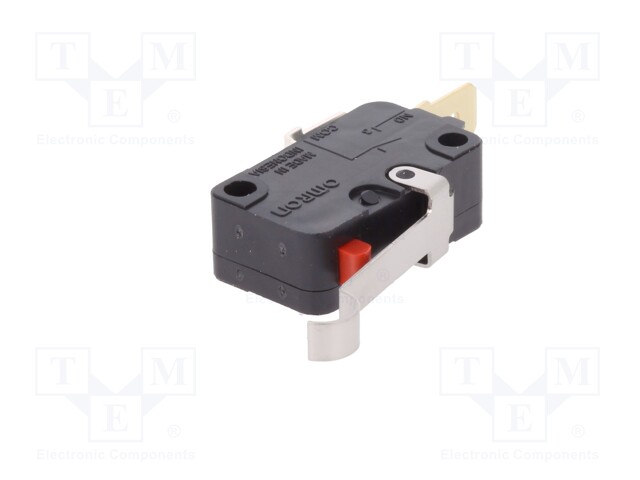

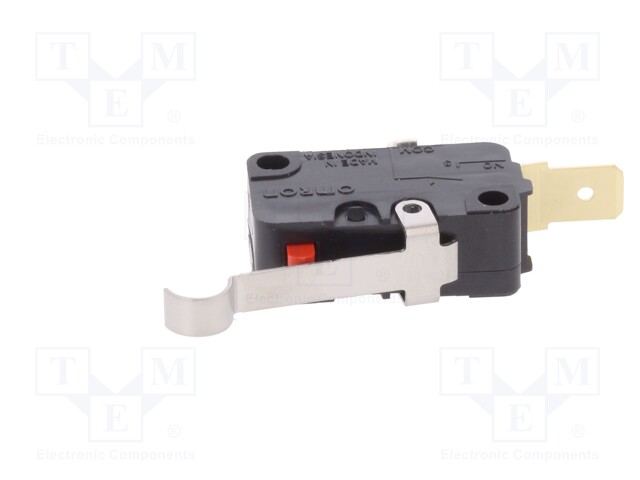

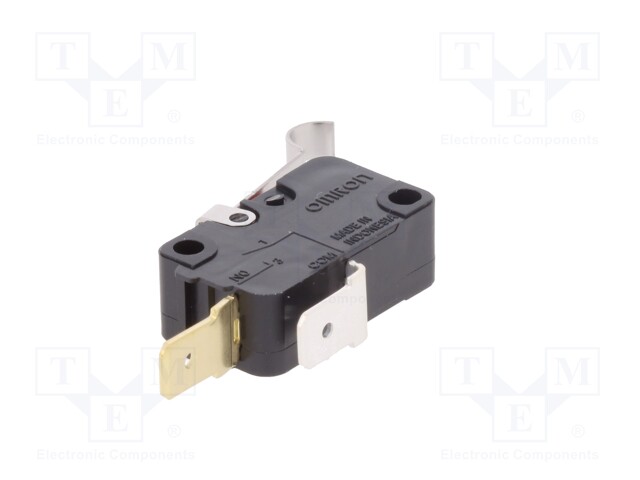

Microswitch SNAP ACTION; with lever with roller simulation

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: D3V-164M-3C5
    Tootja: OMRON OCB
    Tootja tootekood: D3V-164M-3C5
    • Operating temperature
    • IP rating
    • Type of switch
    • Switches features
    • Contact plating
    • Number of positions
    • Leads
    • Max. contact resistance
    • Body dimensions
    • Mechanical durability
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Lever length

    1,96 € 1,96 € (KM-TA) 1.96 EUR

    1,96 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Microswitch SNAP ACTION; with lever with roller simulation

    Operating temperature -25...105°C
    IP rating IP40
    Type of switch microswitch SNAP ACTION
    Switches features with lever with roller simulation
    Contact plating silver plated
    Number of positions 2
    Leads 6,3x0,8mm connectors
    Max. contact resistance 30mΩ
    Body dimensions 27.8x10.3x15.9mm
    Mechanical durability 10000000cycles
    Electrical life 100000cycles
    Contacts configuration SPST-NO
    DC contacts rating @R 10A / 30V DC
    AC contacts rating @R 16A / 250V AC
    Switching method OFF-(ON)
    Stable positions number 1
    Operating Force 1.96N
    Lever length 24.1mm
