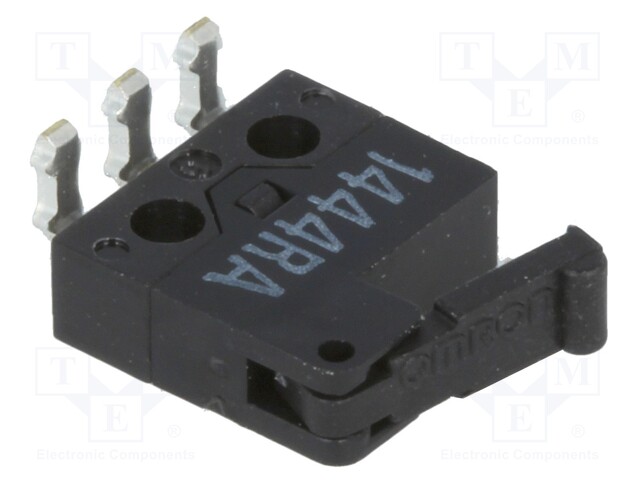

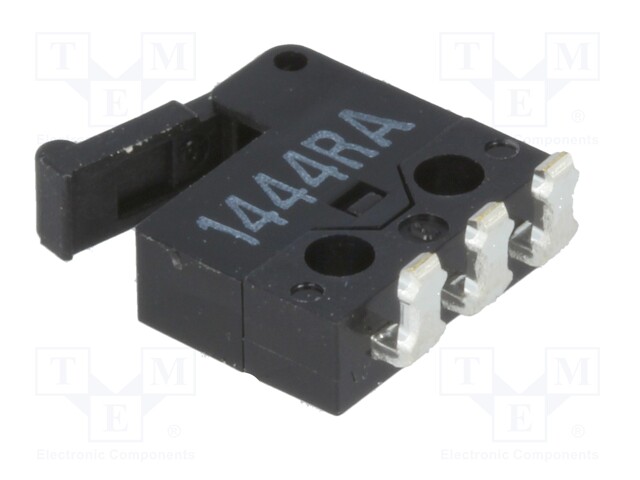

Microswitch SNAP ACTION; with lever with roller simulation

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: D2MQ-4L-1-R
    Tootja: OMRON OCB
    Tootja tootekood: D2MQ-4L-1-R
    • Operating temperature
    • IP rating
    • Type of switch
    • Switches features
    • Number of positions
    • Leads
    • Leads
    • Leads
    • Terminal pitch
    • Body dimensions
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Lever length

    1,78 € 1,78 € (KM-TA) 1.78 EUR

    1,78 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Microswitch SNAP ACTION; with lever with roller simulation

    Operating temperature -15...70°C
    IP rating IP40
    Type of switch microswitch SNAP ACTION
    Switches features with lever with roller simulation
    Number of positions 2
    Leads angled, for PCB, right
    Terminal pitch 2.5mm
    Body dimensions 8.2x2.7x6.5mm
    Contacts configuration SPDT
    DC contacts rating @R 500mA / 30V DC
    Switching method ON-(ON)
    Stable positions number 1
    Operating Force 390mN
    Lever length 6.3mm
