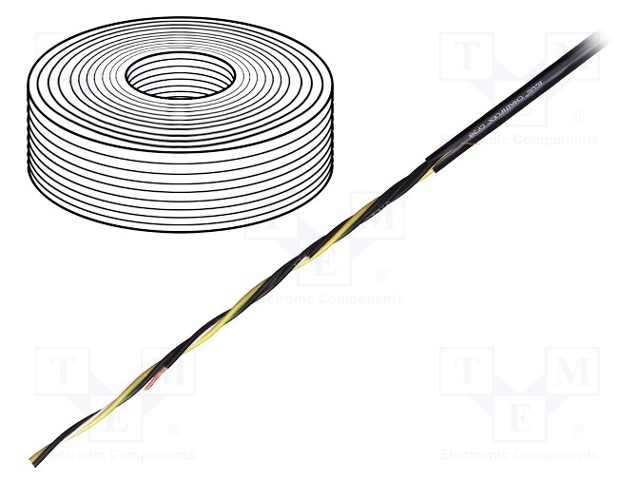

Wire: motor; chainflex® CF30; 4G1,5mm2; PVC; black; stranded; Cu

    Kordarv: 5.0
    Minimum quantity: 5.0
    Tootekood: CF30.15.04
    Tootja: igus
    Tootja tootekood: CF30.15.04
    • Operating temperature
    • Core structure
    • Kind of core
    • Cable features
    • Number of cores
    • Resistance to
    • Resistance to
    • Wire insulation material
    • Kind of wire
    • Rated voltage
    • Rated voltage
    • Cable external diameter
    • Insulation colour
    • Cable application
    • Cable application
    • Cable application
    • Cable application
    • Type of wire
    • Shield structure
    • Core marking
    • Earth core
    • CPR standard

    7,19 € 7,19 € (KM-TA) 7.19 EUR

    7,19 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Wire: motor; chainflex® CF30; 4G1,5mm2; PVC; black; stranded; Cu

    Operating temperature -5...70°C
    Core structure stranded
    Kind of core Cu
    Cable features self-supporting
    Number of cores 4
    Resistance to torsion, UV rays
    Wire insulation material PVC
    Kind of wire chainflex® CF30
    Rated voltage 600V, 1kV
    Cable external diameter 8.5mm
    Insulation colour black
    Cable application industrial applications, motors power 0,6/1 kV, outdoor, power chain
    Type of wire motor
    Shield structure unshielded
    Core marking black, numbered + ground wire
    Earth core yellow-green earth core
    CPR standard no classification
