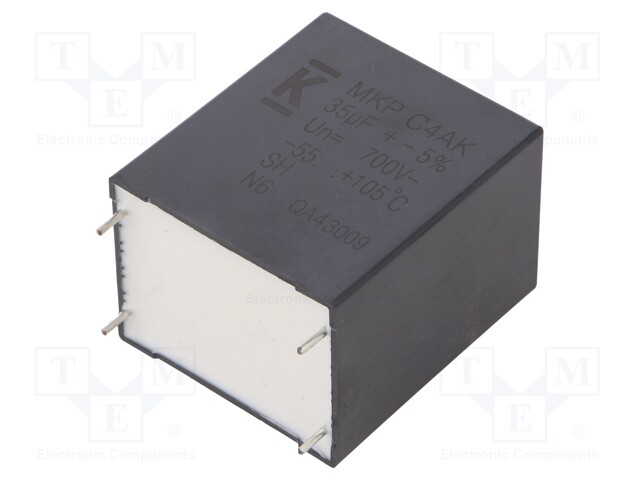

Capacitor: polypropylene; DC-Link; 35uF; ESR: 3mΩ; THT; ±5%; 700VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: C4AKJBW5350A3PJ
    Tootja: KEMET
    Tootja tootekood: C4AKJBW5350A3PJ
    • Mounting
    • Max. operating current
    • Operating temperature
    • Tolerance
    • Max. forward impulse current
    • Terminal pitch
    • Max. operating voltage
    • Capacitance
    • Kind of capacitor
    • Type of capacitor
    • ESR value
    • Pulse resistance

    20,65 € 20,65 € (KM-TA) 20.650000000000002 EUR

    20,65 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Capacitor: polypropylene; DC-Link; 35uF; ESR: 3mΩ; THT; ±5%; 700VDC

    Mounting THT
    Max. operating current 23A
    Operating temperature -55...135°C
    Tolerance ±5%
    Max. forward impulse current 700A
    Terminal pitch 37.5mm
    Max. operating voltage 700V DC
    Capacitance 35µF
    Kind of capacitor DC-Link
    Type of capacitor polypropylene
    ESR value 3mΩ
    Pulse resistance 20V/μs
