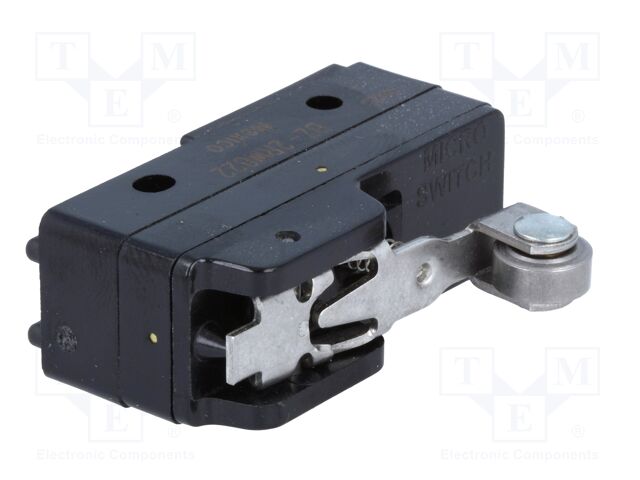

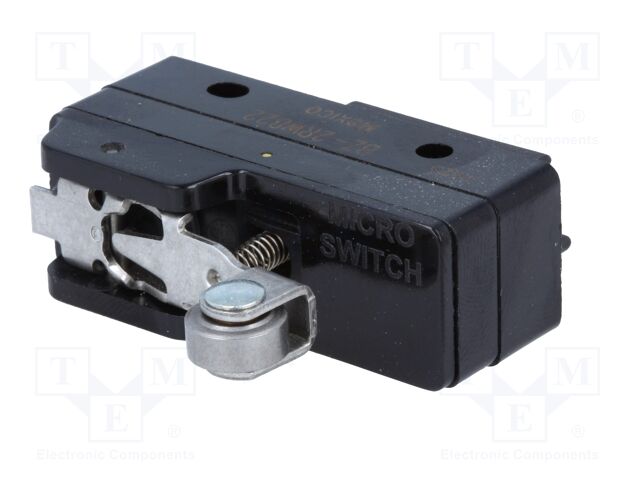

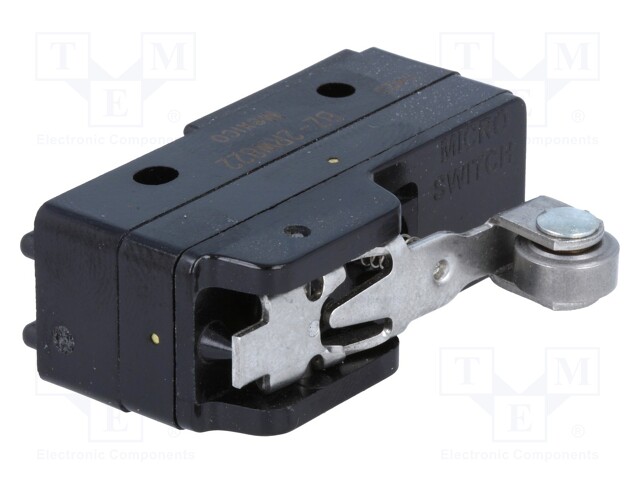

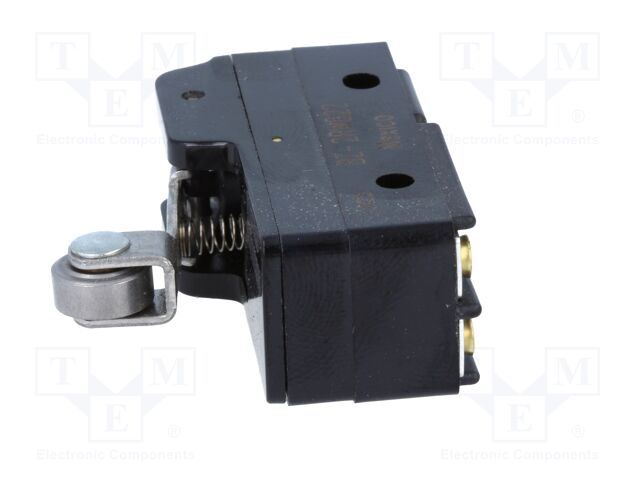

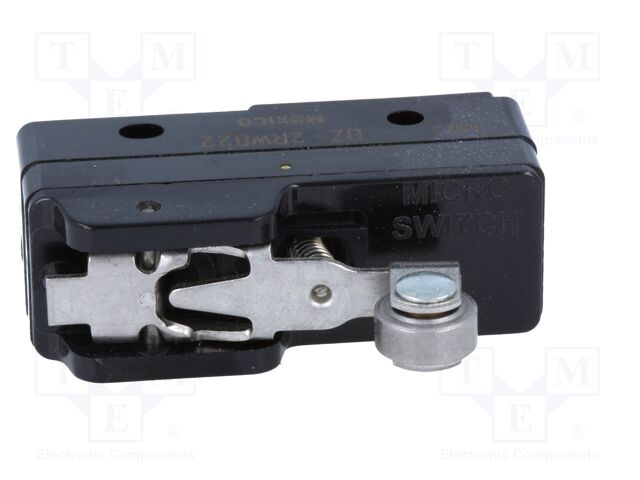

Microswitch SNAP ACTION; SPDT; 15A/250VAC; Rcont max: 15mΩ; Pos: 2

    Kordarv: 100.0
    Minimum quantity: 200.0
    Tootekood: BZ-2RW822
    Tootja: HONEYWELL
    Tootja tootekood: BZ-2RW822
    • Operating temperature
    • IP rating
    • Type of switch
    • Switches features
    • Number of positions
    • Leads
    • Max. contact resistance
    • Body dimensions
    • Mechanical durability
    • Min. insulation resistance
    • Electrical life
    • Contacts configuration
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Lever length

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Microswitch SNAP ACTION; SPDT; 15A/250VAC; Rcont max: 15mΩ; Pos: 2

    Operating temperature -55...85°C
    IP rating IP40
    Type of switch microswitch SNAP ACTION
    Switches features with lever (with roller)
    Number of positions 2
    Leads screw
    Max. contact resistance 15mΩ
    Body dimensions 49.3x17.5x24.1mm
    Mechanical durability 20000000cycles
    Min. insulation resistance 100GΩ
    Electrical life 100000cycles
    Contacts configuration SPDT
    AC contacts rating @R 15A / 250V AC
    Switching method ON-(ON)
    Stable positions number 1
    Operating Force 970mN
    Lever length 26.2mm
