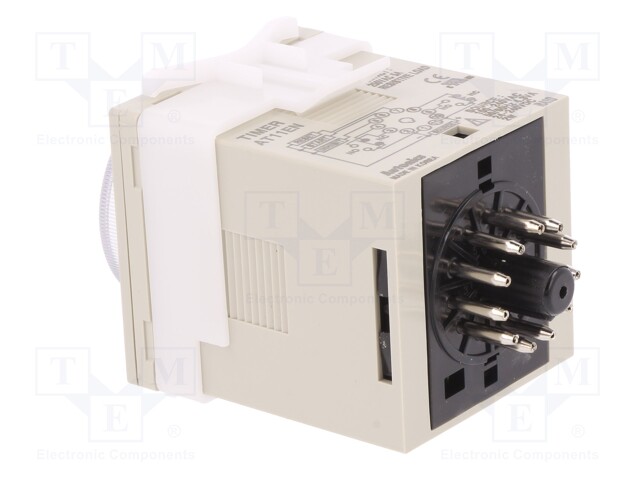

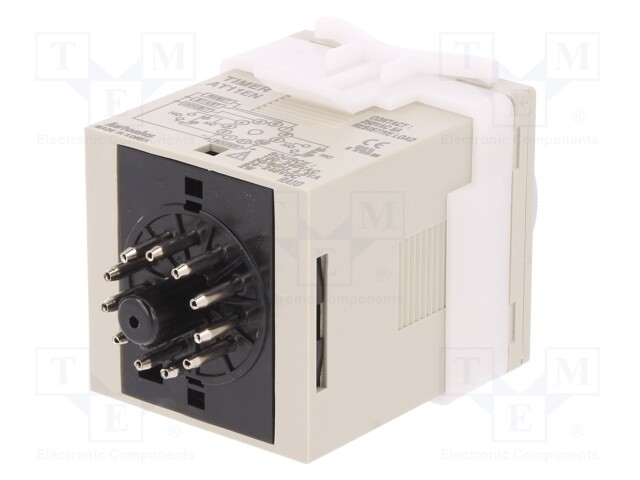

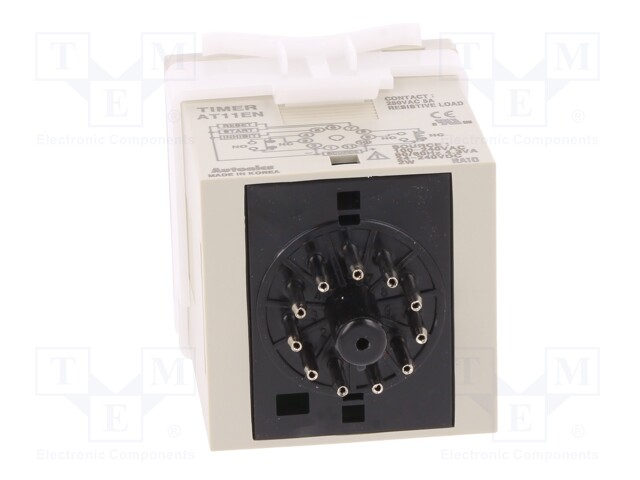

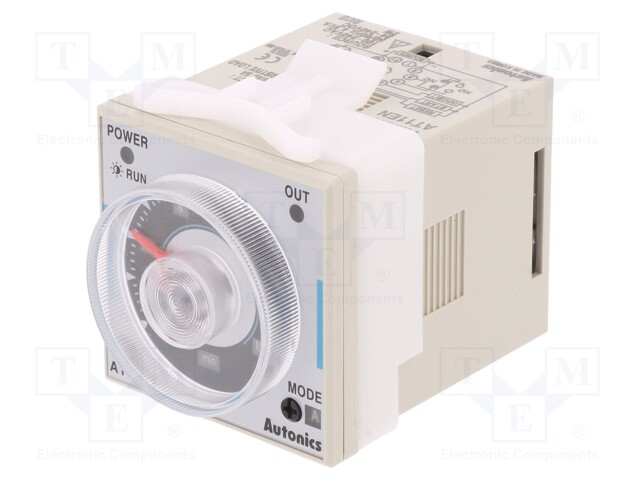

Timer; 0,05s÷100h; SPDT + SPDT; 250VAC/5A,30VDC/5A; 100÷240VAC
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
AT11EN
Tootja: AUTONICS
Tootja tootekood: AT11EN
Product downloads
Spetsifikatsioon tootele Timer; 0,05s÷100h; SPDT + SPDT; 250VAC/5A,30VDC/5A; 100÷240VAC
| Mounting | on panel, socket |
| Supply voltage | 24...240V DC, 100...240V AC |
| Operating temperature | -10...55°C |
| IP rating | IP20 |
| Number of pins | 11 |
| Type of module | timer |
| Mounting hole diameter | 45x45mm |
| Body dimensions | 48x48x79.5mm |
| Kind of output | SPDT + SPDT |
| Electrical connection | round socket |
| Counting range | 0,05s...100h |
| Counter operation modes | delayed switching off, delayed switching on, ON and OFF delay, with the control contact S |
| number of operation modes | 6 |
| The additional control inputs | INHIBIT, RESET, START |
