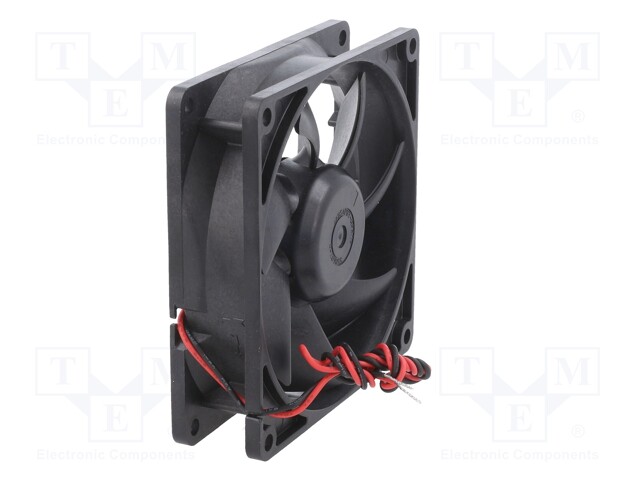

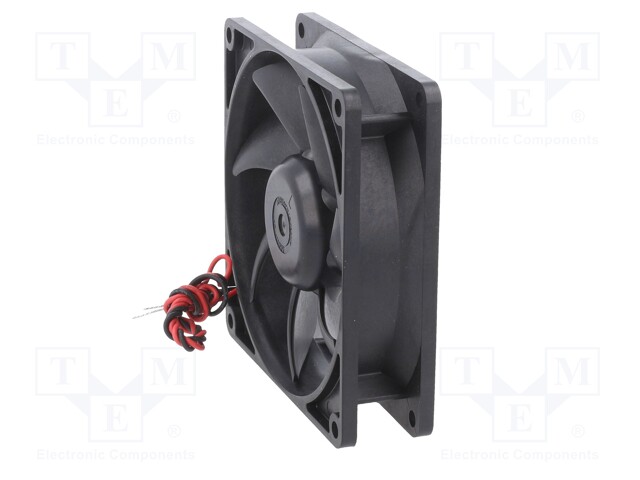

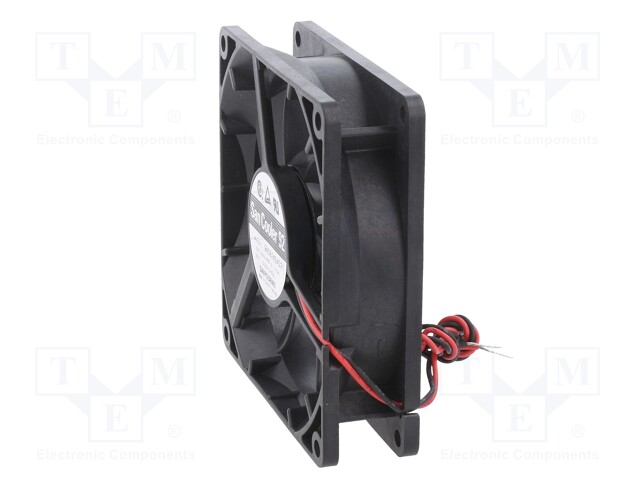

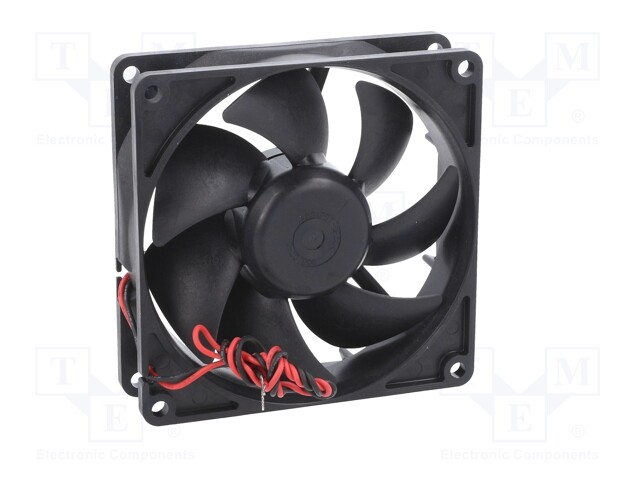

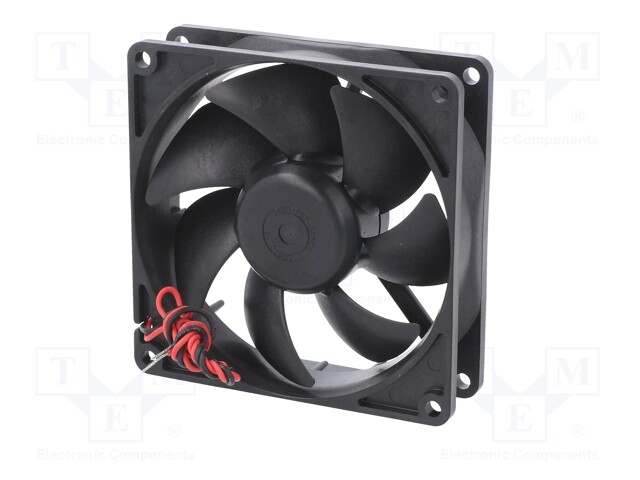

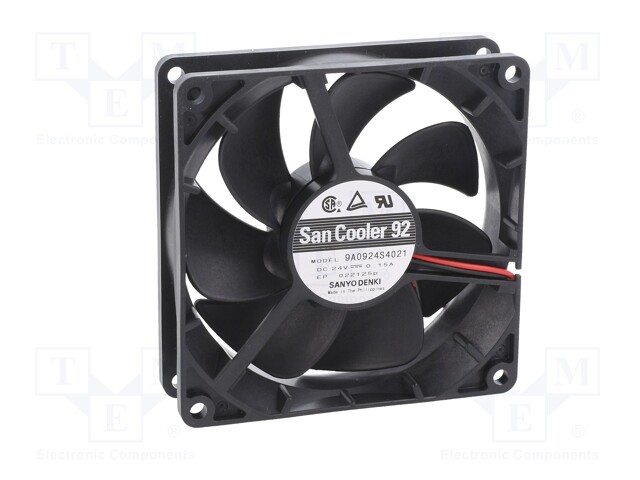

Fan: DC; axial; 24VDC; 92x92x25mm; 99.6m3/h; 39dBA; ball bearing

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 9A0924S4021
    Tootja: SANYO DENKI
    Tootja tootekood: 9A0924S4021
    • Supply voltage
    • Operating voltage
    • Operating temperature
    • Enclosure material
    • Leads
    • Flammability rating
    • Cable length
    • Current rating
    • Power consumption
    • Additional functions
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Type of fan
    • Noise level

    13,97 € 13,97 € (KM-TA) 13.97 EUR

    13,97 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Fan: DC; axial; 24VDC; 92x92x25mm; 99.6m3/h; 39dBA; ball bearing

    Supply voltage 24V DC
    Operating voltage 12...27.6V DC
    Operating temperature -20...70°C
    Enclosure material plastic
    Leads 3 leads
    Flammability rating UL94V-0
    Cable length 300mm
    Current rating 150mA
    Power consumption 3.6W
    Additional functions lock sensor
    Fan dimensions 92x92x25mm
    Kind of Bearing ball bearing
    Min. insulation resistance 10MΩ
    Impeller material plastic
    Kind of fan axial
    Type of fan DC
    Noise level 39dBA
