Plug; 4mm banana; 16A; 60VDC; blue; with 4mm transversal socket

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 930058102-1
    Tootja: HIRSCHMANN T&M
    Tootja tootekood: 930058102
    • Mounting
    • Operating temperature
    • Connector
    • Colour
    • Contact plating
    • Type of connector
    • Contact material
    • Max. contact resistance
    • Current rating
    • Rated voltage
    • Connector variant
    • Connector variant
    • Max cable section
    • Connection
    • Maximum length

    1,82 € 1,82 € (KM-TA) 1.82 EUR

    1,82 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Plug; 4mm banana; 16A; 60VDC; blue; with 4mm transversal socket

    Mounting on cable
    Operating temperature -25...70°C
    Connector plug
    Colour blue
    Contact plating nickel plated
    Type of connector 4mm banana
    Contact material brass
    Max. contact resistance 3mΩ
    Current rating 16A
    Rated voltage 60V DC
    Connector variant with 4mm transversal socket, non-insulated
    Max cable section 1.5mm<sup>2</sup>
    Connection screw terminal

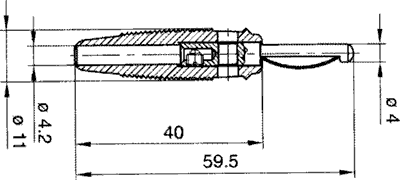

    Maximum length 59.5mm
