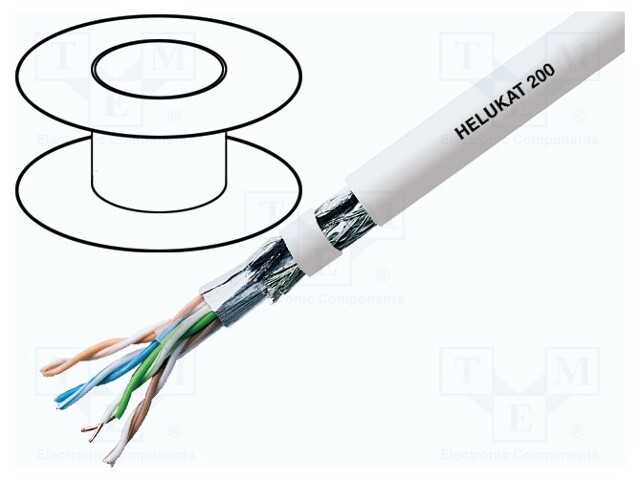

Wire; HELUKAT® 200,SF/UTP; 5e; stranded; Cu; 4x2x26AWG; PUR; grey

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 800068
    Tootja: HELUKABEL
    Tootja tootekood: 800068
    • Operating temperature
    • Core structure
    • Kind of core
    • Cable features
    • Number of cores
    • Resistance to
    • Wire insulation material
    • Ethernet category
    • Kind of wire
    • Kind of wire
    • Cable external diameter
    • Insulation colour
    • Cable application
    • Cable application
    • Type of wire
    • No. of pairs
    • Shield structure
    • Shield structure
    • Core marking
    • Earth core
    • CPR standard

    4,79 € 4,79 € (KM-TA) 4.79 EUR

    4,79 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Wire; HELUKAT® 200,SF/UTP; 5e; stranded; Cu; 4x2x26AWG; PUR; grey

    Operating temperature -40...80°C
    Core structure stranded
    Kind of core Cu
    Cable features twisted pair conductors
    Number of cores 8
    Resistance to most of oils
    Wire insulation material PUR
    Ethernet category Cat 5e
    Kind of wire HELUKAT® 200, SF/UTP
    Cable external diameter 5.7mm
    Insulation colour grey
    Cable application LAN, industrial Ethernet
    Type of wire data transmission
    No. of pairs 4
    Shield structure braid made of copper wires, aluminium foil
    Core marking colours with colour repetition
    Earth core without earth core
    CPR standard no classification
