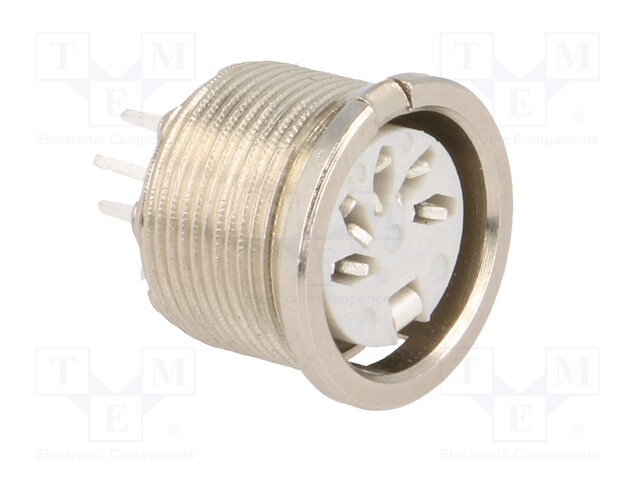

Socket; DIN; female; PIN: 5; Layout: 180°; THT; 34V; 2A; silver plated

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 690-0500
    Tootja: DELTRON
    Tootja tootekood: 690-0500
    • Operating temperature
    • Electrical mounting
    • Connector
    • Kind of connector
    • Contact plating
    • Type of connector
    • Number of pins
    • Max. contact resistance
    • Current rating
    • Type of pin configuration
    • Rated voltage
    • Body coating

    5,12 € 5,12 € (KM-TA) 5.12 EUR

    5,12 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Socket; DIN; female; PIN: 5; Layout: 180°; THT; 34V; 2A; silver plated

    Operating temperature -25...70°C
    Electrical mounting THT
    Connector socket
    Kind of connector female
    Contact plating silver plated
    Type of connector DIN
    Number of pins 5
    Max. contact resistance 10mΩ
    Current rating 2A
    Type of pin configuration 180°
    Rated voltage 34V
    Body coating nickel plated
