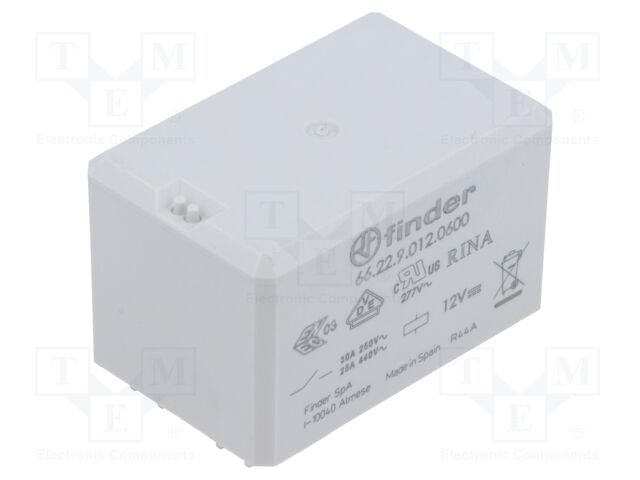

Relay: electromagnetic power

Kordarv: 1.0
Minimum quantity: 1.0
Tootekood: 66.22.9.012.0600
Tootja: FINDER
Tootja tootekood: 66.22.9.012.0600
  • Mounting
  • Operating temperature
  • Leads
  • Contact material
  • Body dimensions
  • Switched voltage
  • Switched voltage
  • Coil resistance
  • Rated coil voltage
  • Contacts configuration
  • DC contacts rating @R
  • AC contacts rating @R
  • Contact current max.
  • Relay variant
  • Coil power consumption
  • Relay series
  • Coil current

0,00 € 0,00 € (KM-TA) 0.0 EUR

0,00 €

Seda kombinatsiooni ei eksisteeri.

Lisa ostukorvi

Product downloads

Spetsifikatsioon tootele Relay: electromagnetic power

Mounting PCB
Operating temperature -40...70°C
Leads for soldering
Contact material AgCdO
Body dimensions 51.5x33.5x31mm
Switched voltage ≤ 220V DC, ≤ 440V AC
Coil resistance 85Ω
Rated coil voltage 12V DC
Contacts configuration DPST-NO
DC contacts rating @R 25A / 24V DC
AC contacts rating @R 30A / 250V AC
Contact current max. 50A
Relay variant power
Coil power consumption 1.7W
Relay series 66.22
Coil current 141mA
