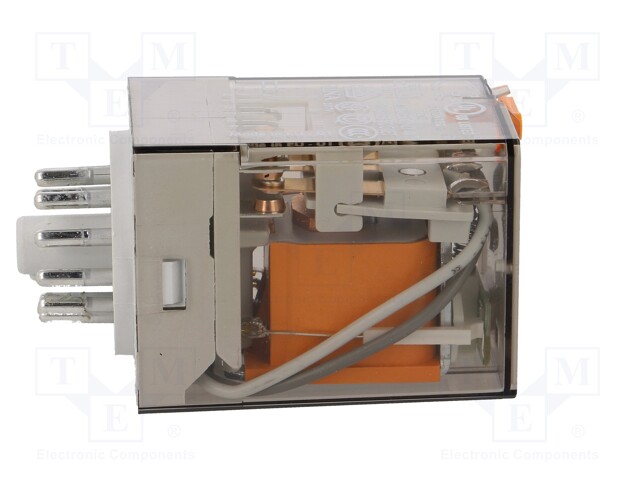

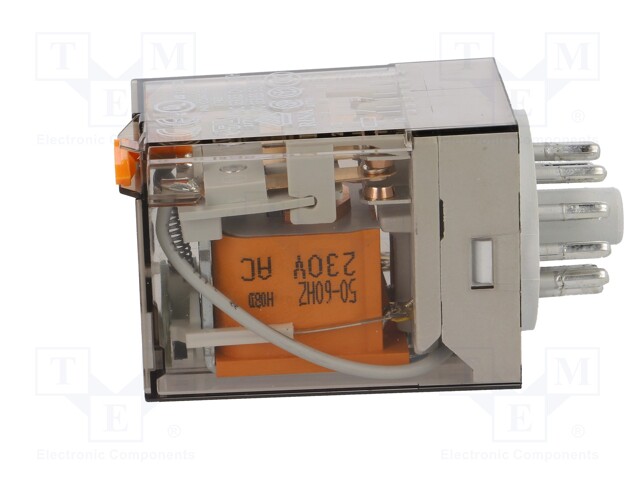

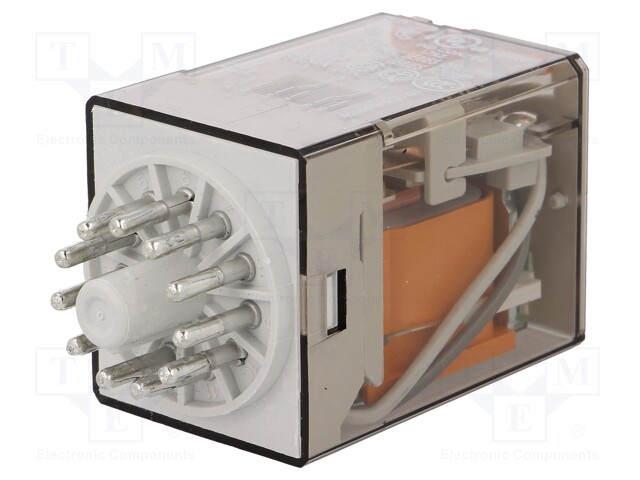

Relay: electromagnetic; 3PDT; Ucoil: 230VAC; 10A/250VAC; 10A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 60.13.8.230.0054
    Tootja: FINDER
    Tootja tootekood: 60.13.8.230.0054
    • Mounting
    • Operating temperature
    • Leads
    • Number of pins
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Electrical connection
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Coil current

    18,49 € 18,49 € (KM-TA) 18.490000000000002 EUR

    18,49 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; 3PDT; Ucoil: 230VAC; 10A/250VAC; 10A/30VDC

    Mounting socket
    Operating temperature -40...70°C
    Leads stud terminals
    Number of pins 11
    Contact material AgNi
    Body dimensions 36.4x32.5x54.2mm
    Switched voltage ≤ 220V DC, ≤ 400V AC
    Electrical connection round socket
    Coil resistance 7.25kΩ
    Contacts configuration 3PDT
    DC contacts rating @R 10A / 30V DC
    AC contacts rating @R 10A / 250V AC
    Contact current max. 10A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 2.2VA
    Relay series 60.13
    Coil current 10.5mA
