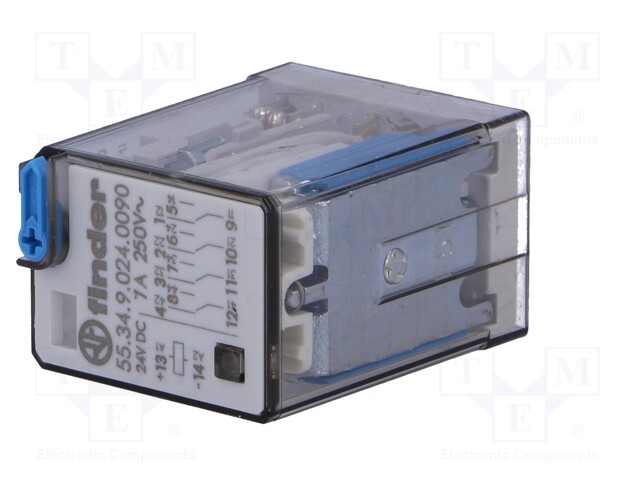

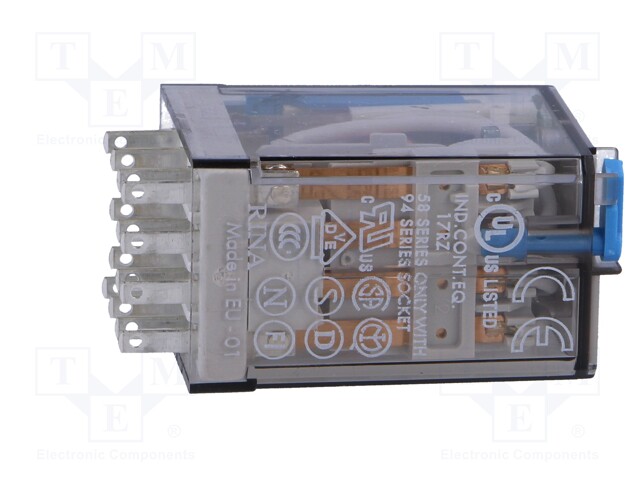

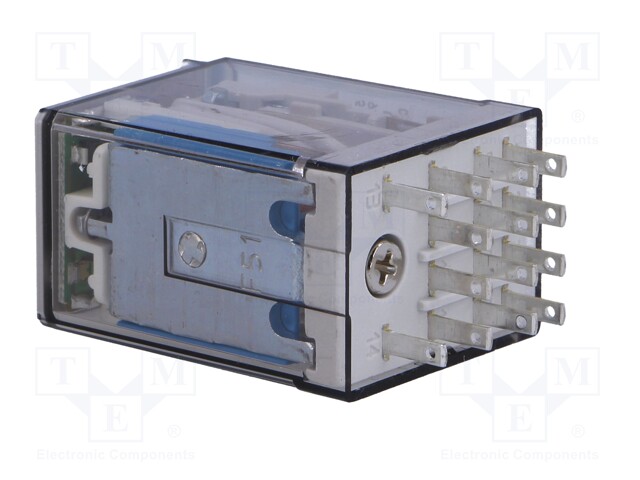

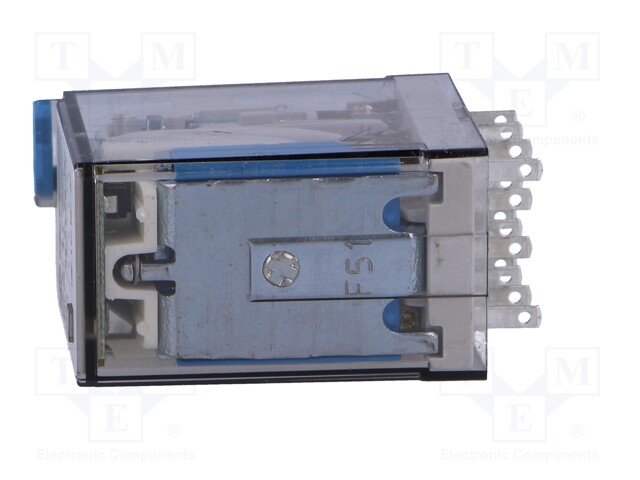

Relay: electromagnetic; 4PDT; Ucoil: 24VDC; 7A/250VAC; 7A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 55.34.9.024.0090
    Tootja: FINDER
    Tootja tootekood: 55.34.9.024.0090
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Coil current

    15,86 € 15,86 € (KM-TA) 15.860000000000001 EUR

    15,86 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; 4PDT; Ucoil: 24VDC; 7A/250VAC; 7A/30VDC

    Mounting socket
    Operating temperature -40...85°C
    Contact material AgNi
    Body dimensions 27.7x20.7x35.8mm
    Switched voltage ≤ 220V DC, ≤ 250V AC
    Rated coil voltage 24V DC
    Contacts configuration 4PDT
    DC contacts rating @R 7A / 30V DC
    AC contacts rating @R 7A / 250V AC
    Contact current max. 15A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 1W
    Relay series 55.34
    Coil current 40mA
