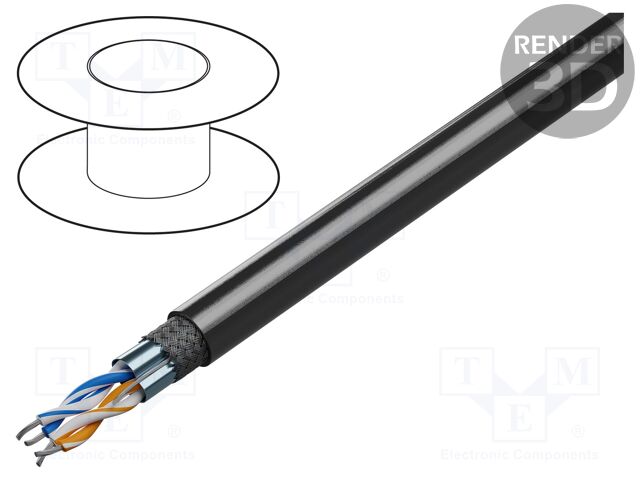

Wire; RS485; 2x2x22AWG; stranded; Cu; LSZH; black; 305m; CPR: Eca

    Kordarv: 5.0
    Minimum quantity: 5.0
    Tootekood: 3107ENH.00305
    Tootja: BELDEN
    Tootja tootekood: 3107ENH.00305
    • Operating temperature
    • Core structure
    • Kind of core
    • Kind of core
    • Cable features
    • Number of cores
    • Resistance to
    • Resistance to
    • Resistance to
    • Cable external diameter
    • Insulation colour
    • Cable application
    • Cable application
    • Cable application
    • Type of wire
    • No. of pairs
    • Shield structure
    • Shield structure
    • Core marking
    • Earth core
    • CPR standard

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Wire; RS485; 2x2x22AWG; stranded; Cu; LSZH; black; 305m; CPR: Eca

    Operating temperature -45...80°C
    Core structure stranded
    Kind of core Cu, tinned
    Cable features twisted pair conductors
    Number of cores 4
    Resistance to flame, most of oils, UV rays
    Cable external diameter 8.9mm
    Insulation colour black
    Cable application RS485, indoor, outdoor
    Type of wire data transmission
    No. of pairs 2
    Shield structure Al-PET foil, tinned copper braid
    Core marking colours with colour repetition
    Earth core without earth core
    CPR standard E<sub>ca</sub>
