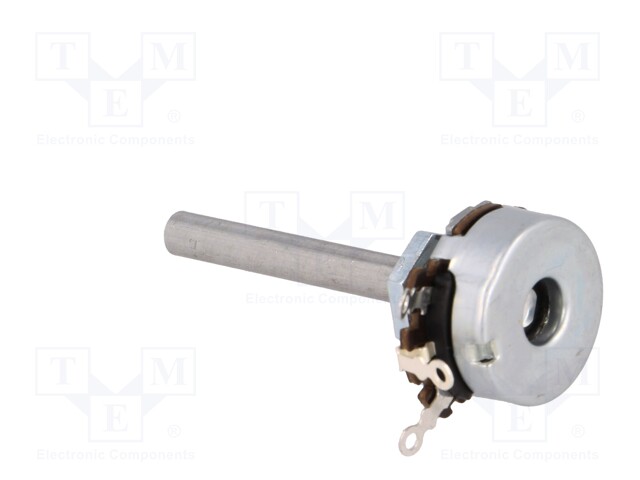

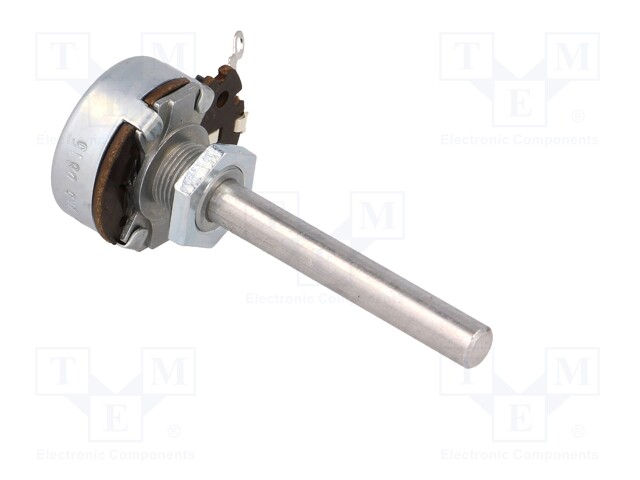

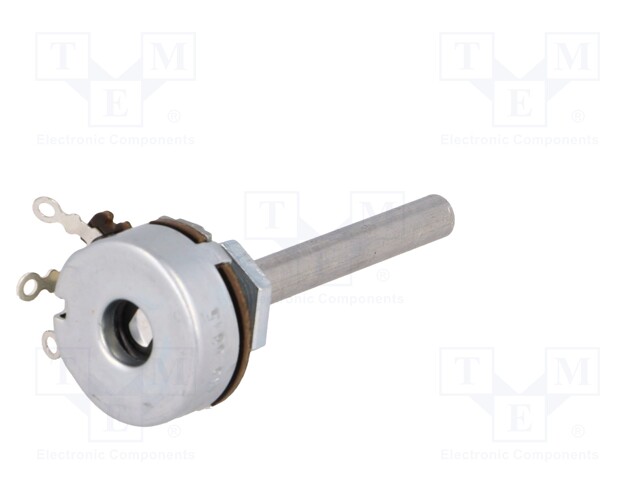

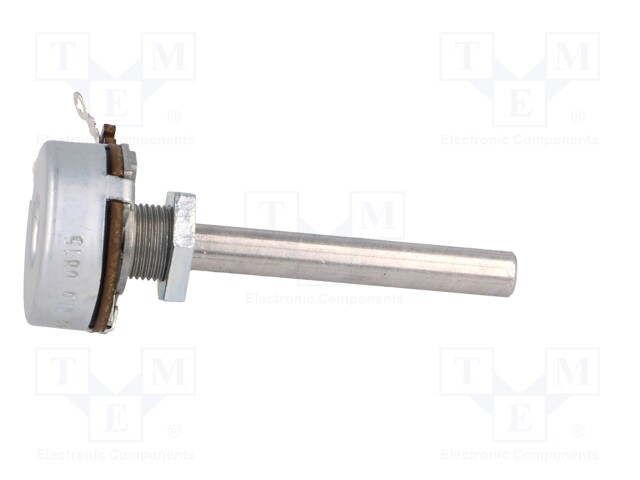

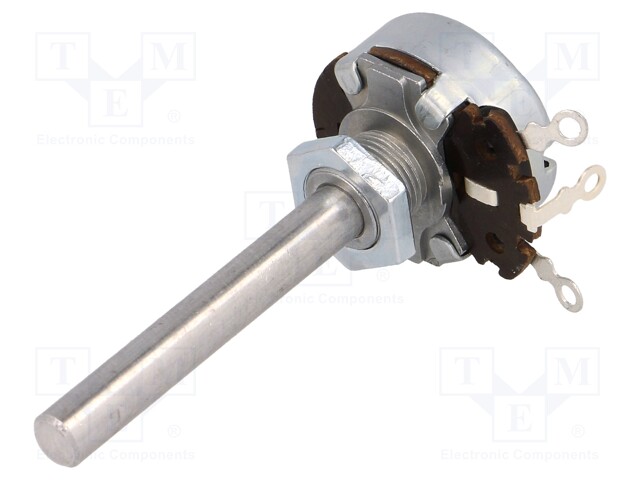

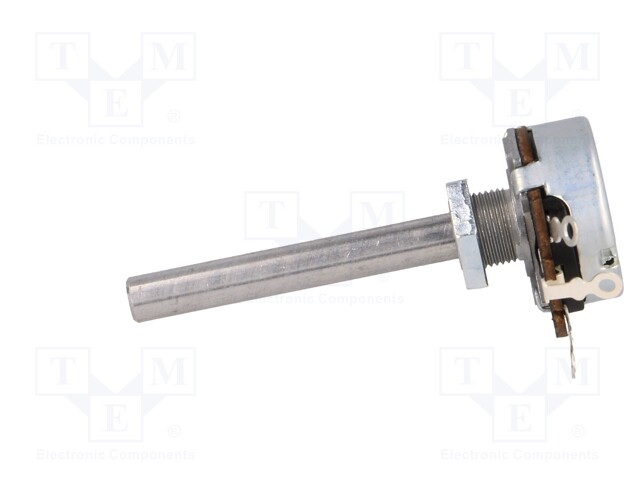

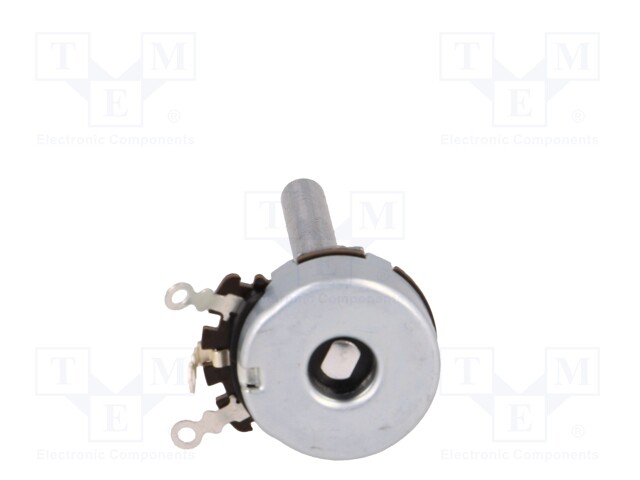

Potentiometer: shaft; single turn; 2.5kΩ; 4W; ±10%; 6mm; wirewound

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 3104606793
    Tootja: AB Elektronik
    Tootja tootekood: 3104606793
    • Power
    • Resistance
    • Tolerance
    • Fastening thread
    • Max. operating voltage
    • Shaft length
    • Shaft diameter
    • Shaft surface
    • Thread length
    • L shaft length
    • Kind of potentiometer
    • Type of potentiometer
    • Track material
    • Characteristics
    • Mechanical rotation angle
    • Electrical rotation angle

    12,35 € 12,35 € (KM-TA) 12.35 EUR

    12,35 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Potentiometer: shaft; single turn; 2.5kΩ; 4W; ±10%; 6mm; wirewound

    Power 4W
    Resistance 2.5kΩ
    Tolerance ±10%
    Fastening thread M10x0,75
    Max. operating voltage 500V DC
    Shaft length 42mm
    Shaft diameter 6mm
    Shaft surface smooth
    Thread length 8mm
    L shaft length 50mm
    Kind of potentiometer single turn
    Type of potentiometer shaft
    Track material wirewound
    Characteristics linear
    Mechanical rotation angle 300° ±10
    Electrical rotation angle 280° ±5
