Relay: interface; SPDT; Ucoil: 24VDC; 6A; 6A/250VAC; 6A/28VDC; IP67

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 3-1416100-2
    Tootja: SCHRACK
    Tootja tootekood: 3-1416100-2
    • Mounting
    • Max. operating current
    • Operating temperature
    • IP rating
    • Leads
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Indication
    • Switching capacity
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Relay variant
    • Type of relay
    • Relay series
    • Operate time
    • Release time

    20,10 € 20,10 € (KM-TA) 20.1 EUR

    20,10 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: interface; SPDT; Ucoil: 24VDC; 6A; 6A/250VAC; 6A/28VDC; IP67

    Mounting for DIN rail mounting
    Max. operating current 6A
    Operating temperature -40...85°C
    IP rating IP67
    Leads screw terminals

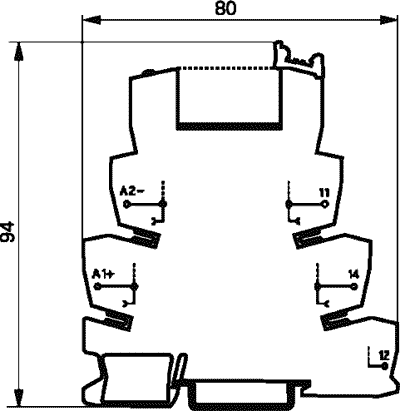

    Body dimensions 80x6.2x94mm
    Mechanical durability 100000000cycles
    Switched voltage ≤ 300V DC, ≤ 400V AC
    Indication LED operation indicator
    Switching capacity 1.5kVA
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 6A / 28V DC
    AC contacts rating @R 6A / 250V AC
    Relay variant Relay set
    Type of relay interface
    Relay series SNR
    Operate time 5ms
    Release time 2.5ms
