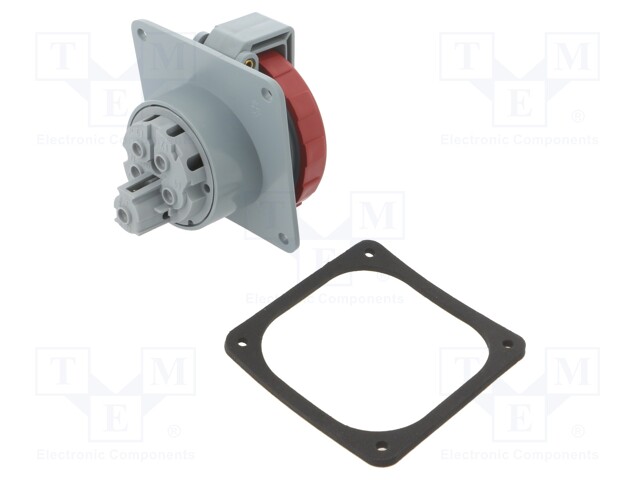

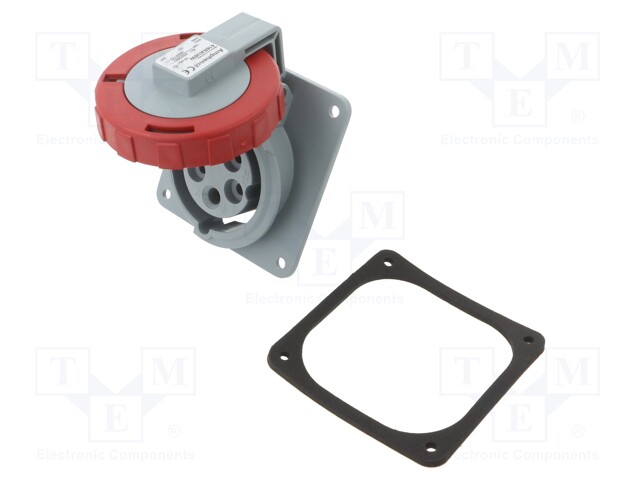

Connector: AC supply 3-phase

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 2CMA167030R1000
    Tootja: AMPHENOL
    Tootja tootekood: 2CMA167030R1000
    • IP rating
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Mechanical mounting
    • Polarisation
    • Type of connector
    • Number of pins
    • Contact material
    • Current rating
    • Type of pin configuration
    • Standard
    • Rated voltage
    • Spatial orientation

    40,81 € 40,81 € (KM-TA) 40.81 EUR

    40,81 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Connector: AC supply 3-phase

    IP rating IP67
    Electrical mounting screw terminal
    Connector socket
    Kind of connector female
    Mechanical mounting flange (4 holes), for panel mounting
    Polarisation 6H
    Type of connector AC supply 3-phase
    Number of pins 5
    Contact material brass
    Current rating 16A
    Type of pin configuration 3P+N+PE
    Standard IEC 60309
    Rated voltage 415V AC
    Spatial orientation angled
