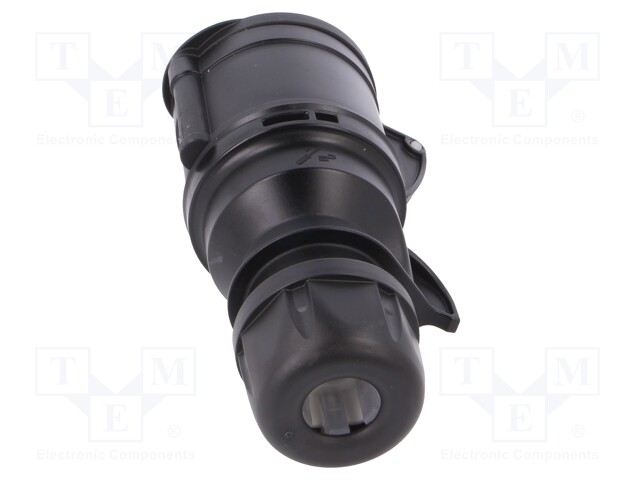

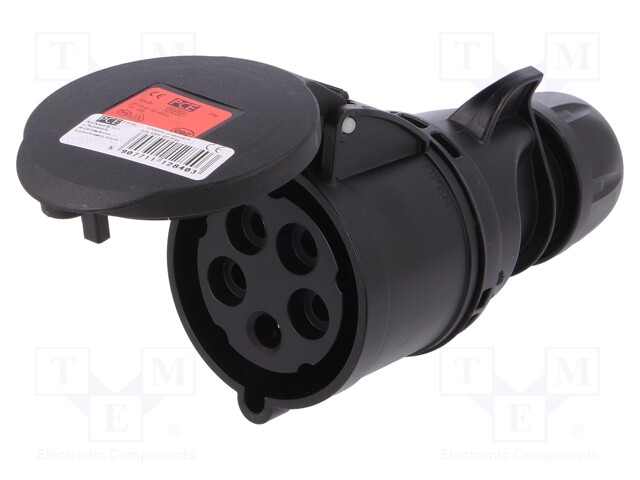

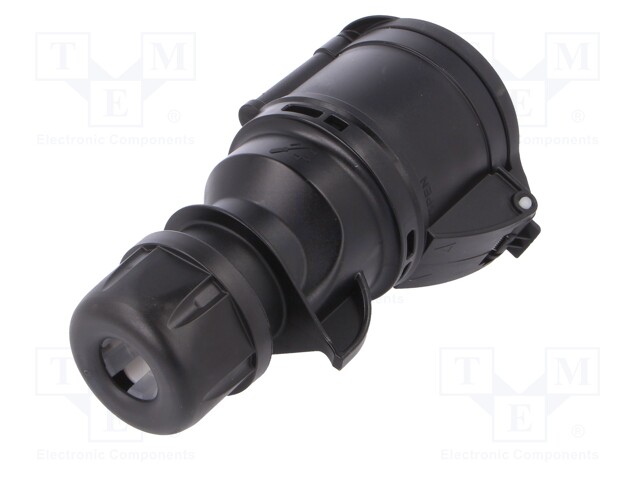

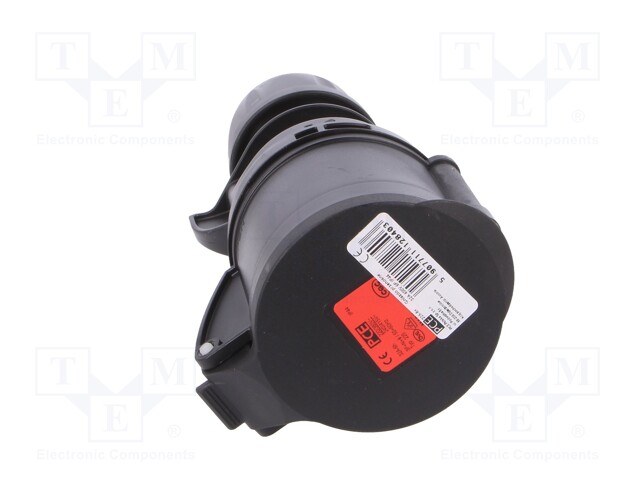

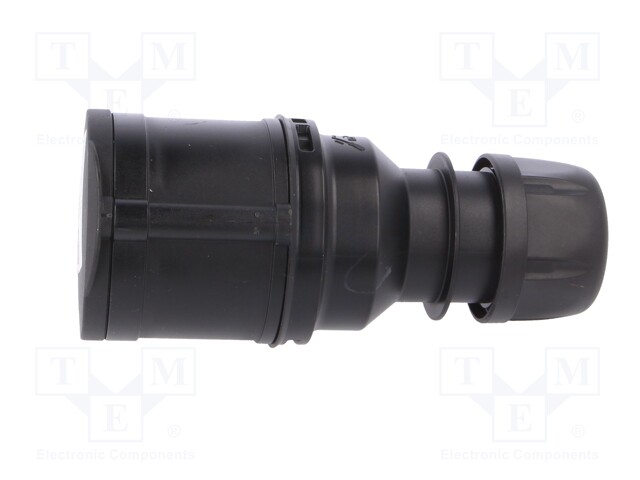

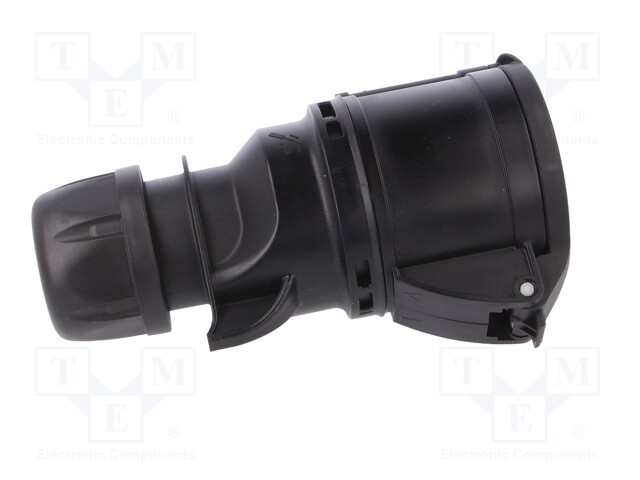

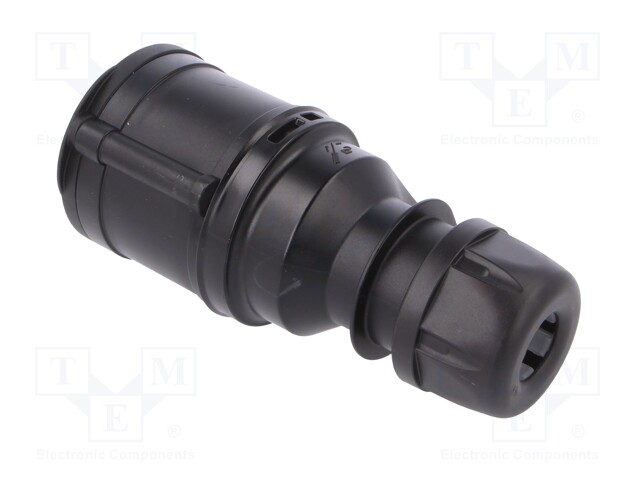

Connector: AC supply 3-phase; plug; female; 32A; 400VAC; IP44

Kordarv: 1.0
Minimum quantity: 1.0
Tootekood: 225-6X
Tootja: PCE
Tootja tootekood: 225-6X
  • IP rating
  • Electrical mounting
  • Connector
  • Kind of connector
  • Mechanical mounting
  • Contact plating
  • Polarisation
  • Type of connector
  • Number of pins
  • Contact material
  • Current rating
  • Type of pin configuration
  • Standard
  • Rated voltage
  • Connector series
  • Spatial orientation

15,30 € 15,30 € (KM-TA) 15.3 EUR

15,30 €

Seda kombinatsiooni ei eksisteeri.

Lisa ostukorvi

Spetsifikatsioon tootele Connector: AC supply 3-phase; plug; female; 32A; 400VAC; IP44

IP rating IP44
Electrical mounting screw terminal
Connector plug
Kind of connector female
Mechanical mounting for cable
Contact plating nickel plated
Polarisation 6H
Type of connector AC supply 3-phase
Number of pins 5
Contact material brass
Current rating 32A
Type of pin configuration 3P+N+PE
Standard IEC 60309
Rated voltage 400V AC
Connector series Midnight
Spatial orientation straight
