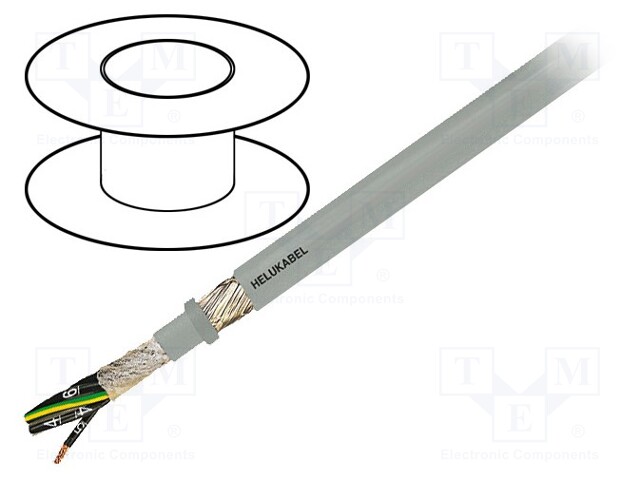

Wire: control cable; JZ-HF-CY; 12G0,5mm2; PVC; grey; stranded; Cu

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 15935
    Tootja: HELUKABEL
    Tootja tootekood: 15935
    • Operating temperature
    • Core structure
    • Kind of core
    • Number of cores
    • Resistance to
    • Resistance to
    • Resistance to
    • Wire insulation material
    • Kind of wire
    • Rated voltage
    • Rated voltage
    • Cable external diameter
    • Insulation colour
    • Cable application
    • Cable application
    • Cable application
    • Type of wire
    • Shield structure
    • Core marking
    • Earth core
    • CPR standard

    9,59 € 9,59 € (KM-TA) 9.59 EUR

    9,59 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Wire: control cable; JZ-HF-CY; 12G0,5mm2; PVC; grey; stranded; Cu

    Operating temperature -40...80°C
    Core structure stranded
    Kind of core Cu
    Number of cores 12
    Resistance to flame, most of chemical compounds, most of oils
    Wire insulation material PVC
    Kind of wire JZ-HF-CY
    Rated voltage 300V, 500V
    Cable external diameter 11.5mm
    Insulation colour grey
    Cable application industrial applications, power chain, robotics
    Type of wire control cable
    Shield structure braid made of copper wires
    Core marking black, numbered + ground wire
    Earth core yellow-green earth core
    CPR standard no classification
