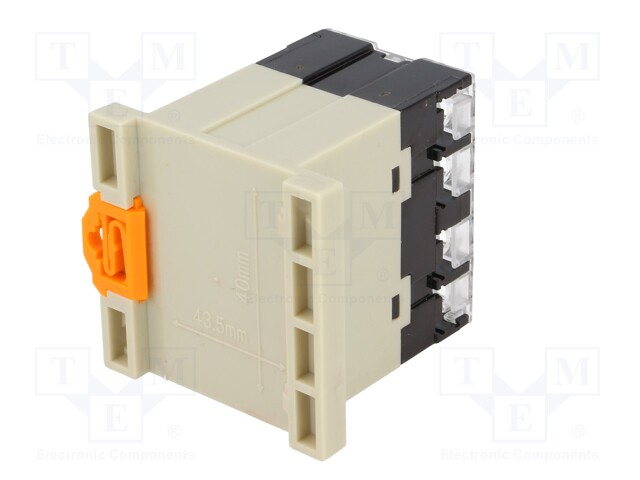

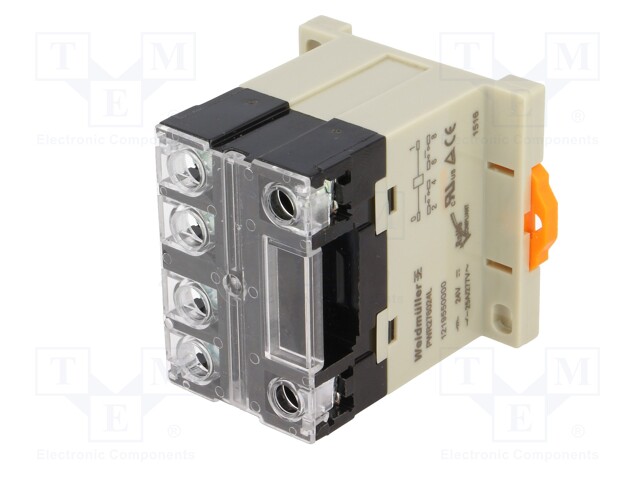

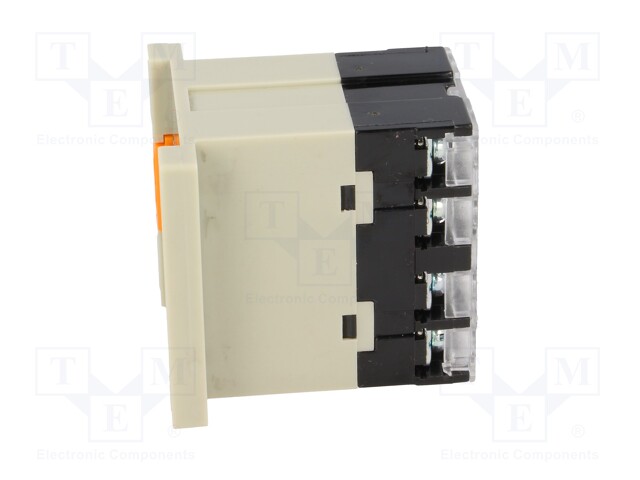

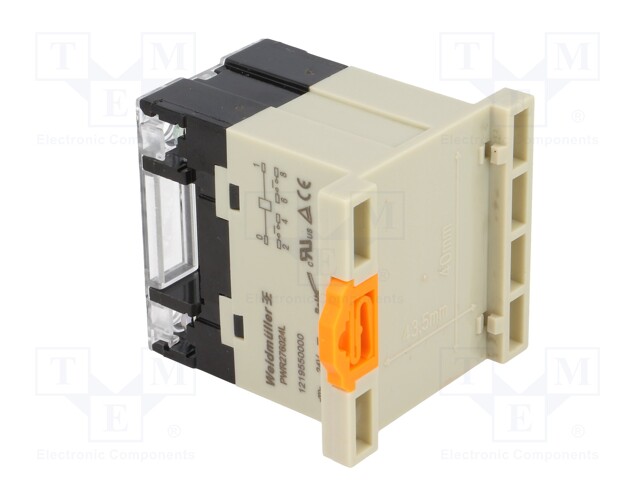

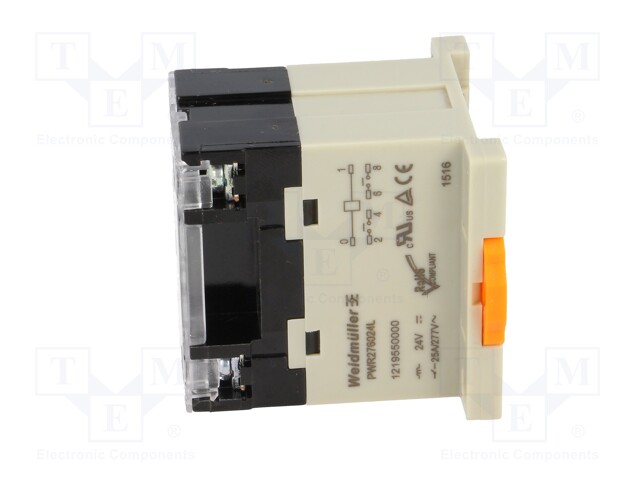

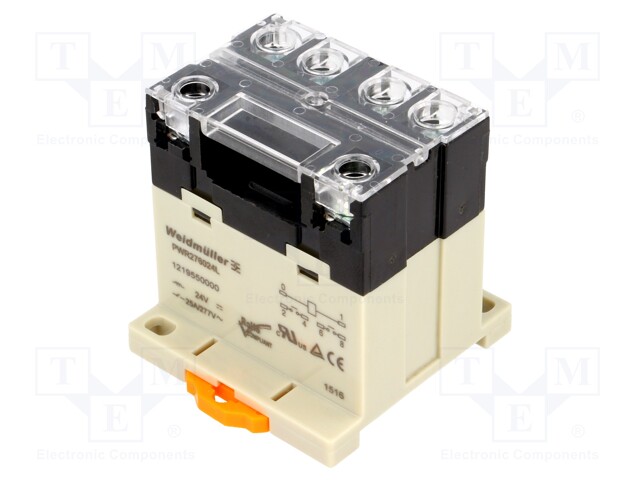

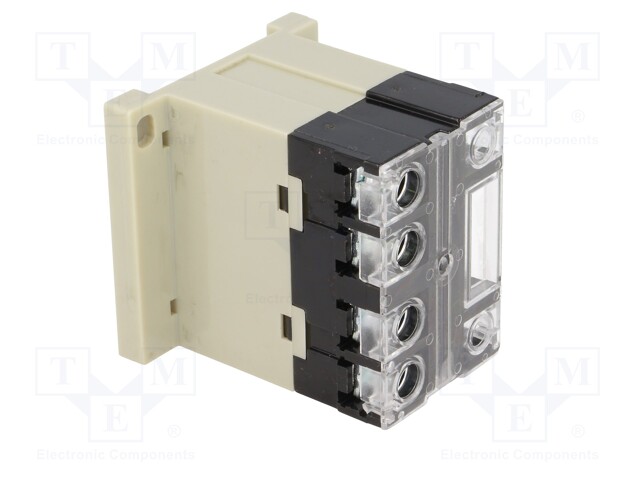

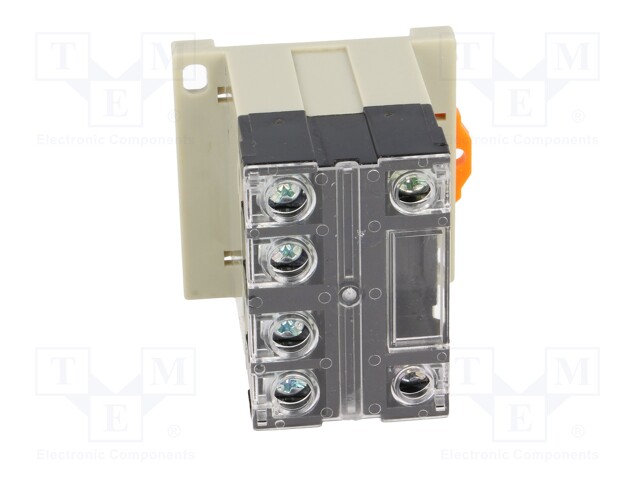

Relay: electromagnetic; DPST-NO; 24VDC; 25A; max.277VAC; 1.9W; 120g

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 1219550000
    Tootja: WEIDMÜLLER
    Tootja tootekood: 1219550000
    • Mounting
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series

    26,14 € 26,14 € (KM-TA) 26.14 EUR

    26,14 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPST-NO; 24VDC; 25A; max.277VAC; 1.9W; 120g

    Mounting on panel, for DIN rail mounting
    Operating temperature -25...55°C
    Leads screw terminals
    Contact material AgNi

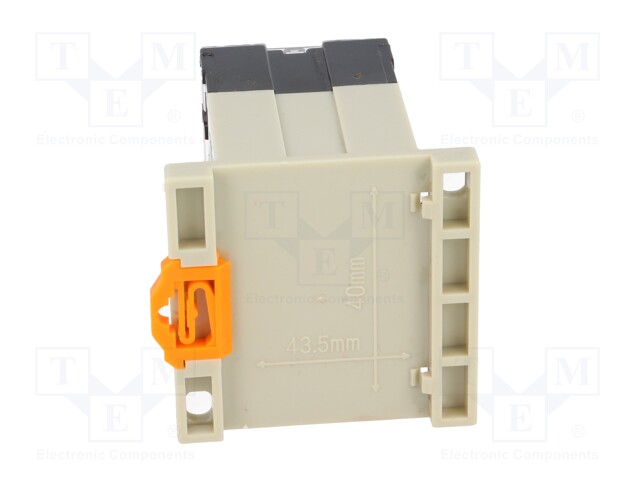

    Body dimensions 50.5x55x34mm
    Switched voltage ≤ 277V AC
    Coil resistance 303Ω
    Rated coil voltage 24V DC

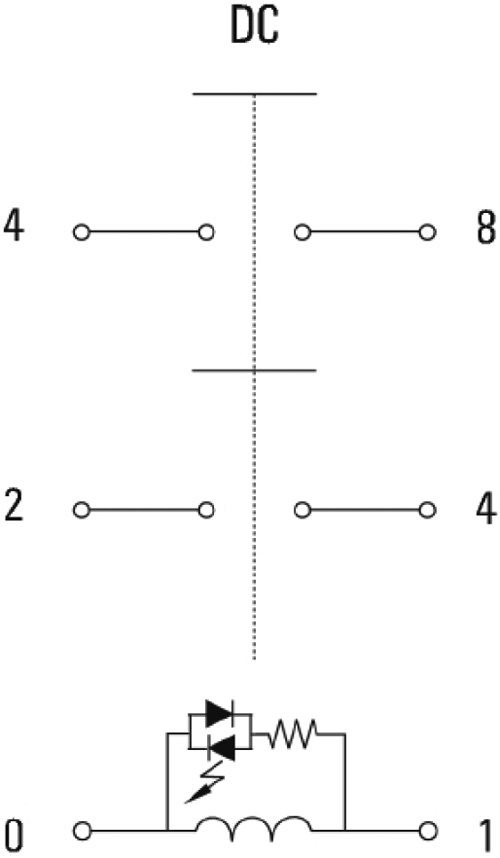

    Contacts configuration DPST-NO
    Contact resistance 50mΩ
    Contact current max. 25A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 1.9W
    Relay series D-SERIES
