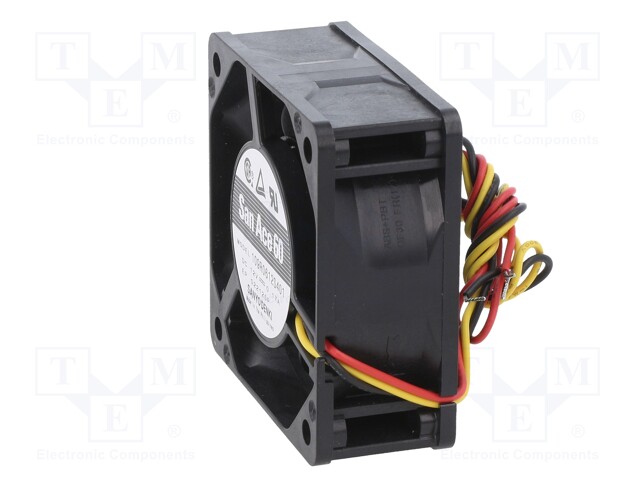

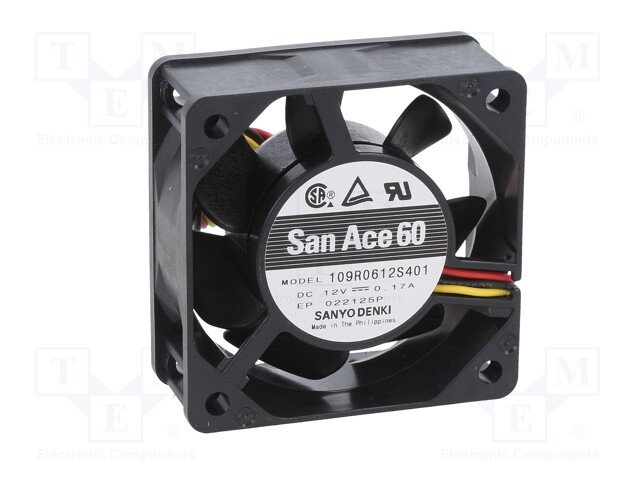

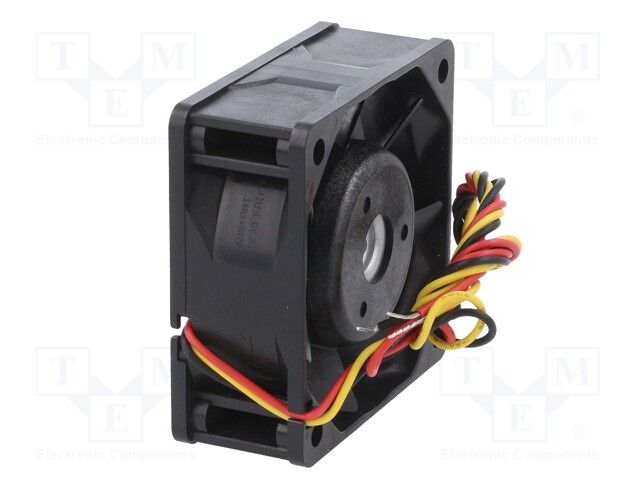

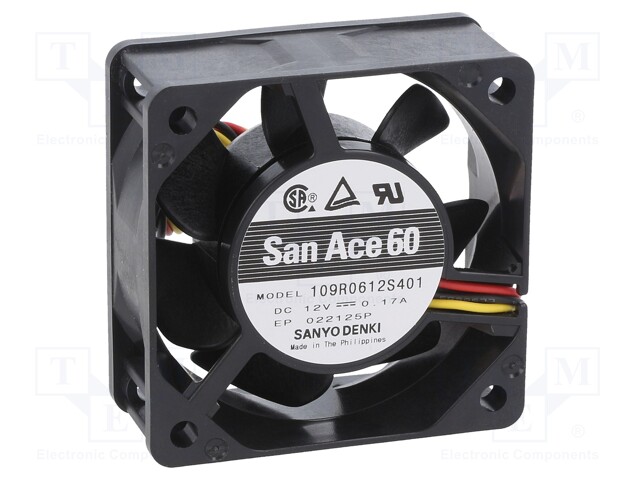

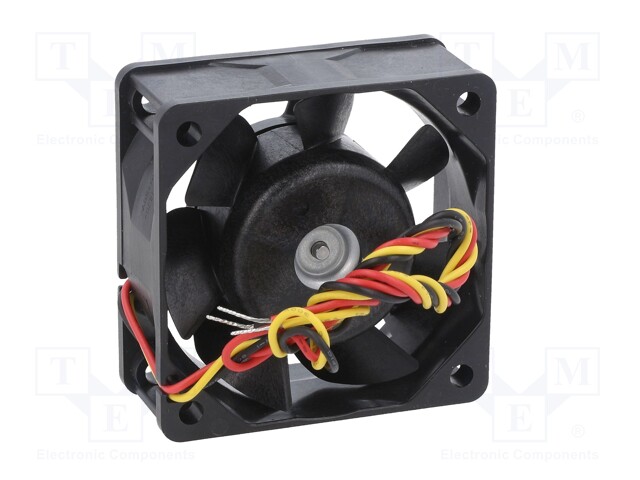

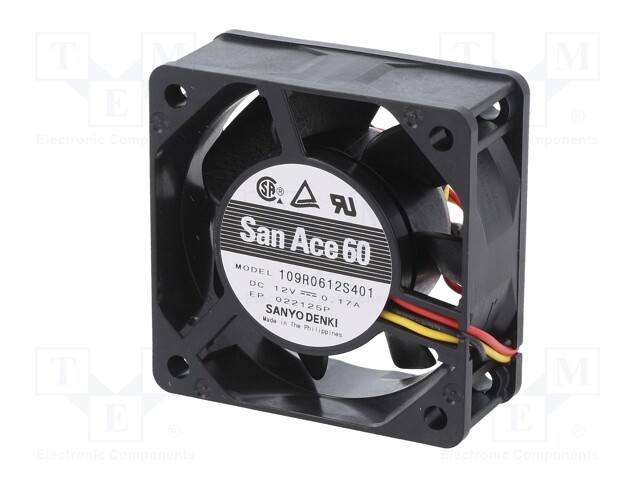

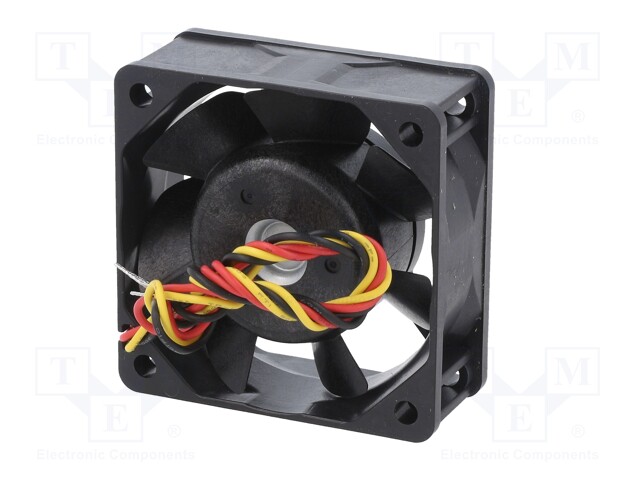

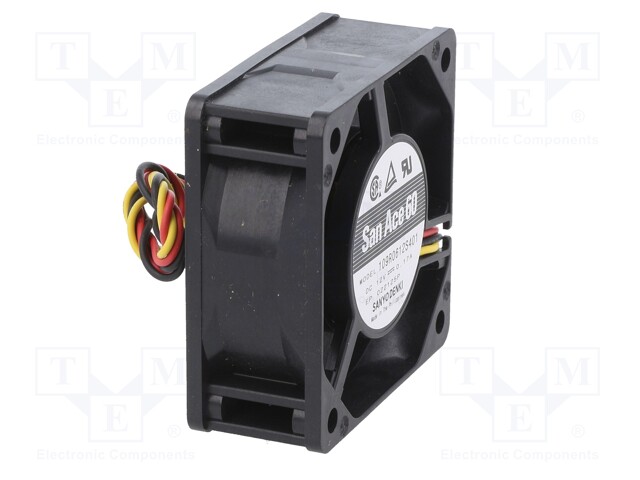

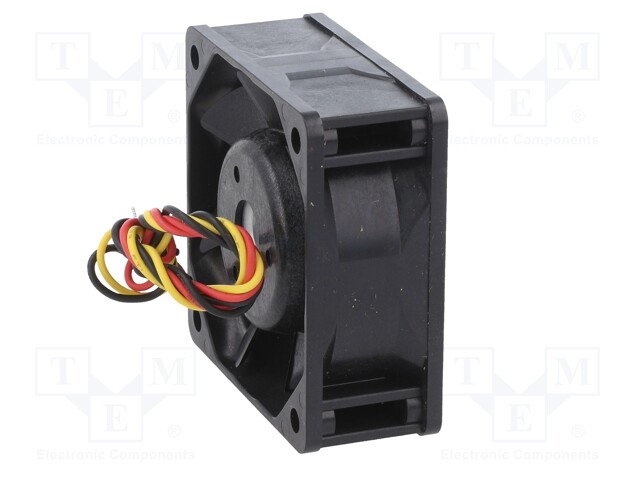

Axial Fan, 12 V, DC, 60 mm, 25 mm, 23 cu.ft/min, 0.65 m³/min

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 109R0612S401
    Tootja: SANYO DENKI
    Tootja tootekood: 109R0612S401
    • Supply voltage
    • Operating voltage
    • Operating temperature
    • Enclosure material
    • Leads
    • Flammability rating
    • Cable length
    • Current rating
    • Power consumption
    • Additional functions
    • Rotational rate/speed
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Type of fan
    • Noise level

    16,31 € 16,31 € (KM-TA) 16.31 EUR

    16,31 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Axial Fan, 12 V, DC, 60 mm, 25 mm, 23 cu.ft/min, 0.65 m³/min

    Supply voltage 12V DC
    Operating voltage 6...13.8V DC
    Operating temperature -20...70°C
    Enclosure material plastic
    Leads 3 leads
    Flammability rating UL94V-1
    Cable length 300mm
    Current rating 170mA
    Power consumption 2.04W
    Additional functions lock sensor
    Rotational rate/speed 4600rpm
    Fan dimensions 60x60x25mm
    Kind of Bearing ball bearing
    Min. insulation resistance 10MΩ
    Impeller material plastic
    Kind of fan axial
    Type of fan DC
    Noise level 33dBA
