Resistor: wire-wound; with heatsink; screw; 1Ω; 25W; ±5%; 50ppm/°C

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 1-1625971-8
    Tootja: TE Connectivity
    Tootja tootekood: 1-1625971-8
    • Mounting
    • Power
    • Resistance
    • Type of resistor
    • Tolerance
    • Leads
    • Body dimensions
    • Max. operating voltage
    • Mounting holes pitch
    • Temperature coefficient
    • Resistor features
    • Resistor features
    • Kind of resistor
    • Power without heatsink

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Resistor: wire-wound; with heatsink; screw; 1Ω; 25W; ±5%; 50ppm/°C

    Mounting screw
    Power 25W
    Resistance 1Ω
    Type of resistor wire-wound
    Tolerance ±5%
    Leads for soldering

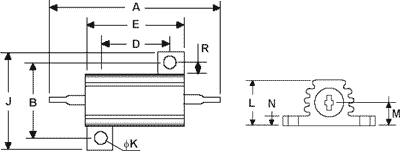

    Body dimensions 29x28x15mm
    Max. operating voltage 550V
    Mounting holes pitch 19.8x18.3mm
    Temperature coefficient 50ppm/°C
    Resistor features needs additional heatsink, robust mechanical structure
    Kind of resistor with heatsink
    Power without heatsink 12.5W
