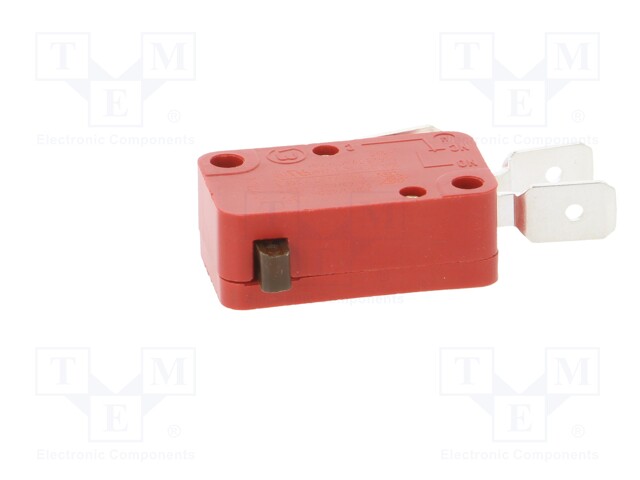

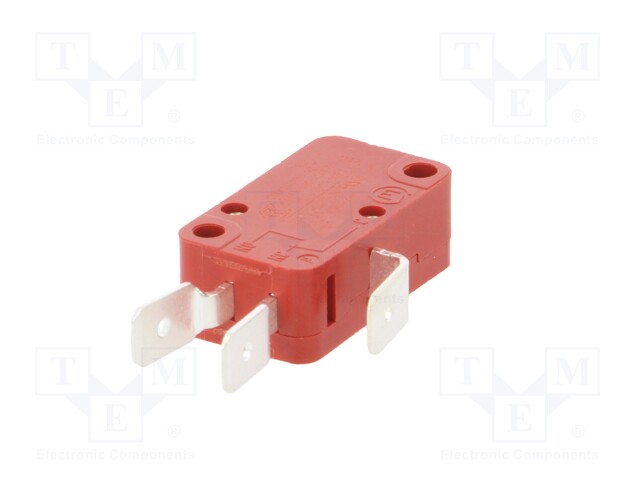

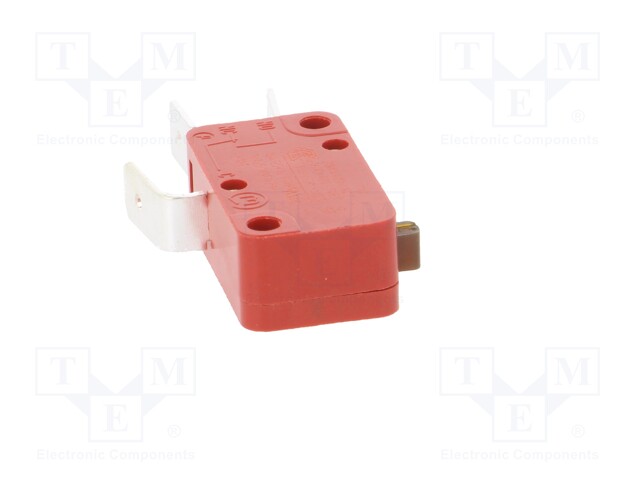

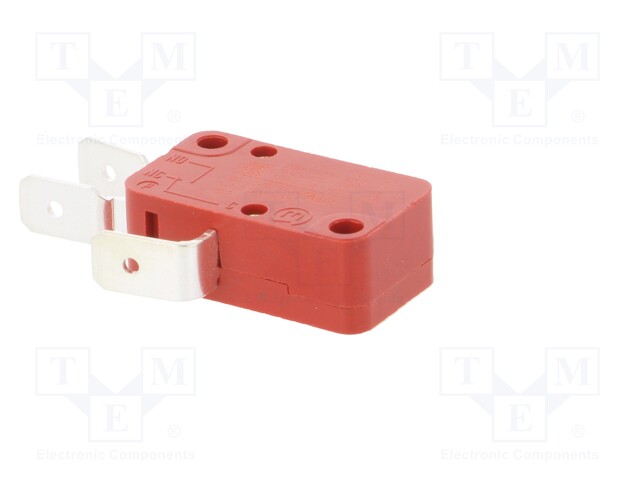

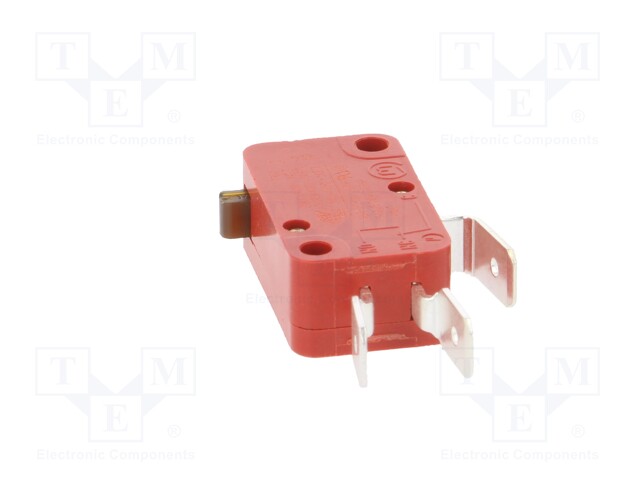

Microswitch SNAP ACTION; without lever; SPDT; 16A/250VAC; Pos: 2

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 01005.1004
    Tootja: Marquardt
    Tootja tootekood: 01005.1004
    • Operating temperature
    • Type of switch
    • Switches features
    • Contact plating
    • Number of positions
    • Leads
    • Max. contact resistance
    • Body colour
    • Body dimensions
    • Contacts configuration
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • AC contacts rating @L

    7,91 € 7,91 € (KM-TA) 7.91 EUR

    7,91 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Microswitch SNAP ACTION; without lever; SPDT; 16A/250VAC; Pos: 2

    Operating temperature -40...100°C
    Type of switch microswitch SNAP ACTION
    Switches features without lever
    Contact plating silver plated
    Number of positions 2
    Leads 6,3x0,8mm connectors
    Max. contact resistance 100mΩ
    Body colour red
    Body dimensions 28x10.3x16mm
    Contacts configuration SPDT
    AC contacts rating @R 16A / 250V AC
    Switching method ON-(ON)
    Stable positions number 1
    Operating Force 3.8N
    AC contacts rating @L 6A / 250V AC
