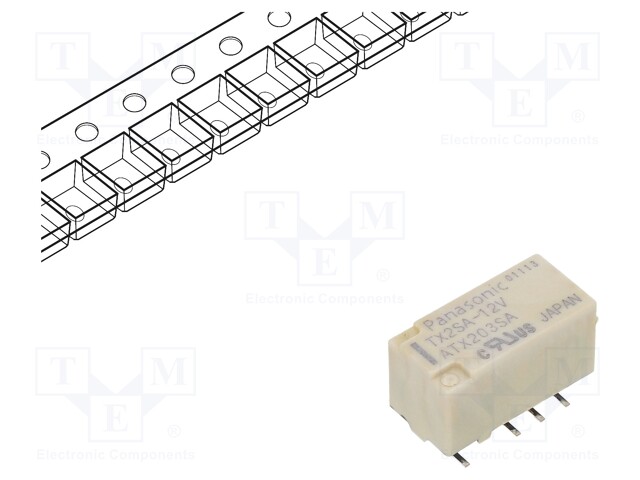

Relay: electromagnetic; DPDT; Ucoil: 12VDC; 2A/30VDC; 2A; miniature

Multiples: 500.0
Minimum quantity: 500.0
Product code: TX2SA12ZJ
Manufacturer: PANASONIC
Manufacturer code: TX2SA12ZJ
  • Mounting
  • Operating temperature
  • Contact plating
  • Contact material
  • Body dimensions
  • Mechanical durability
  • Switched voltage
  • Rated coil voltage
  • Contacts configuration
  • DC contacts rating @R
  • Contact current max.
  • Relay variant
  • Type of relay
  • Coil voltage min.
  • Coil power consumption
  • Relay series

0.00 € 0.00 € (wo VAT) 0.0 EUR

0.00 €

This combination does not exist.

Add to Cart

Product downloads

Specification for Relay: electromagnetic; DPDT; Ucoil: 12VDC; 2A/30VDC; 2A; miniature

Mounting PCB
Operating temperature -40...85°C
Contact plating gold-plated
Contact material silver alloy
Body dimensions 15x7.4x8.2mm
Mechanical durability 100000000cycles
Switched voltage max. 220V DC
Rated coil voltage 12V DC
Contacts configuration DPDT
DC contacts rating @R 2A / 30V DC
Contact current max. 2A
Relay variant miniature
Type of relay electromagnetic
Coil voltage min. 9V DC
Coil power consumption 140mW
Relay series TX
