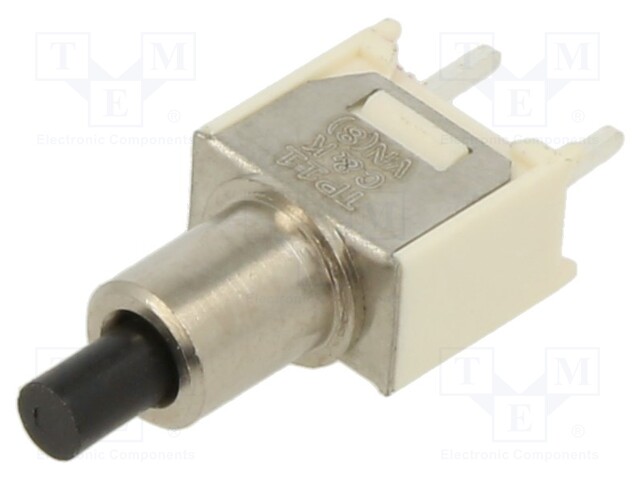

Switch: push-button; Pos: 2; SPST-NO; 1A/120VAC; 1A/28VDC; OFF-(ON)

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: TP11SH8CQE
    Manufacturer: C&K
    Manufacturer code: TP11SH8CQE
    • Mounting
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance:
    • Body dimensions
    • Min. insulation resistance
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Button shape
    • Button height

    7.61 € 7.61 € (wo VAT) 7.61 EUR

    7.61 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: push-button; Pos: 2; SPST-NO; 1A/120VAC; 1A/28VDC; OFF-(ON)

    Mounting THT
    Operating temperature -30...85°C
    Type of switch push-button
    Contact plating silver plated
    Number of positions 2
    Leads for PCB
    Contact material copper
    Max. contact resistance: 20mΩ
    Body dimensions 8.13x5.08x8.64mm
    Min. insulation resistance 1GΩ
    Electrical life 60000cycles
    Contacts configuration SPST-NO
    DC contacts rating @R 1A / 28V DC
    AC contacts rating @R 1A / 120V AC
    Switching method OFF-(ON)
    Stable positions number 1
    Button shape round
    Button height 3.94mm
