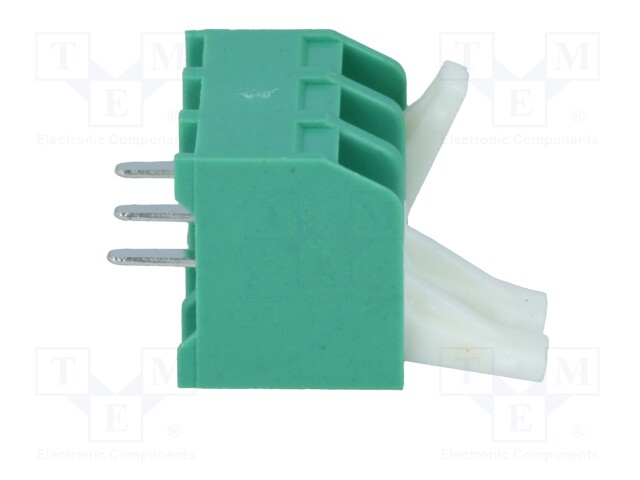

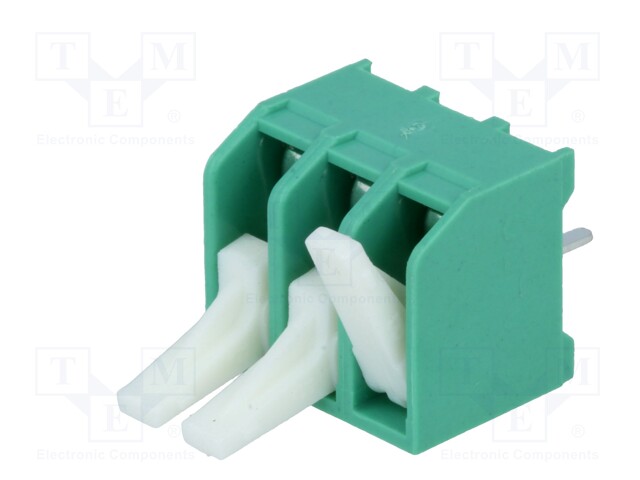

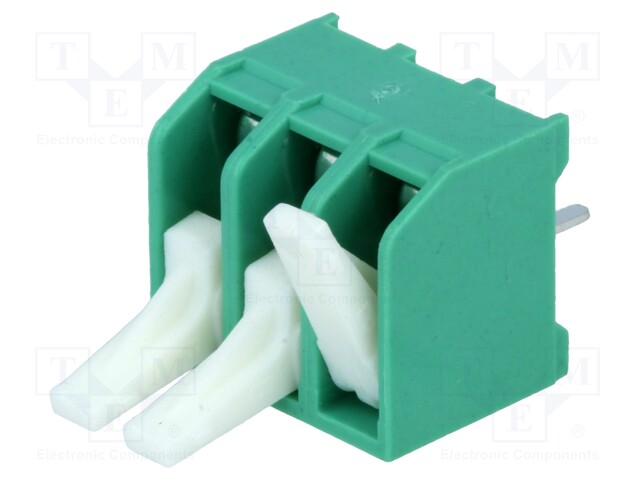

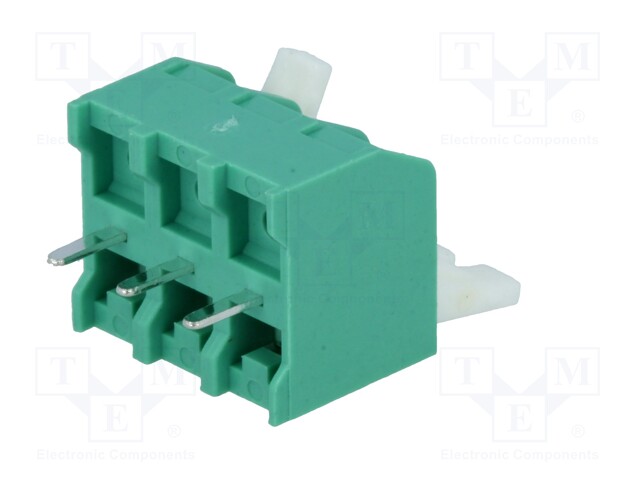

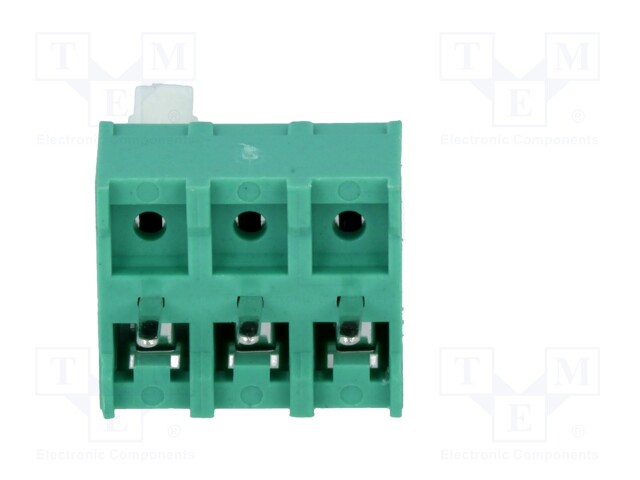

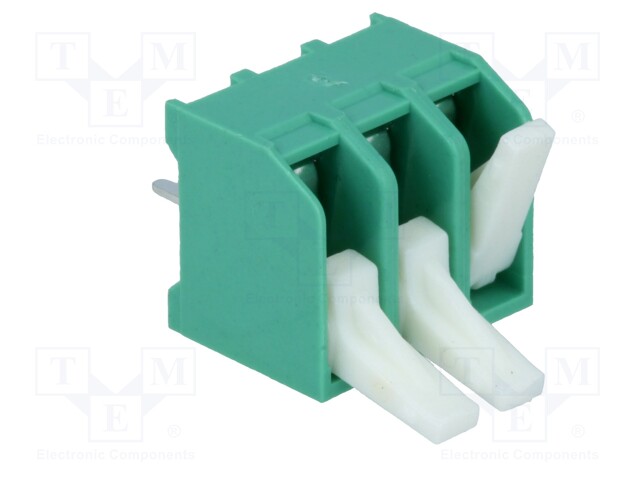

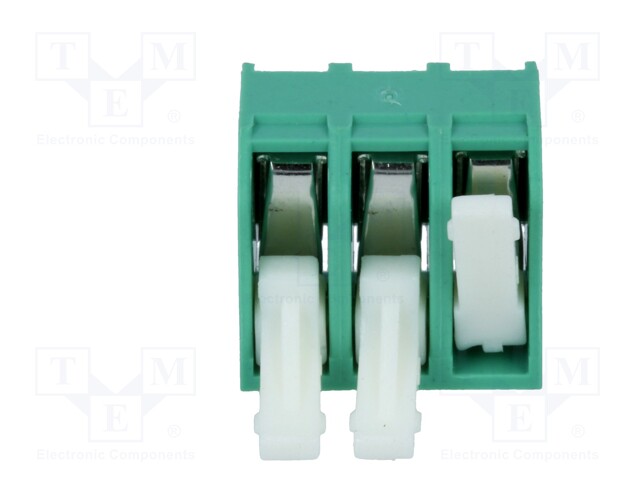

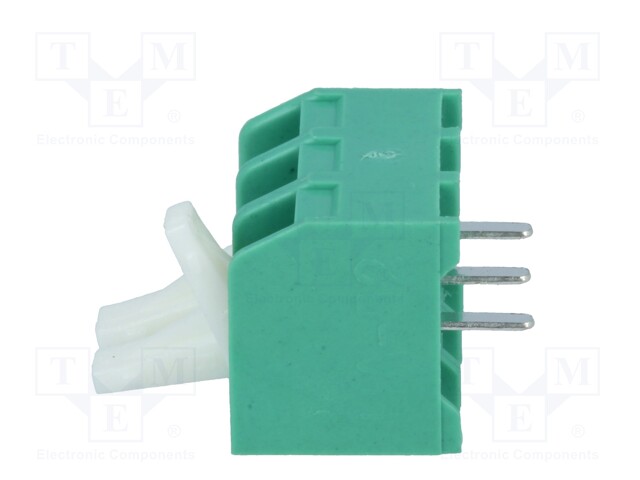

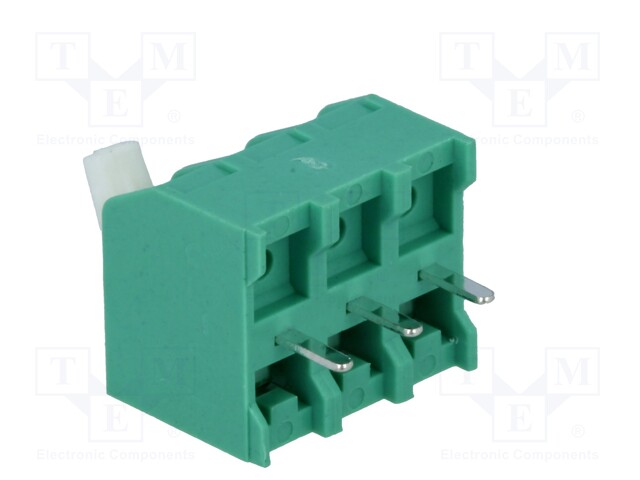

PCB terminal block; straight; 5mm; ways: 3; on PCBs; 0.5mm2; tinned

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: TB-5.0-PT-3P
    Manufacturer: NINIGI
    Manufacturer code: TB-5.0-PT-3P
    • Operating temperature
    • Contacts pitch
    • Electrical mounting
    • Electrical mounting
    • Connector
    • Mechanical mounting
    • Colour
    • Contact plating
    • Type of connector
    • Contact material
    • Body material
    • Flammability rating
    • Length
    • Height
    • Current rating
    • Number of ways
    • Type of pin configuration
    • Connector variant
    • Conform to the norm
    • Spatial orientation
    • Depth

    2.42 € 2.42 € (wo VAT) 2.42 EUR

    2.42 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for PCB terminal block; straight; 5mm; ways: 3; on PCBs; 0.5mm2; tinned

    Operating temperature -55...100°C
    Contacts pitch 5mm
    Electrical mounting spring clamp, THT
    Connector terminal
    Mechanical mounting on PCBs
    Colour green
    Contact plating tinned
    Type of connector PCB terminal block
    Contact material brass
    Body material NYLON 66
    Flammability rating UL94V-0
    Length 15.15mm
    Height 11.4mm
    Current rating 11A
    Number of ways 3
    Type of pin configuration 1x3
    Connector variant with lever
    Conform to the norm UL
    Spatial orientation straight
    Depth 13mm
