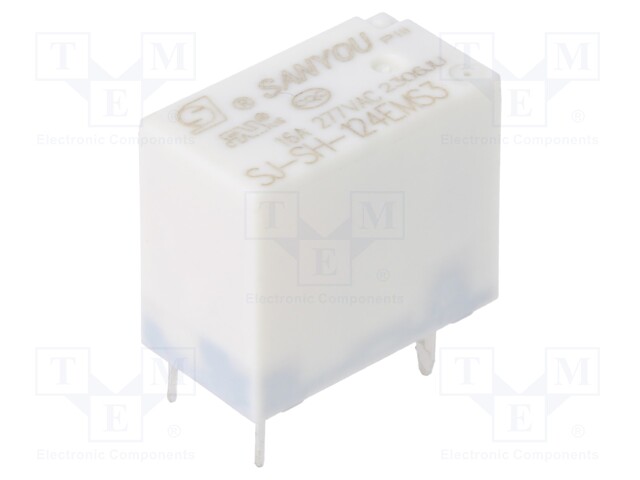

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 16A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: SJ-SH-124EMS
    Manufacturer: Sanyou Electrical Appliances GmbH
    Manufacturer code: SJ-SH-124EMS
    • Mounting
    • Operating temperature
    • Contact material
    • Current rating
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    1.38 € 1.38 € (wo VAT) 1.3800000000000001 EUR

    1.38 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 16A

    Mounting THT
    Operating temperature -40...105°C
    Contact material AgSnO<sub>2</sub>
    Current rating 16A
    Switched voltage max. 277V AC
    Coil resistance 1.44kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    Contact resistance 100MΩ
    AC contacts rating @R 16A / 277V AC
    Contact current max. 16A
    Relay variant miniature
    Coil voltage max. 31.2V DC
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 400mW
