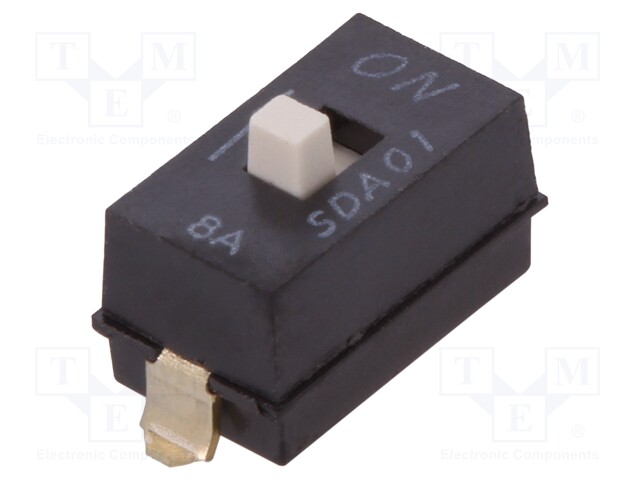

Switch: DIP-SWITCH; Poles number: 1; OFF-ON; 0.025A/24VDC; Pos: 2

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: SDA01H1SBD
    Manufacturer: C&K
    Manufacturer code: SDA01H1SBD
    • Mounting
    • Operating temperature
    • Type of switch
    • Switches features
    • Contact plating
    • Number of positions
    • Row pitch
    • Contact material
    • Max. contact resistance:
    • Terminal pitch
    • Body dimensions
    • Overall length
    • Electrical life
    • Poles number
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Stable positions number

    2.48 € 2.48 € (wo VAT) 2.48 EUR

    2.48 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: DIP-SWITCH; Poles number: 1; OFF-ON; 0.025A/24VDC; Pos: 2

    Mounting SMT
    Operating temperature -40...85°C
    Type of switch DIP-SWITCH
    Switches features raised actuator
    Contact plating gold-plated
    Number of positions 2
    Row pitch 6.1mm
    Contact material copper
    Max. contact resistance: 50mΩ
    Terminal pitch 2.54mm
    Body dimensions 7.49x4.65x4.52mm
    Overall length 4.52mm
    Electrical life 1000cycles
    Poles number 1
    Contacts configuration SPST
    DC contacts rating @R 0.025A / 24V DC
    Switching method OFF-ON
    Stable positions number 2
