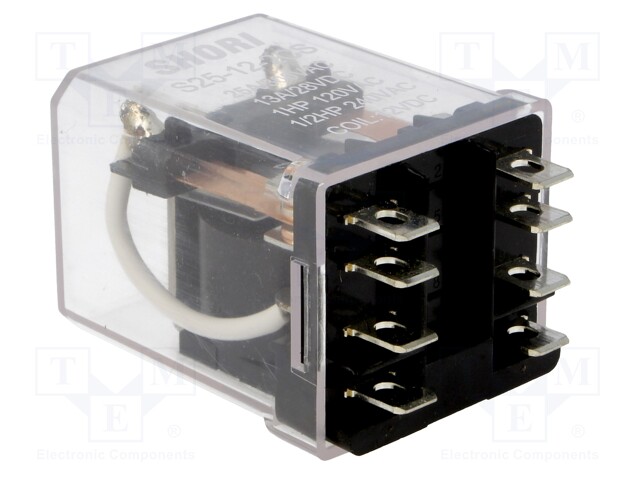

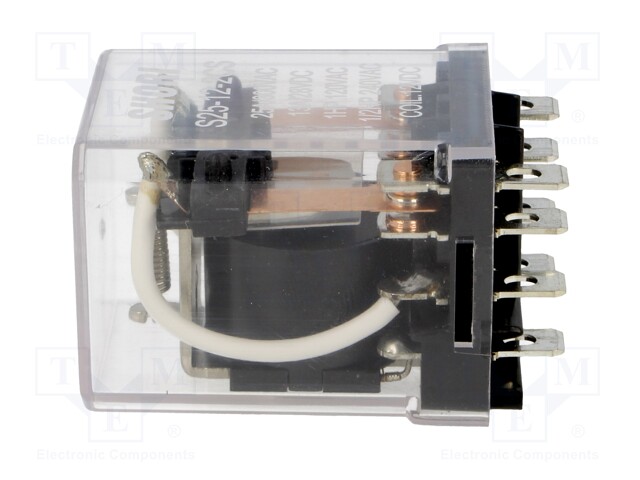

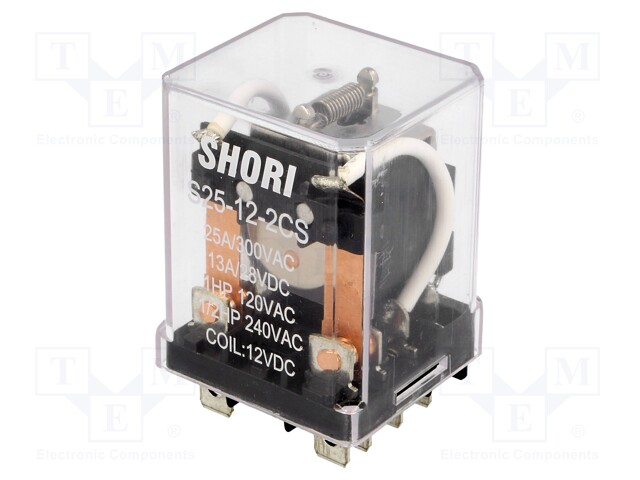

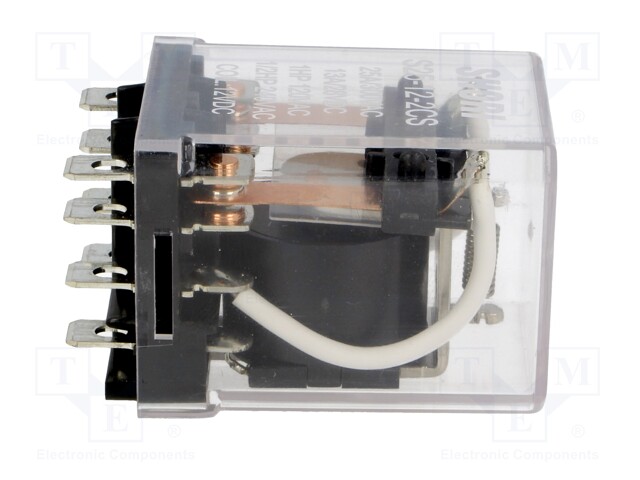

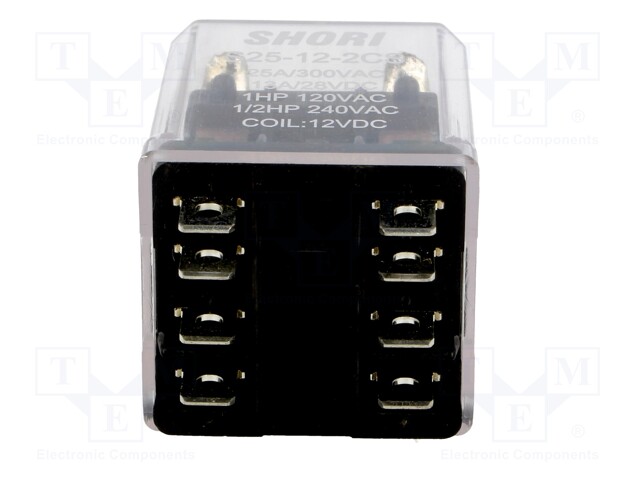

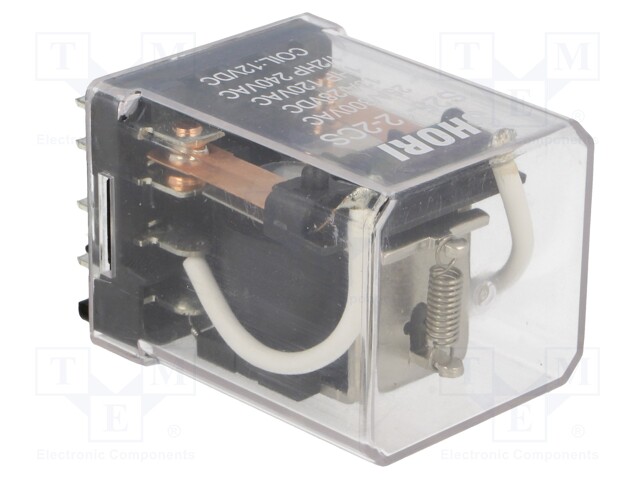

Relay: electromagnetic; DPDT; Ucoil: 12VDC; 30A/250VAC; 13A/28VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: S25-12-2CS
    Manufacturer: SHORI ELECTRIC
    Manufacturer code: S25-12-2CS
    • Mounting
    • Operating temperature
    • IP rating
    • Leads
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series

    8.34 € 8.34 € (wo VAT) 8.34 EUR

    8.34 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 12VDC; 30A/250VAC; 13A/28VDC

    Mounting PCB
    Operating temperature -30...55°C
    IP rating IP40
    Leads 6,35x0,8mm connectors
    Body dimensions 34.8x38x47.5mm
    Switched voltage max. 30V DC, max. 300V AC
    Coil resistance 120Ω
    Rated coil voltage 12V DC
    Contacts configuration DPDT
    DC contacts rating @R 13A / 28V DC
    Contact resistance 100MΩ
    AC contacts rating @R 30A / 250V AC
    Contact current max. 30A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 1.2W
    Relay series S25
