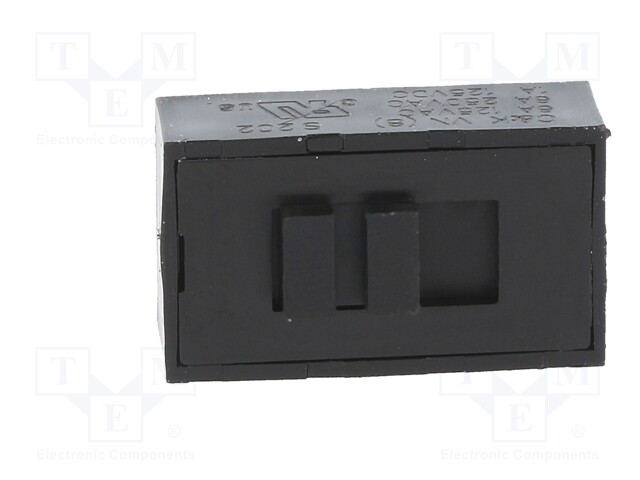

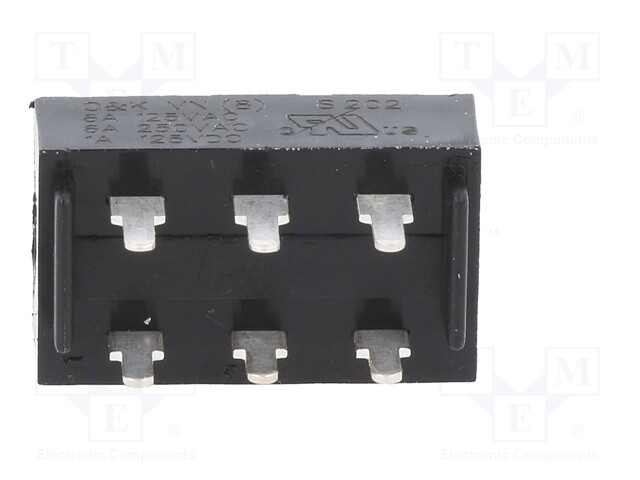

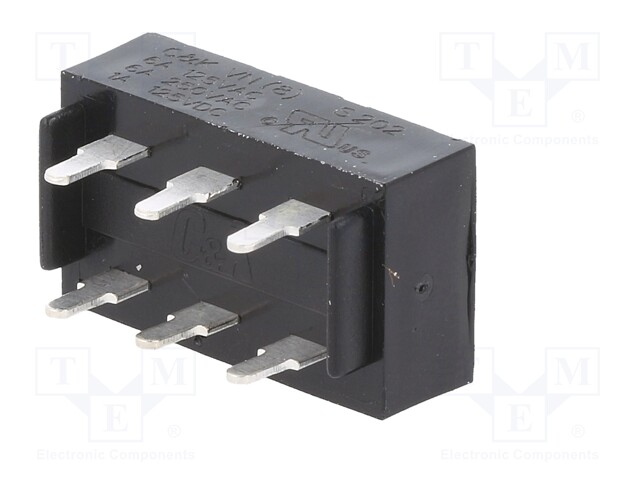

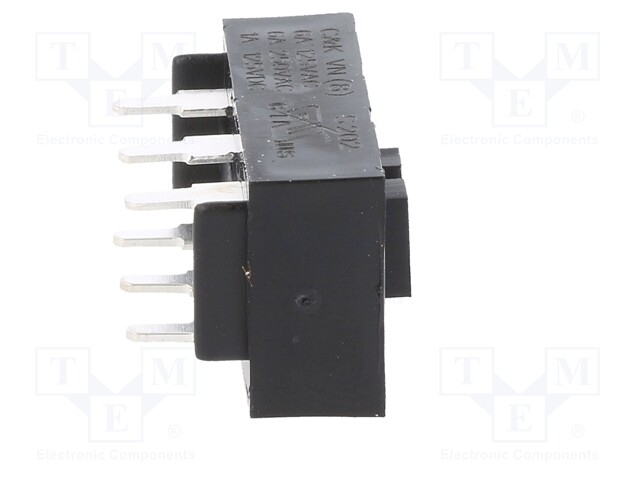

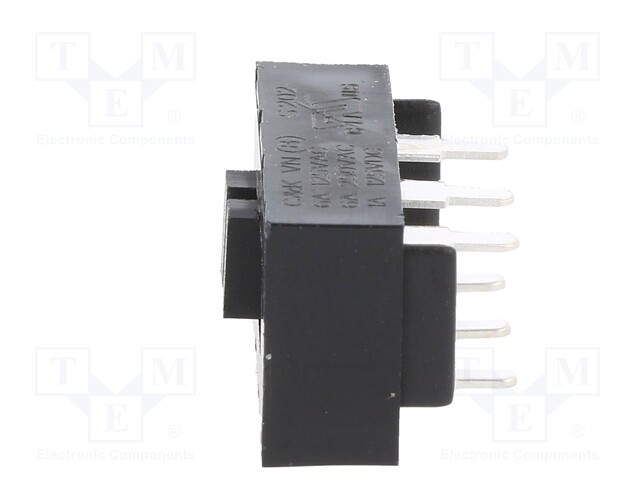

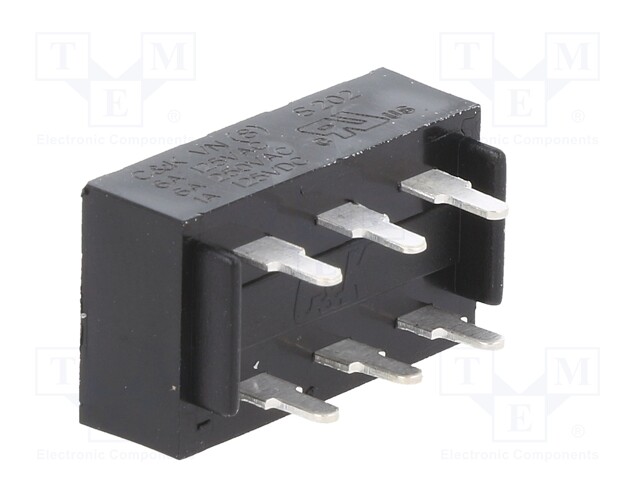

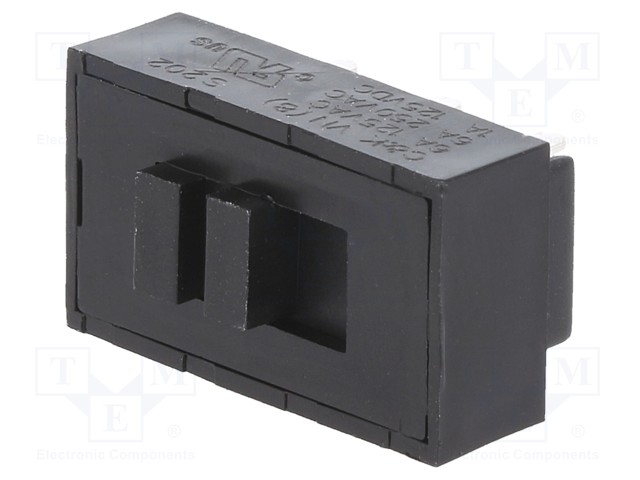

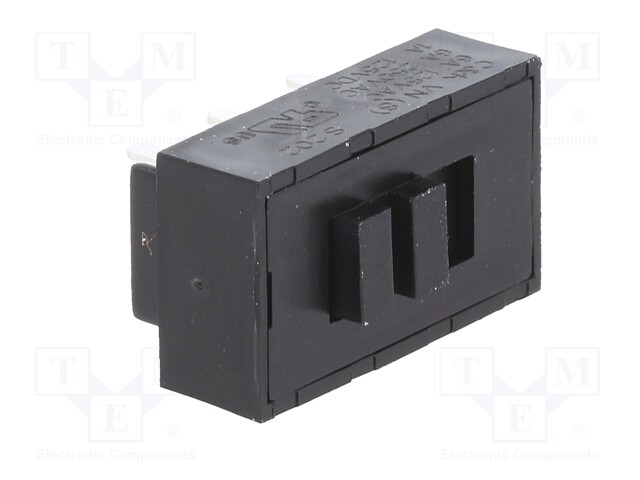

Switch: slide; Pos: 2; DPDT; 6A/250VAC; 1A/125VDC; ON-ON; -30÷65°C

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: S202131MS02Q
    Manufacturer: C&K
    Manufacturer code: S202131MS02Q
    • Mounting
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance:
    • Body dimensions
    • Min. insulation resistance
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number

    5.70 € 5.70 € (wo VAT) 5.7 EUR

    5.70 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: slide; Pos: 2; DPDT; 6A/250VAC; 1A/125VDC; ON-ON; -30÷65°C

    Mounting THT
    Operating temperature -30...65°C
    Type of switch slide
    Contact plating silver plated
    Number of positions 2
    Leads for PCB
    Contact material copper
    Max. contact resistance: 10mΩ
    Body dimensions 22.99x13.46x7.11mm
    Min. insulation resistance 1GΩ
    Electrical life 10000cycles
    Contacts configuration DPDT
    DC contacts rating @R 1A / 125V DC
    AC contacts rating @R 6A / 250V AC
    Switching method ON-ON
    Stable positions number 2
