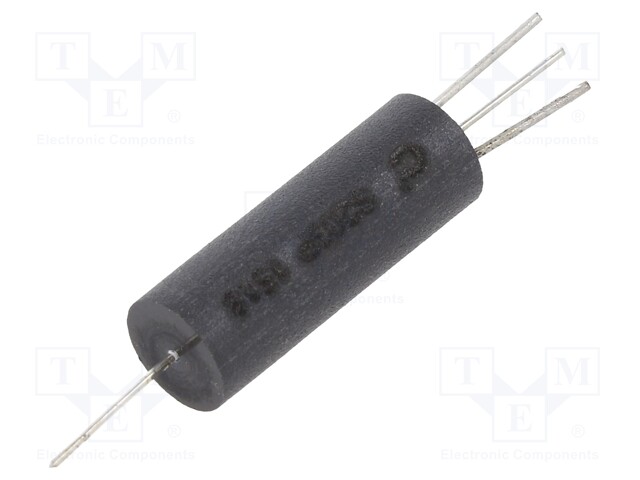

Relay: reed; SPST-NO; Ucoil: 3VDC; 1A; max.200VDC; max.200VAC; 10W

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: S2-03P
    Manufacturer: SENSATA/CYNERGY3
    Manufacturer code: S2-03P
    • Mounting
    • Operating temperature
    • Switched voltage
    • Switched voltage
    • Min. insulation resistance
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact current max.
    • Type of relay
    • Operate time

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: reed; SPST-NO; Ucoil: 3VDC; 1A; max.200VDC; max.200VAC; 10W

    Mounting PCB
    Operating temperature -40...85°C
    Switched voltage max. 200V DC, max. 200V AC
    Min. insulation resistance 10000000MΩ
    Switching capacity 10W
    Coil resistance 250Ω
    Rated coil voltage 3V DC
    Contacts configuration SPST-NO
    Contact current max. 1A
    Type of relay reed
    Operate time 100µs
