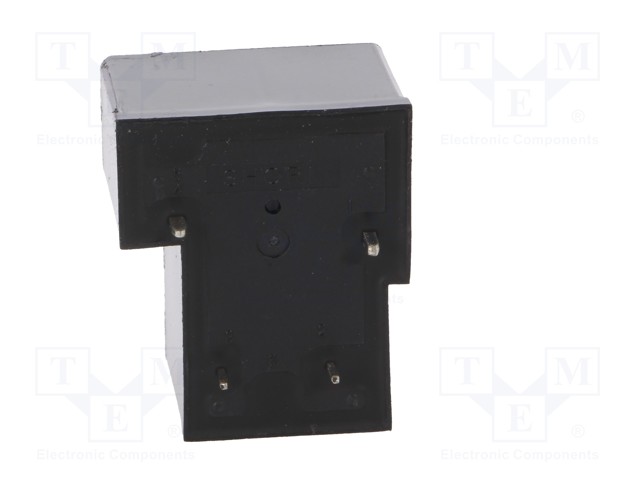

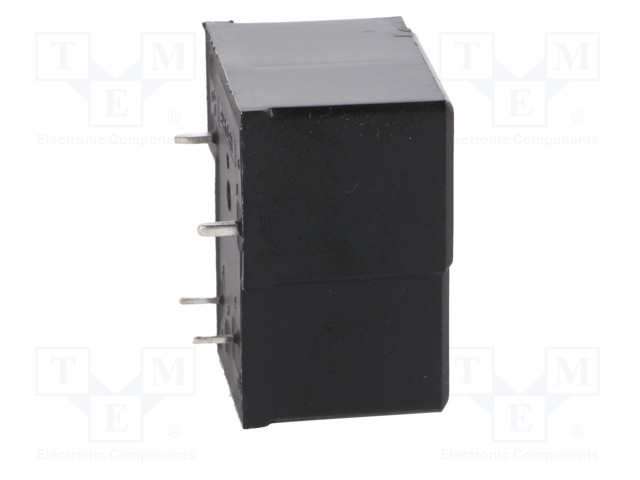

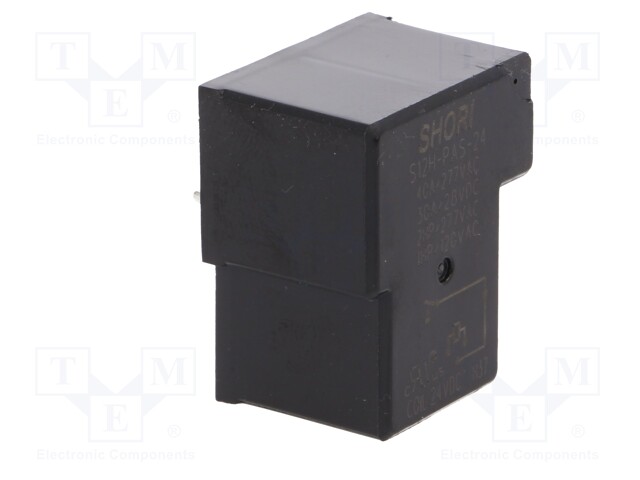

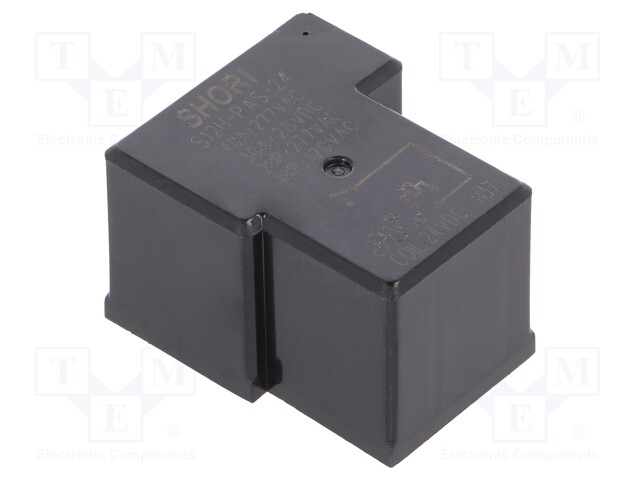

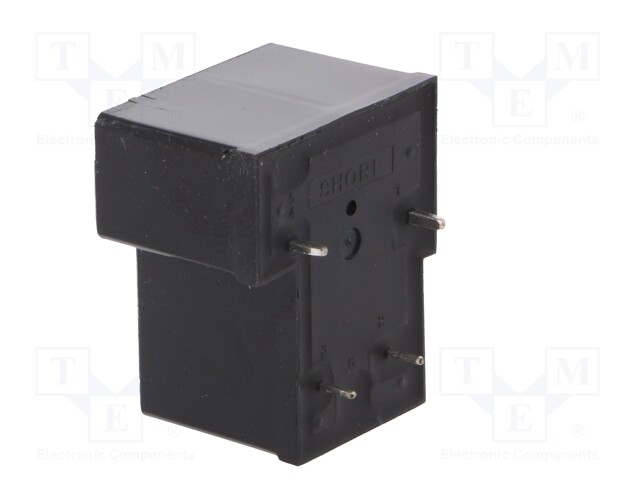

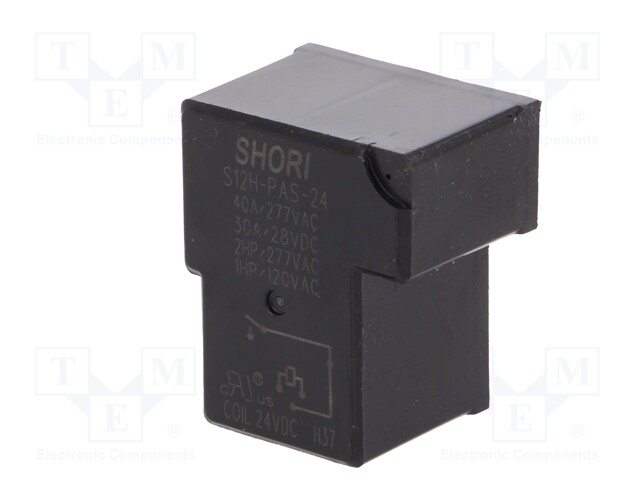

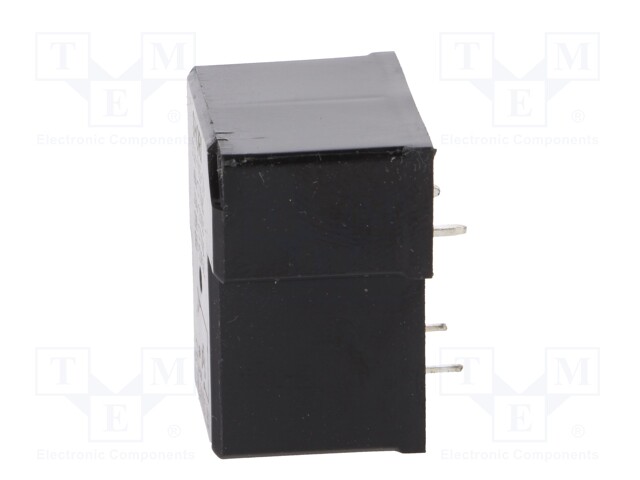

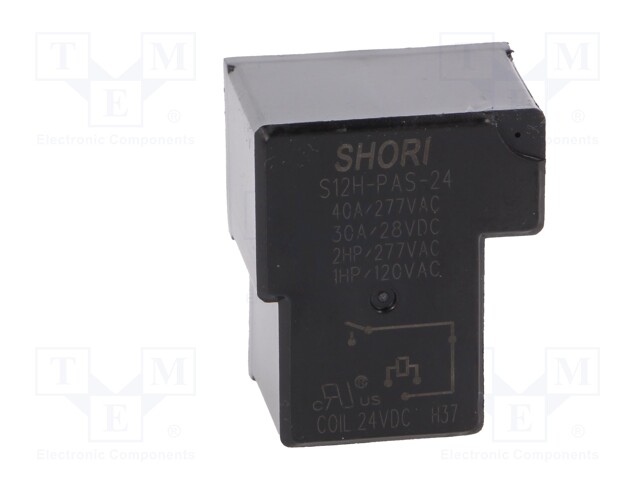

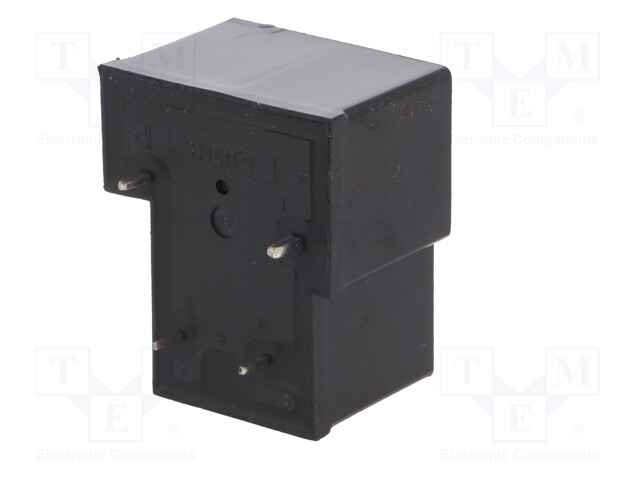

Relay: electromagnetic; SPST-NC; Ucoil: 24VDC; Icontacts max: 40A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: S12H-PAS-24
    Manufacturer: SHORI ELECTRIC
    Manufacturer code: S12H-PAS-24
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time
    • Coil current

    3.00 € 3.00 € (wo VAT) 3.0 EUR

    3.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NC; Ucoil: 24VDC; Icontacts max: 40A

    Mounting PCB
    Operating temperature -30...85°C
    Leads terminal PCB
    Contact material silver alloy
    Body dimensions 19.5x26.8x31.9mm
    Mechanical durability 10000000cycles
    Electrical life 10000cycles
    Coil resistance 660Ω
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    Contact resistance 50mΩ
    Contact current max. 40A
    Relay variant power
    Type of relay electromagnetic
    Coil power consumption 930mW
    Relay series S12H
    Operate time 15ms
    Release time 10ms
    Coil current 36mA
