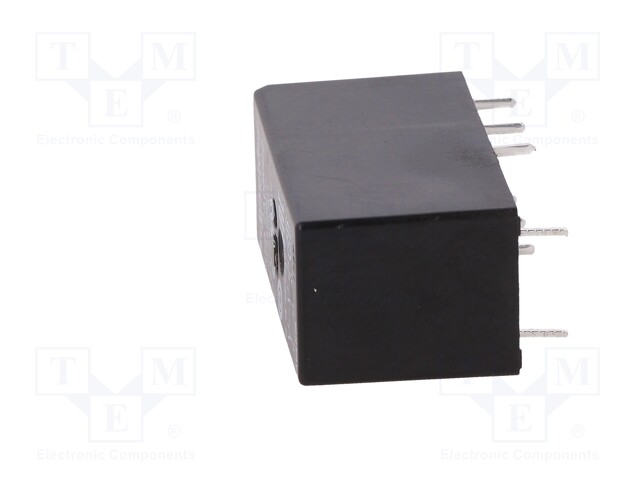

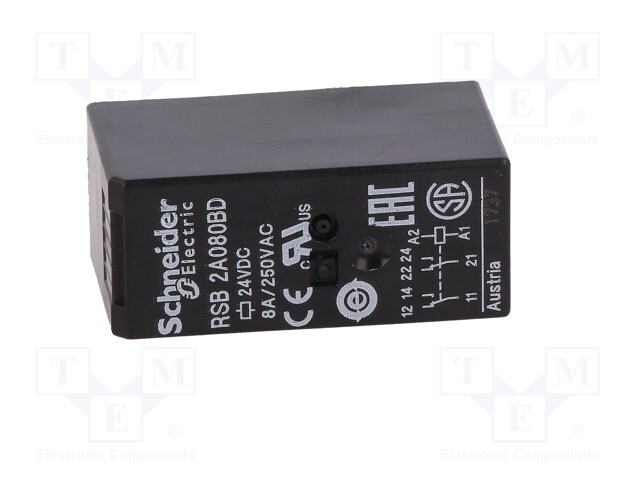

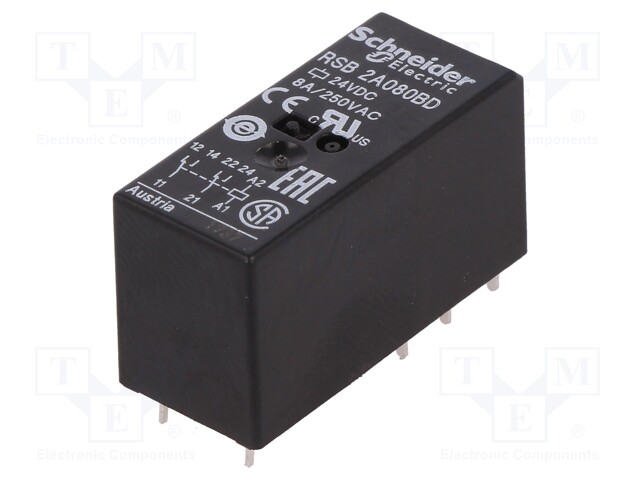

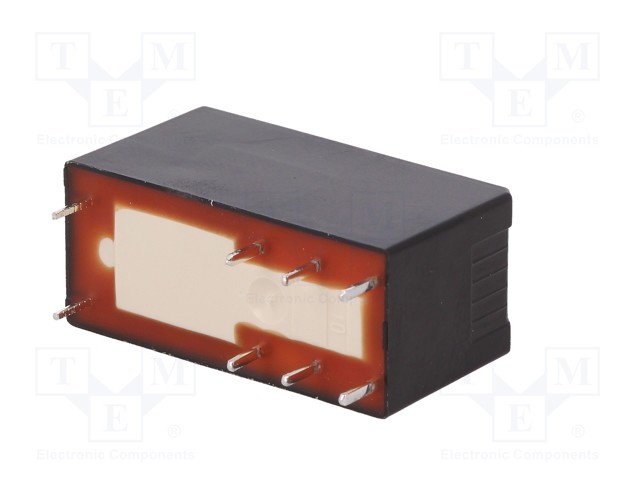

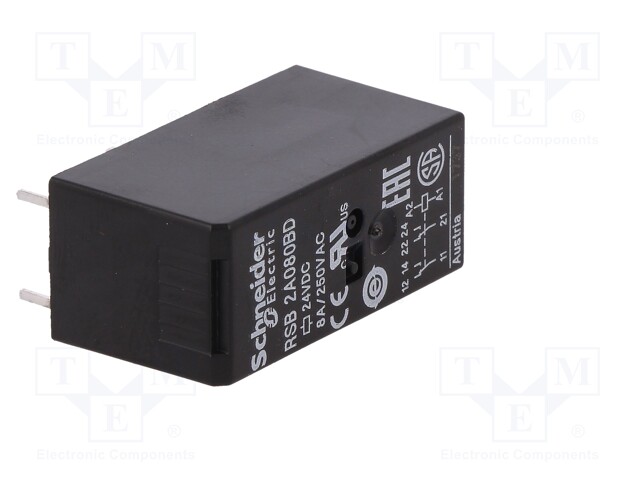

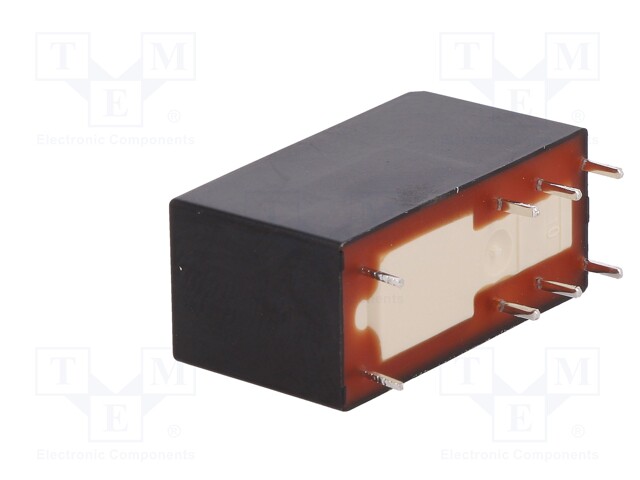

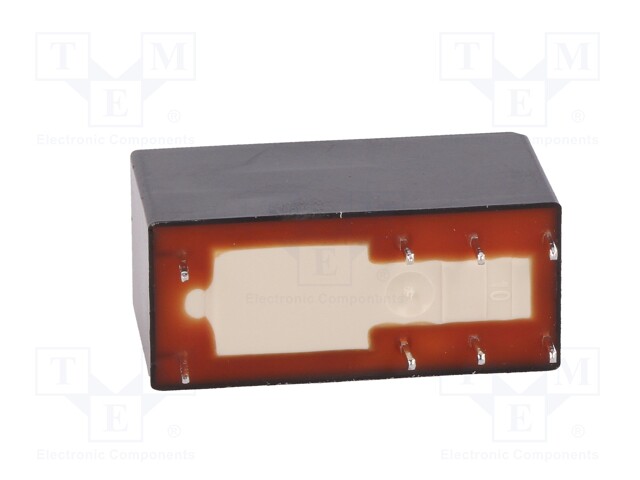

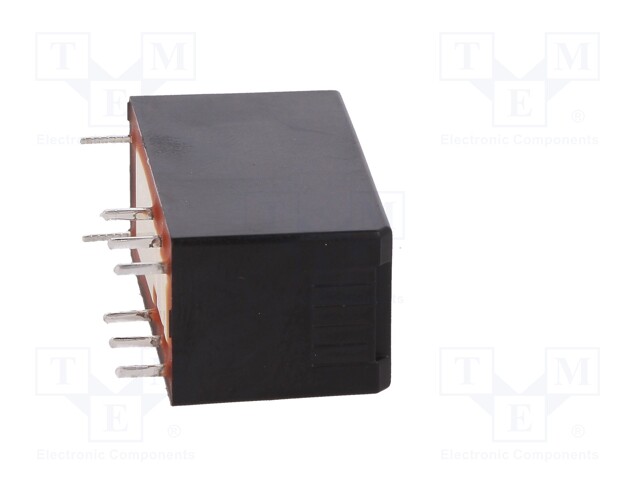

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 8A/250VAC; 8A/28VDC; 8A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RSB2A080BD
    Manufacturer: SCHNEIDER ELECTRIC
    Manufacturer code: RSB2A080BD
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series

    5.85 € 5.85 € (wo VAT) 5.8500000000000005 EUR

    5.85 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; DPDT; Ucoil: 24VDC; 8A/250VAC; 8A/28VDC; 8A

    Mounting socket
    Operating temperature -40...85°C
    Contact material AgNi
    Terminal pitch 5mm
    Body dimensions 29x15.7x12.5mm
    Switched voltage max. 250V AC, max. 250V DC
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    DC contacts rating @R 8A / 28V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 450mW
    Relay series RSB
