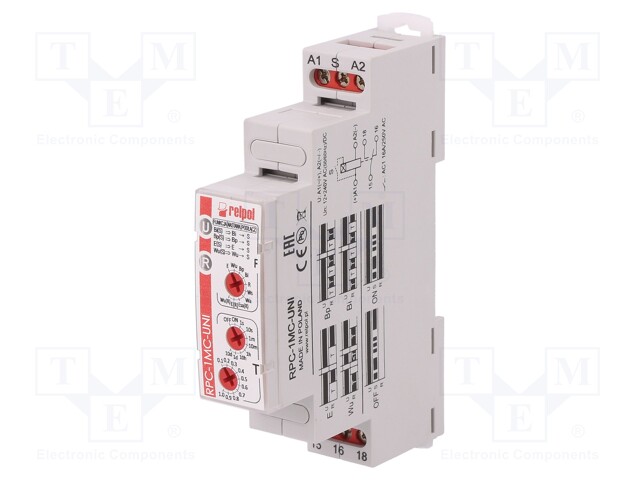

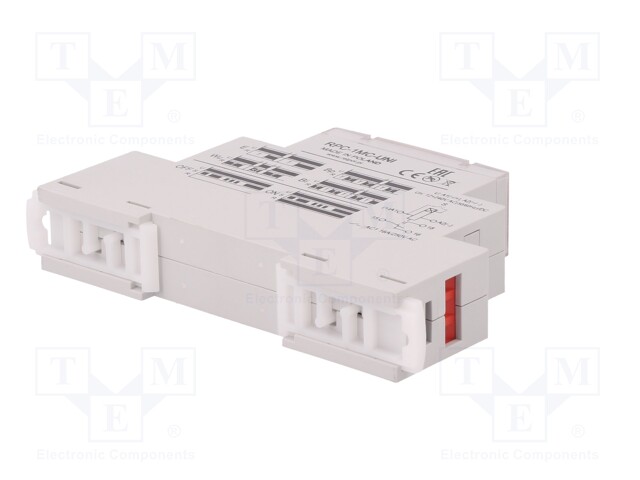

Timer; 1s÷10days; SPDT; 24VDC/16A,250VAC/16A; 12÷240VAC; DIN; IP20
Multiples:
1.0
Minimum quantity:
1.0
Product code:
RPC-1MC-UNI
Manufacturer: RELPOL
Manufacturer code: RPC-1MC-UNI
Product downloads
Specification for Timer; 1s÷10days; SPDT; 24VDC/16A,250VAC/16A; 12÷240VAC; DIN; IP20
Mounting | for DIN rail mounting |
Supply voltage | 12...240V AC |
Operating temperature | -20...50°C |
IP rating | IP20 |
Number of pins | 6 |
Type of module | timer |
Body dimensions | 90x17.5x64.6mm |
Kind of output | SPDT |
Indication | LED |
Electrical connection | screw terminals |
Counting range | 1s...10days |
Counter operation modes | activation for the set time triggered by the closing of the S contact, activation for the set time triggered by the opening of the S contact, delayed switch-off controlled by contact S, delayed switching on, delayed switching on and off controlled by contact S with RESET function, delayed switching on with stopping the timing with the contact S, delayed switching on with the RESET function, ON for the set interval, switching on for the set time with RESET function, switching on for the set time with stopping the timing by closing contact S, symmetrical cyclical operation pause first, symmetrical cyclical operation pulse first, symmetrical cyclical operation starting from switching on with stopping the T time measurement for the duration of contact S, symmetrical cyclical work starting from the interval with stopping the timing T for the duration of contact S |
Relay series | RPC |
number of operation modes | 14 |
OEM number | 863216 |
The additional control inputs | RESET, STOP |
