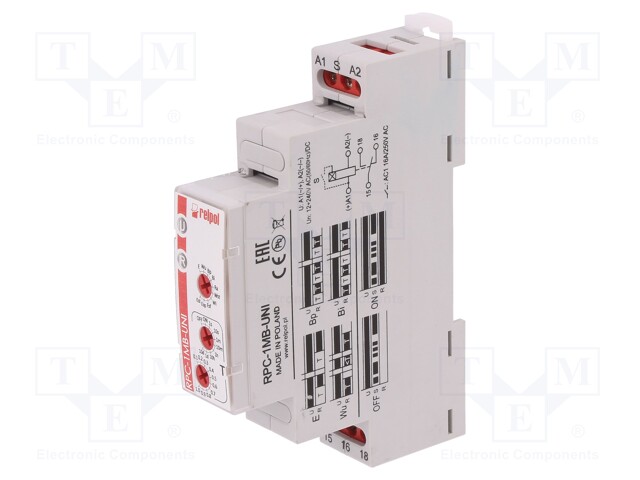

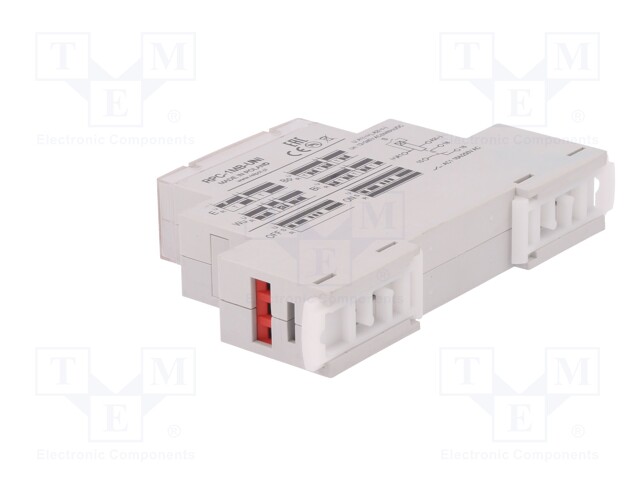

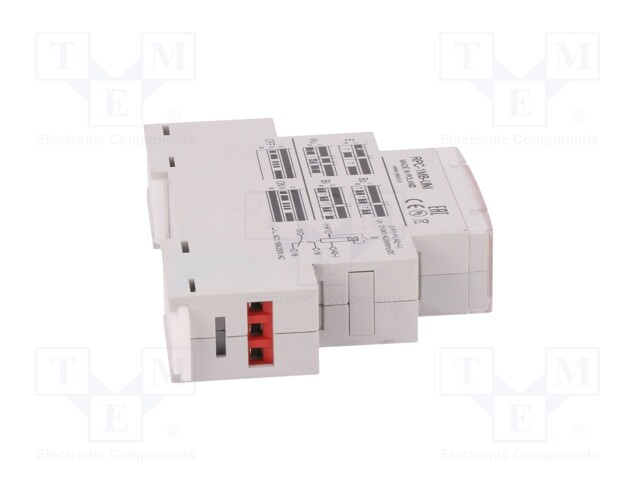

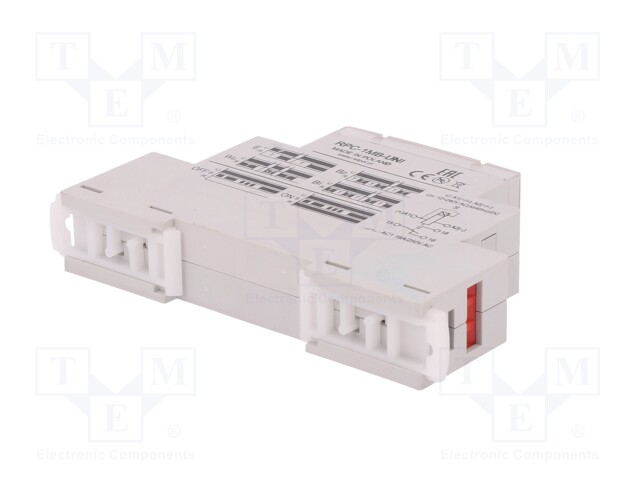

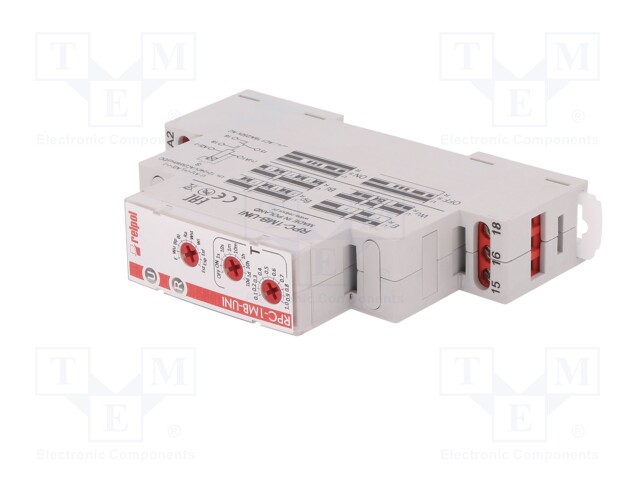

Timer; 1s÷10days; SPDT; 24VDC/16A,250VAC/16A; 12÷240VAC; DIN; IP20
Multiples:
1.0
Minimum quantity:
1.0
Product code:
RPC-1MB-UNI
Manufacturer: RELPOL
Manufacturer code: RPC-1MB-UNI
Product downloads
Specification for Timer; 1s÷10days; SPDT; 24VDC/16A,250VAC/16A; 12÷240VAC; DIN; IP20
| Mounting | for DIN rail mounting |
| Supply voltage | 12...240V AC, 12...240V DC |
| Operating temperature | -20...50°C |
| IP rating | IP20 |
| Number of pins | 6 |
| Type of module | timer |
| Body dimensions | 90x17.5x64.6mm |
| Kind of output | SPDT |
| Indication | LED |
| Electrical connection | screw terminals |
| Counting range | 1s...10days |
| Counter operation modes | activation for the set time triggered by the closing of the S contact, activation for the set time, triggered by the closing of the S contact with the extension, delayed activation - 1 cycle, released by closing contact S, delayed activation triggered by closing contact S with an extension, delayed shutdown without time extension, delayed switching controlled by contact S without extension, delayed switching on, ON for the set interval, symmetrical cyclical operation pause first, symmetrical cyclical operation pulse first |
| Relay series | RPC |
| number of operation modes | 10 |
| OEM number | 863182 |
| The additional control inputs | STOP |
