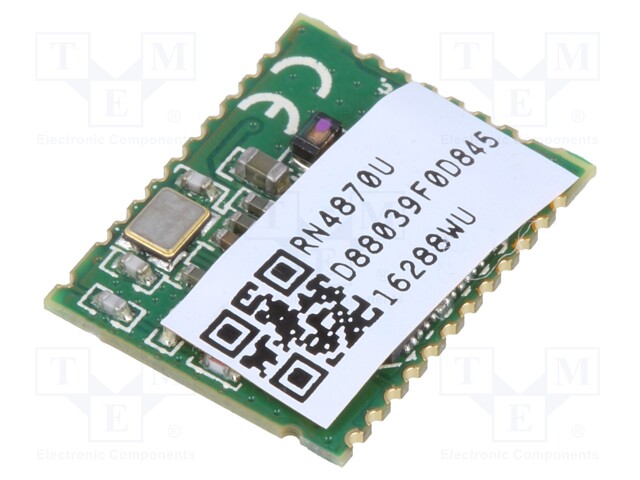

Module: Bluetooth Low Energy; GPIO,PWM,UART; SMD; 12x15mm; 10kbps

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RN4870U-V/RM118
    Manufacturer: MICROCHIP TECHNOLOGY
    Manufacturer code: RN4870U-V/RM118
    • Mounting
    • Supply voltage
    • Operating temperature
    • Interface
    • Interface
    • Interface
    • Dimensions
    • Frequency
    • Ciphering
    • Type of communications module
    • Communictions protocol
    • Communictions protocol
    • Communications modules features
    • Receiver sensitivity
    • Standard
    • Standard
    • Transmitter output power
    • Transmission rate
    • Supply current range
    • Number of terminals

    15.06 € 15.06 € (wo VAT) 15.06 EUR

    15.06 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Module: Bluetooth Low Energy; GPIO,PWM,UART; SMD; 12x15mm; 10kbps

    Mounting SMD
    Supply voltage 1.9...3.6V DC
    Operating temperature -20...70°C
    Interface GPIO, PWM, UART
    Dimensions 12x15mm
    Frequency 2.402...2.48GHz
    Ciphering AES128
    Type of communications module Bluetooth Low Energy
    Communictions protocol Bluetooth® 5, Bluetooth Low Energy
    Communications modules features antenna connector
    Receiver sensitivity -90dBm
    Standard 4.2, 5.0
    Transmitter output power 0dBm
    Transmission rate 10kbps
    Supply current range 1...13mA
    Number of terminals 30
